CT210-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

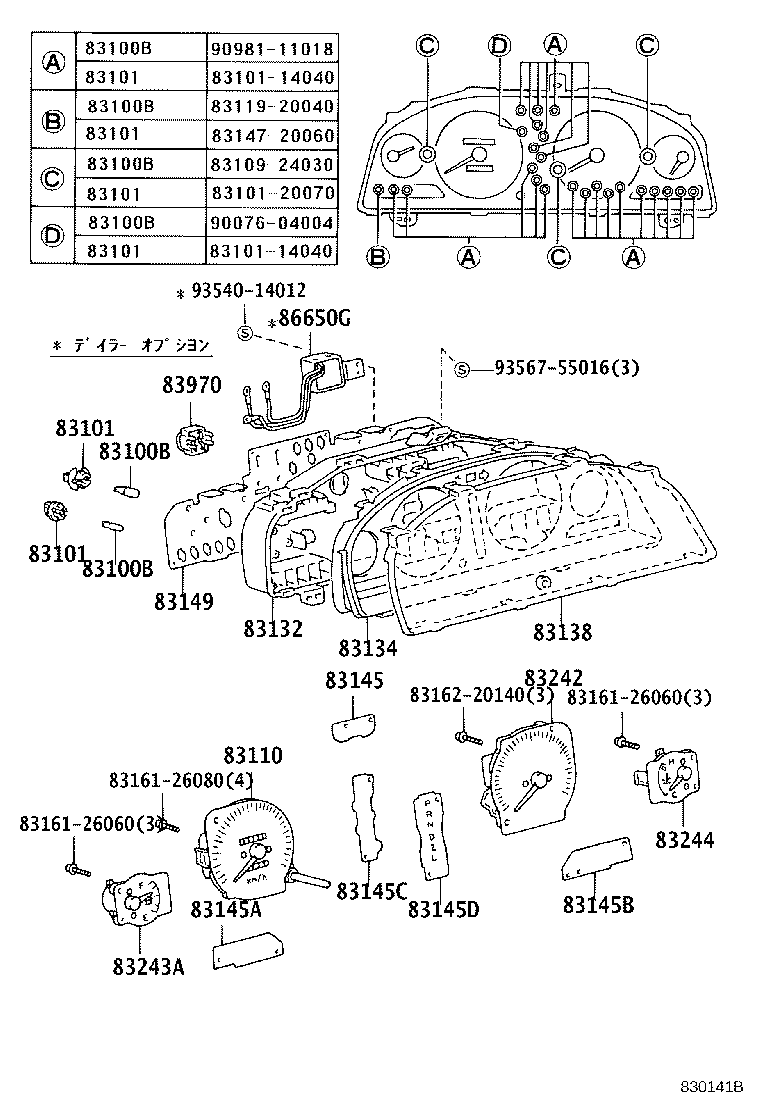

ILLUST NO. 1 OF 2(9601-9712)

Click highlighted areas on diagram

diagram 83100B 83100B 83101 83101 83110 83132 83134 83138 83145 83145A 83145B 83145C 83145D 83149 8316126060 8316126060 8316126080 8316220140 83242 83243A 83244 83970 86650G 9354014012 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90076-04004

AT21#,CT21#,ST21#

14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
83109-24030

AT21#,CT21#,ST21#

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 3
83119-20040

AT21#,CT21#,ST21#

12V 3.0W

 1
90981-11018

CT21#,ST215..MTM

12V 1.2W ｿｹｯﾄ無し

 12
83100B - BULB, COMBINATION METER, NO.1
90076-04004

AT21#,CT21#,ST21#

14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
83109-24030

AT21#,CT21#,ST21#

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 3
83119-20040

AT21#,CT21#,ST21#

12V 3.0W

 1
90981-11018

CT21#,ST215..MTM

12V 1.2W ｿｹｯﾄ無し

 12
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83147-20060

AT21#,CT21#,ST21#

12V 3.0W

 1
83101-14040

CT21#,ST215..MTM

12V 1.4W

 13
83101-20070

AT21#,CT21#,ST21#

12V 3.4W W/GREEN CAP

 3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83147-20060

AT21#,CT21#,ST21#

12V 3.0W

 1
83101-14040

CT21#,ST215..MTM

12V 1.4W

 13
83101-20070

AT21#,CT21#,ST21#

12V 3.4W W/GREEN CAP

 3
83110 - SPEEDOMETER ASSY
83220-20030

AT21#,CT21#,ST21#

 1
83132 - CASE, COMBINATION METER
83841-20130

AT21#,CT21#,ST21#

 1
83134 - COVER, COMBINATION METER, NO.1
83821-20130

AT21#,CT21#,ST215..MTM

 1
83138 - GLASS, SPEEDOMETER
83852-20130

AT21#,CT21#,ST21#

 1
83145 - LENS, METER, NO.1
83831-20130

AT21#,CT21#,ST21#

 1
83145A - LENS, METER, NO.2
83831-20180

CT21#

 1
83145B - LENS, METER, NO.3
83832-20180

CT210,211,215

 1
83149 - PLATE, METER CIRCUIT
83861-20130

AT21#,CT21#,ST215..MTM

 1
83242 - TACHOMETER ASSY, ENGINE
83881-20180

CT21#

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83882-20130

AT21#,CT21#,ST21#

 1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83883-20130

AT21#,CT21#,ST21#

 1
86650G - BUZZER ASSY
86650-12030

AT21#,CT21#,ST21#

 1
Common parts
83161-26060
83161-26080
83162-20140
93540-14012
93567-55016

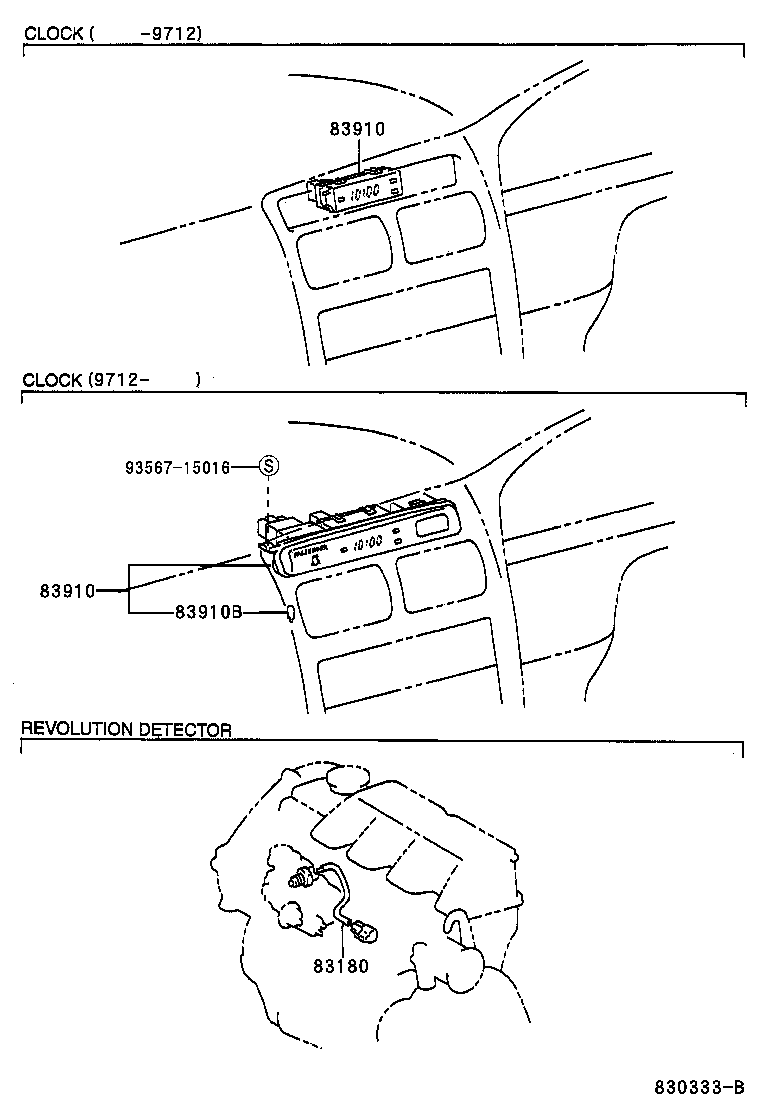

ILLUST NO. 2 OF 2(9601- )

Click highlighted areas on diagram

diagram 83180 83910 83910 83910B 9356715016
Part # Description Qty Price
83180 - DETECTOR ASSY, REVOLUTION
83180-32020

CT21#

 1
83910 - CLOCK ASSY
83910-20720

AT21#,CT21#,ST21#

 1
83910 - CLOCK ASSY
83910-20720

AT21#,CT21#,ST21#

 1
Common parts
93567-15016
