CT210-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)CT21#

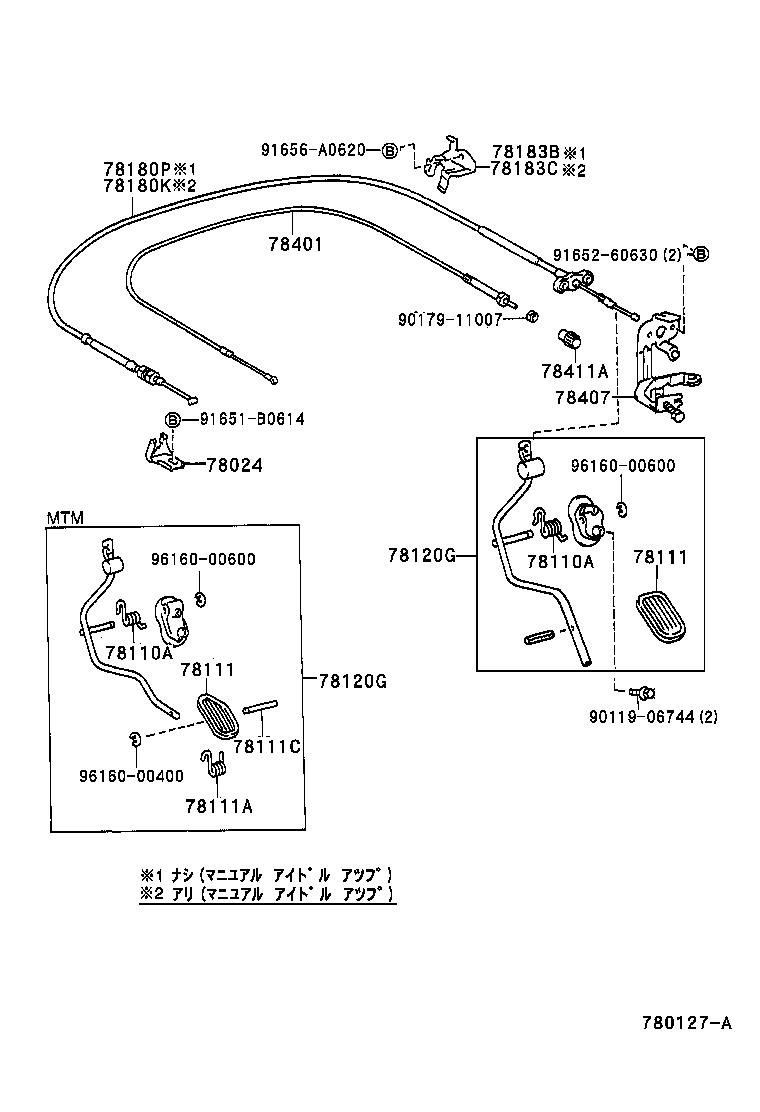

Click highlighted areas on diagram

diagram 78024 78110A 78110A 78111 78111 78111A 78111C 78120G 78120G 78180K 78180P 78183B 78183C 78401 78407 78411A 9011906744 9017911007 91651B0614 9165260630 91656A0620 9616000400 9616000600 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32140

CT21#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

CT210,215,ST215..MTM

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

CT210,215,ST215..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-20050

CT21#..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-20050

CT21#..MTM

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

CT21#..MTM

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CT21#..MTM

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20710

CT21#..MTM

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20710

CT21#..MTM

 1
78180K - CABLE ASSY, ACCELERATOR CONTROL
78180-2D560

CT21#..MTM

ｱﾘ(ﾏﾆﾕｱﾙ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2D550

CT21#..MTM

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

CT211..ATM;AT21#,CT210,215,216,ST21#..EFI,TD,TDEFI

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

CT21#..MTM

ｱﾘ(ﾏﾆﾕｱﾙ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
78401 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-20050

CT21#..MTM

ｱﾘ(ﾏﾆﾕｱﾙ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
78407 - ARM SUB-ASSY, THROTTLE CONTROL
78407-20051

CT21#..MTM

ｱﾘ(ﾏﾆﾕｱﾙ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

CT21#..MTM

ｱﾘ(ﾏﾆﾕｱﾙ ｱｲﾄﾞﾙ ｱﾂﾌﾟ)

 1
Common parts
90119-06744
90179-11007
91651-B0614
91652-60630
91656-A0620
96160-00400
96160-00600
