CT210-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

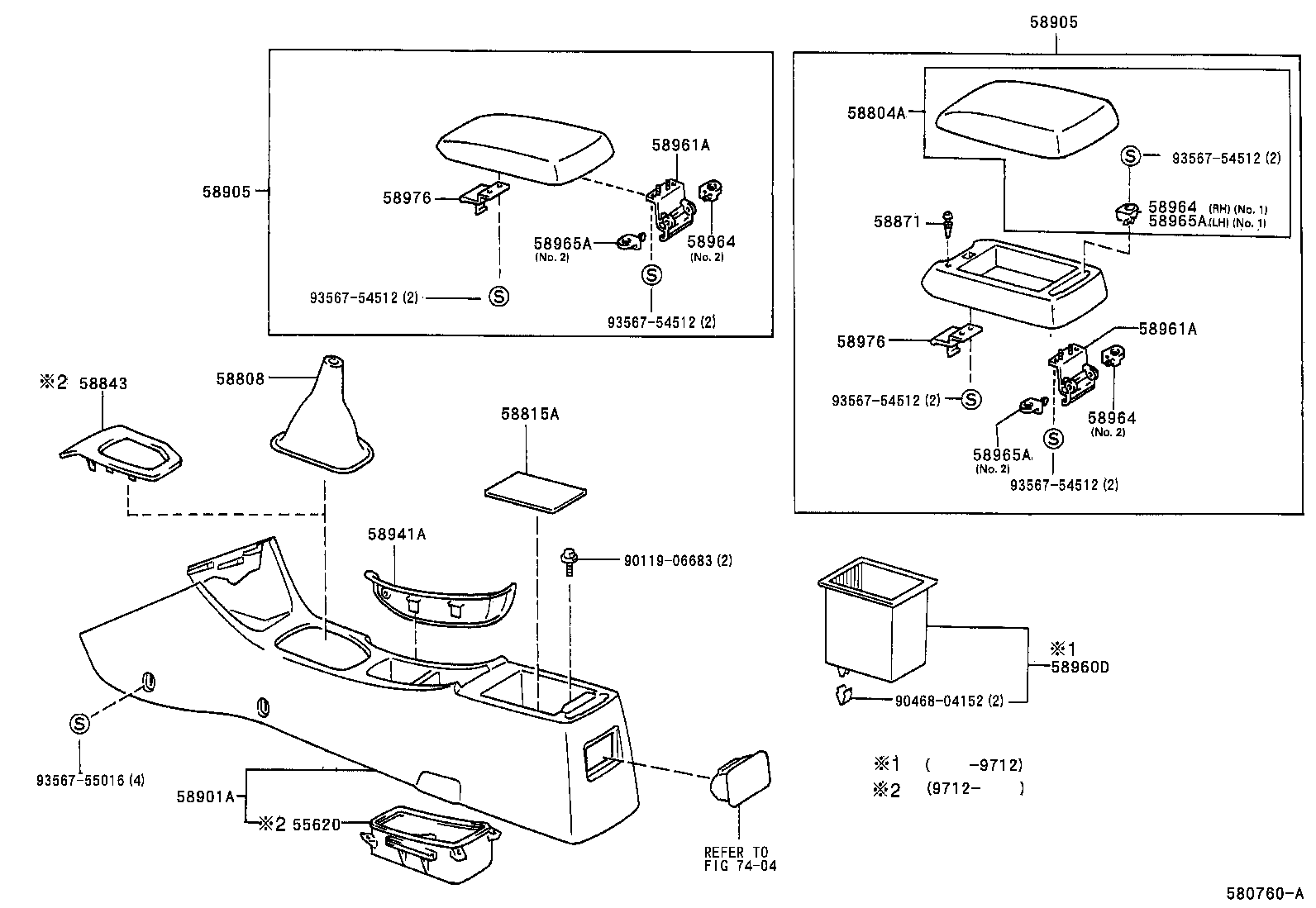

Click highlighted areas on diagram

diagram 55620 58804A 58808 58815A 58843 58871 58901A 58905 58905 58941A 58960D 58961A 58961A 58964 58964 58964 58965A 58965A 58965A 58976 58976 7404 9011906683 9046804152 9356754512 9356754512 9356754512 9356754512 9356754512 9356755016
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-20130C0

AT21#,CT21#,ST215..MTM

BLACK,TRIM1#,4#

 1
58815A - CARPET, CONSOLE BOX
58815-21010

AT21#,CT21#,ST21#

 1
58815-20060

AT21#,CT21#,ST21#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-20140E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
58901-20140B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 1
58901-20140B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20250B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
58905-20250E0

AT21#,CT21#,ST215

ANTELOPE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20250B0

AT21#,CT21#,ST215

SHADOW GRAY,TRIM1#

 1
58905-20250E0

AT21#,CT21#,ST215

ANTELOPE,TRIM4#

 1
58941A - COVER, PARKING BRAKE HOLE
58904-20050B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
58904-20050B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 1
58904-20050E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-20030

AT21#,CT21#,ST21#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-20030

AT21#,CT21#,ST21#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#,NO.2

 1
58964-20030C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#,NO.2

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#,NO.2

 1
58964-20030C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#,NO.2

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#,NO.2

 1
58964-20030C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#,NO.2

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#,NO.2

 1
58965-20040C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#,NO.2

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#,NO.2

 1
58965-20040C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#,NO.2

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#,NO.2

 1
58965-20040C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#,NO.2

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT21#,CT21#,ST21#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT21#,CT21#,ST21#

 1
Common parts
90119-06683
90468-04152
93567-54512
93567-55016
Linked diagrams
7404
