CT210-AEMMX (1996)
Toyota Corona

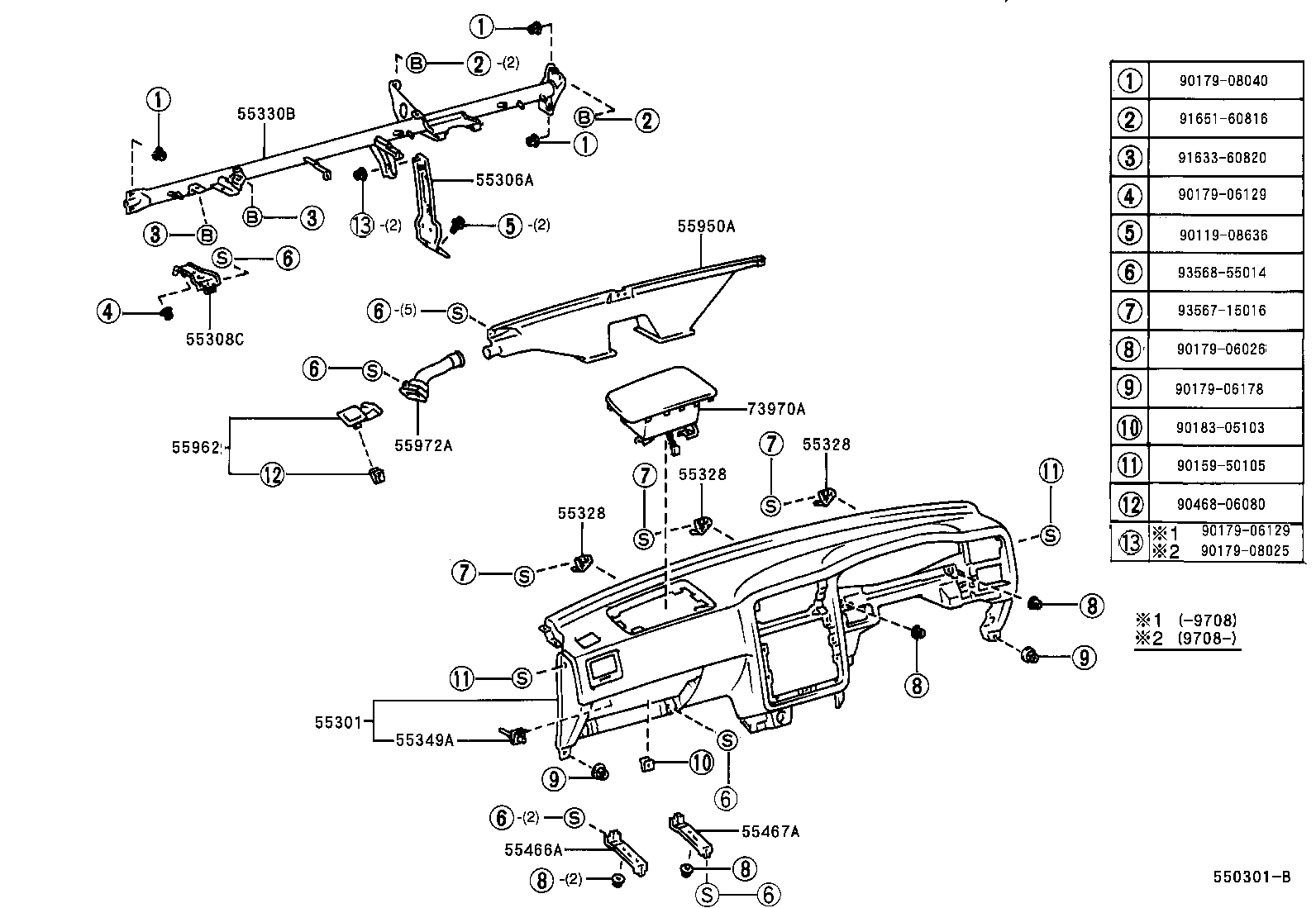

ILLUST NO. 1 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-20360B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55311-20410B0 |
AT21#,CT21#,ST21# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 55311-20360E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55311-20420E0 |
AT21#,CT21#,ST21# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｺﾝﾗｲﾄ),ANTELOPE,TRIM4# |
1 | ||
| 55311-20430E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55311-20410E0 |
AT21#,CT21#,ST21# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),ANTELOPE,TRIM4# |
1 | ||
| 55311-20420B0 |
AT21#,CT21#,ST21# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｺﾝﾗｲﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 55311-20430B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-20260 |
AT21#,CT21#,ST21# |
1 | ||
| 55306-20290 |
AT21#,CT21#,ST21# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-20210 |
AT21#,CT21#,ST21# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20110 |
AT21#,CT21#,ST21# CENTER |
1 | ||
| 55328-20100 |
AT21#,CT21#,ST21# RH,LH |
2 | ||
| 55328-20100 |
AT210,CT21#,ST210 RH,LH |
2 | ||
| 55328-20110 |
AT210,CT21#,ST210 CENTER |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20110 |
AT21#,CT21#,ST21# CENTER |
1 | ||
| 55328-20100 |
AT21#,CT21#,ST21# RH,LH |
2 | ||
| 55328-20100 |
AT210,CT21#,ST210 RH,LH |
2 | ||
| 55328-20110 |
AT210,CT21#,ST210 CENTER |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20110 |
AT21#,CT21#,ST21# CENTER |
1 | ||
| 55328-20100 |
AT21#,CT21#,ST21# RH,LH |
2 | ||
| 55328-20100 |
AT210,CT21#,ST210 RH,LH |
2 | ||
| 55328-20110 |
AT210,CT21#,ST210 CENTER |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-20270 |
AT21#,CT21#,ST21# |
1 | ||
| 55330-20250 |
AT21#,CT21#,ST21# |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-20090 |
AT21#,CT21#,ST21# |
2 | ||
| 55349-20090 |
AT210,CT21#,ST210 |
2 | ||
| 55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55466-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 55467A - RETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55467-20120 |
AT21#,CT21#,ST21# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20160 |
AT21#,CT21#,ST21# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-20260E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55962-20260B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 55962-20260B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-20090 |
AT21#,CT21#,ST21# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-20030E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 73970-20030B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 73970-20030B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08636 | ||||
| 90159-50105 | ||||
| 90179-06026 | ||||
| 90179-06129 | ||||
| 90179-06178 | ||||
| 90179-08025 | ||||
| 90179-08040 | ||||
| 90183-05103 | ||||
| 90468-06080 | ||||
| 91633-60820 | ||||
| 91651-60816 | ||||
| 93567-15016 | ||||
| 93568-55014 | ||||

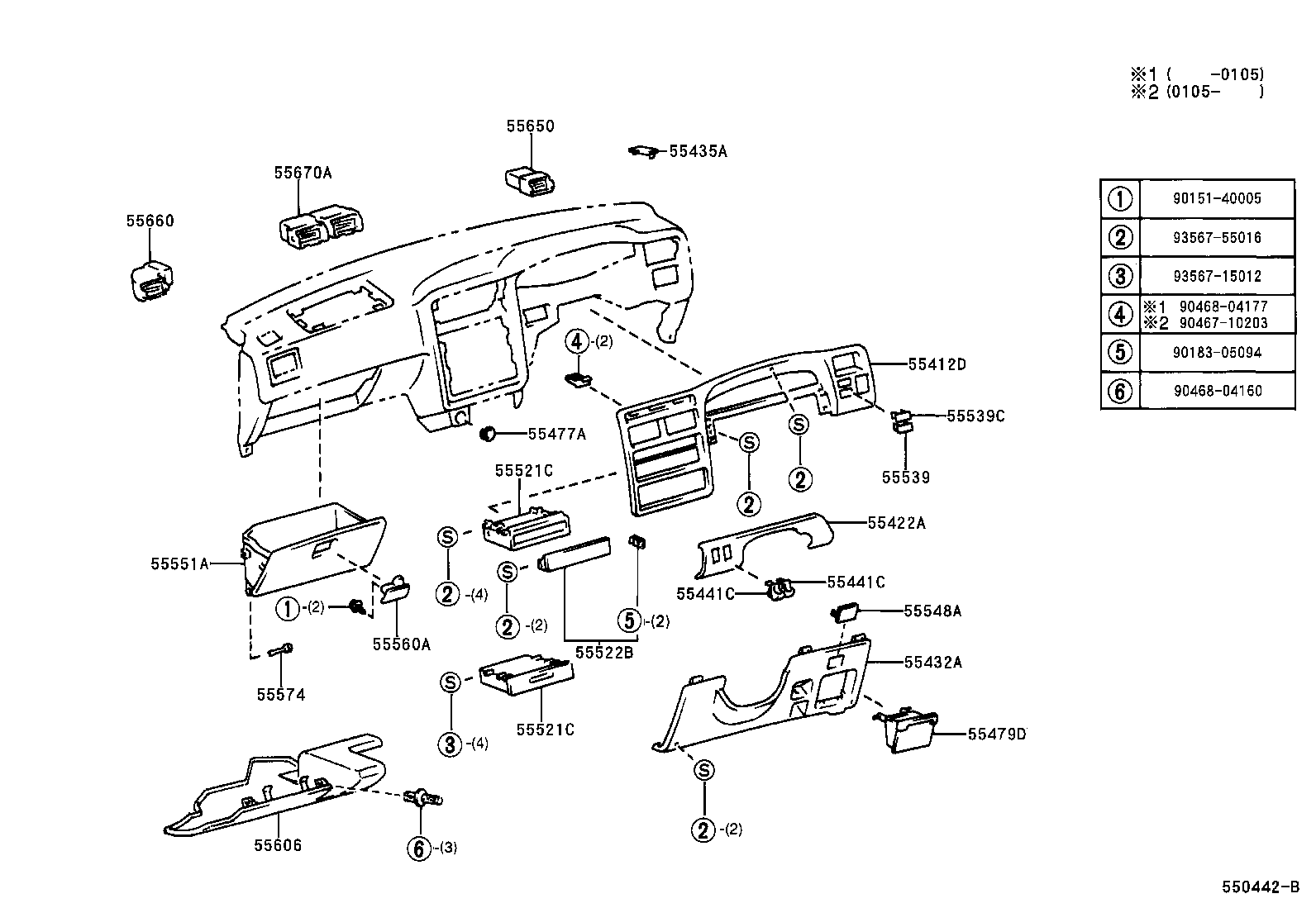

ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-20540 |
AT21#,CT21#,ST215 |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-20140 |
AT21#,CT21#,ST21# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-20350B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 55432-20350E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55432-20350B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-20170B0 |
AT21#,CT21#,ST215 SHADOW GRAY,TRIM1# |
1 | ||
| 55435-20170E0 |
AT21#,CT21#,ST215 ANTELOPE,TRIM4# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
2 | ||
| 55441-12130C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
2 | ||
| 55441-12130C0 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),BLACK,TRIM1#,4# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
2 | ||
| 55441-12130C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
2 | ||
| 55441-12130C0 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),BLACK,TRIM1#,4# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-32030 |
AT21#,CT21#,ST21# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-20100E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55479-20100B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 55479-20100B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 55521-16030 |
AT21#,CT21#,ST21# ﾅｼ(ﾗｼﾞｵ) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 55521-16030 |
AT21#,CT21#,ST21# ﾅｼ(ﾗｼﾞｵ) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-20240B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 55551-20240B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55551-20240E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12080P0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 55560-12080E1 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55560-12080P0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
AT21#,CT21#,ST21# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-20300 |
AT21#,CT21#,ST21# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-20250B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 55660-20250B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 55660-20250E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-20240 |
AT21#,CT21#,ST21# |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 93567-15012 | ||||
| 93567-55016 | ||||
