CT210-AEMMX (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)

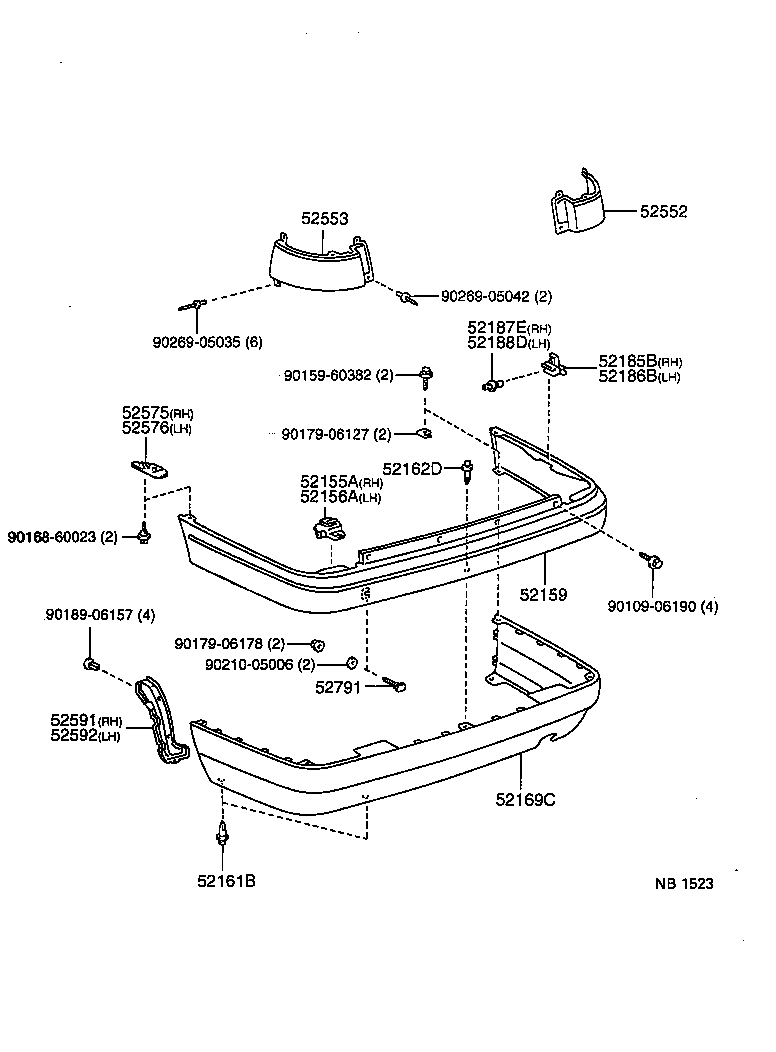

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52161B 52162D 52169C 52185B 52186B 52187E 52188D 52552 52553 52575 52576 52591 52592 52791 9010906190 9015960382 9016860023 9017906127 9017906178 9018906157 9021005006 9026905035 9026905042
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-20330

AT21#,CT21#,ST21#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-20220

AT21#,CT21#,ST21#

 1
52159 - COVER, REAR BUMPER
52159-20810E2

AT21#,CT21#,ST21#..EFI,TD

GRAYISH BROWN ME.,040 ,1A7 ,4N3

 1
52159-20810E1

AT21#,CT21#,ST21#..EFI,TD

DARK GRAY ME.,8L3

 1
52159-20810H0

AT21#,CT21#,ST21#..EFI,TD

MEDIUM GRAY ME.,3L3 ,6N0 ,6P2

 1
52159-20810E1

AT21#,CT21#,ST21#

DARK GRAY ME.,8L3

 1
52159-20810E2

AT21#,CT21#,ST21#

GRAYISH BROWN ME.,040 ,1A7 ,4N3

 1
52159-20800

AT210,CT21#

 1
52159-20810H0

AT21#,CT21#,ST21#

MEDIUM GRAY ME.,3L3 ,6N0 ,6P2

 1
52161B - PIECE, REAR BUMPER
52161-16010

AT21#,CT21#,ST21#

 4
52162D - PIECE, REAR BUMPER
52161-20010

AT21#,CT21#,ST21#

 3
52169C - COVER, REAR BUMPER, LOWER
52169-20040B0

AT21#,CT21#,ST21#..EFI,TD

SILVER PEARL ME.,1A7

 1
52169-20040E0

AT21#,CT21#,ST21#..EFI,TD

BEIGE M.M.,4N3

 1
52169-20040D0

AT21#,CT21#,ST21#..EFI,TD

MAGENTA MC.,3L3

 1
52169-20900

AT21#,CT21#,ST21#

 1
52169-20040A0

AT21#,CT21#,ST21#..EFI,TD

SUPER WHITE 2,040

 1
52169-20040G1

AT21#,CT21#,ST21#..EFI,TD

DK.GREEN M.M.,6P2

 1
52169-20040G0

AT21#,CT21#,ST21#..EFI,TD

GRAYISH GREEN M.M.,6N0

 1
52169-20040J0

AT21#,CT21#,ST21#..EFI,TD

DK.BLUE M.M.,8L3

 1
52169-20040B0

AT21#,CT21#,ST21#

SILVER PEARL ME.,1A7

 1
52169-20040G0

AT21#,CT21#,ST21#

GRAYISH GREEN M.M.,6N0

 1
52169-20040A0

AT21#,CT21#,ST21#

SUPER WHITE 2,040

 1
52169-20040G1

AT21#,CT21#,ST21#

DK.GREEN M.M.,6P2

 1
52169-20040J0

AT21#,CT21#,ST21#

DK.BLUE M.M.,8L3

 1
52169-20040E0

AT21#,CT21#,ST21#

BEIGE M.M.,4N3

 1
52169-20040D0

AT21#,CT21#,ST21#

MAGENTA MC.,3L3

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-20140

AT21#,CT21#,ST21#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-20140

AT21#,CT21#,ST21#

 1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070

AT21#,CT21#,ST21#

 1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-16070

AT21#,CT21#,ST21#

 1
52552 - FILLER, REAR BUMPER, RH
52552-20040

AT21#,CT21#,ST21#

 1
52553 - FILLER, REAR BUMPER, LH
52553-20040

AT21#,CT21#,ST21#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-20030

AT21#,CT21#,ST21#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-20030

AT21#,CT21#,ST21#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-20040

AT21#,CT21#,ST21#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-20020

AT21#,CT21#,ST21#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12010

AT21#,CT21#,ST21#

 2
Common parts
90109-06190
90159-60382
90168-60023
90179-06127
90179-06178
90189-06157
90210-05006
90269-05035
90269-05042
