CT190Y-AEPNS (1992)
Toyota Corona
(9211- )KYO

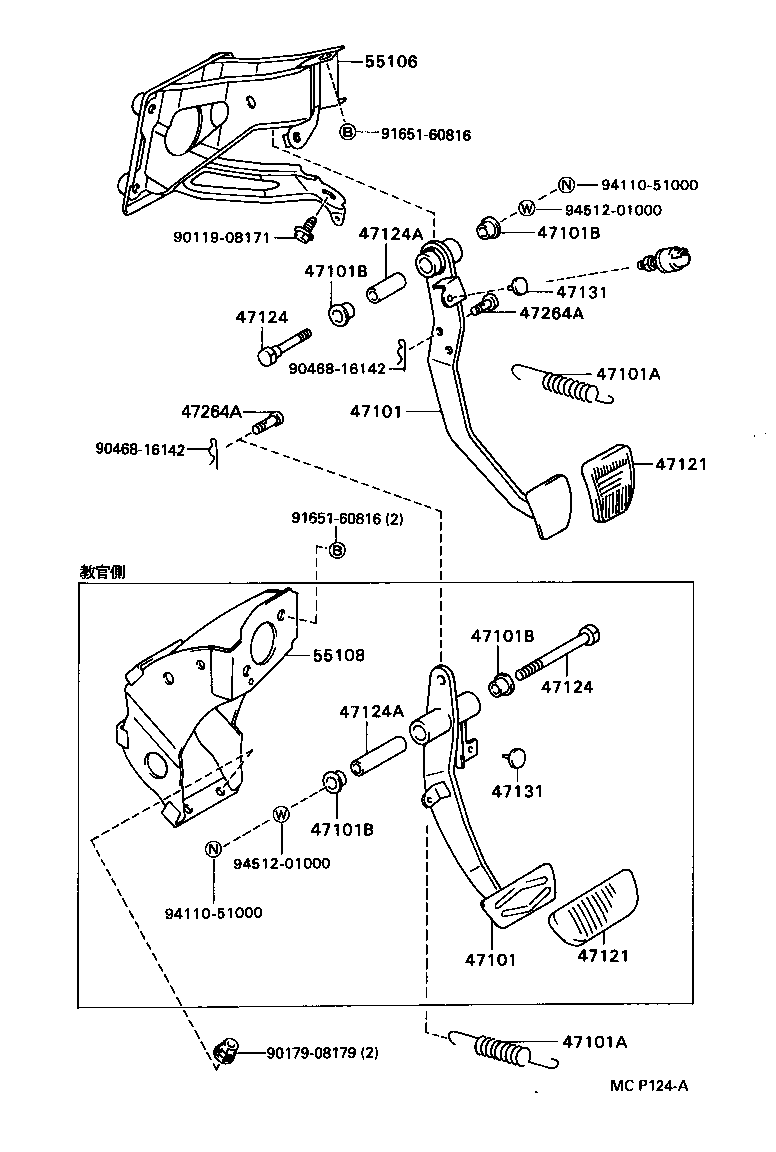

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-20510 |
CT190,ST190..KYO *42 |
1 | ||
| 47101-20460 |
AT190,CT190,ST19#..ATM |
1 | ||
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-20510 |
CT190,ST190..KYO *42 |
1 | ||
| 47101-20460 |
AT190,CT190,ST19#..ATM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90905-07002 |
AT190,CT19#,ST19# |
1 | ||
| 90507-14018 |
CT190,ST190..KYO *42 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90905-07002 |
AT190,CT19#,ST19# |
1 | ||
| 90507-14018 |
CT190,ST190..KYO *42 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
AT190,CT19#,ST19# |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
AT190,CT19#,ST19# |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
AT190,CT19#,ST19# |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
AT190,CT19#,ST19# |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-14010 |
CT190,ST190..MTM..KYO;AT190,CT190,ST19#..ATM *42 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-14010 |
CT190,ST190..MTM..KYO;AT190,CT190,ST19#..ATM *42 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10100 |
CT190,ST190..KYO *42 |
1 | ||
| 90101-10015 |
AT190,CT19#,ST19# |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10100 |
CT190,ST190..KYO *42 |
1 | ||
| 90101-10015 |
AT190,CT19#,ST19# |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
AT190,CT19#,ST19# |
1 | ||
| 90387-10002 |
CT190,ST190..KYO *42 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
AT190,CT19#,ST19# |
1 | ||
| 90387-10002 |
CT190,ST190..KYO *42 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
AT190,CT19#,ST19# |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
AT190,CT19#,ST19# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08051 |
CT190,ST190..KYO *42 |
1 | ||
| 47148-12020 |
AT190,CT19#,ST19# |
1 | ||
| 47148-12050 |
AT190,CT19#,ST19# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08051 |
CT190,ST190..KYO *42 |
1 | ||
| 47148-12020 |
AT190,CT19#,ST19# |
1 | ||
| 47148-12050 |
AT190,CT19#,ST19# |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-20350 |
AT190,CT19#,ST19# |
1 | ||
| 55108 - BRACKET SUB-ASSY, BRAKE PEDAL, NO.3 | ||||
| 55108-20040 |
CT190,ST190..KYO |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08179 | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
