CT190Y-AEPNS (1992)

Toyota Corona

Production Nov 1992 - Jan 1996
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9202-9305)AT190,CT190..ATM ; (9305- )CT190..ATM

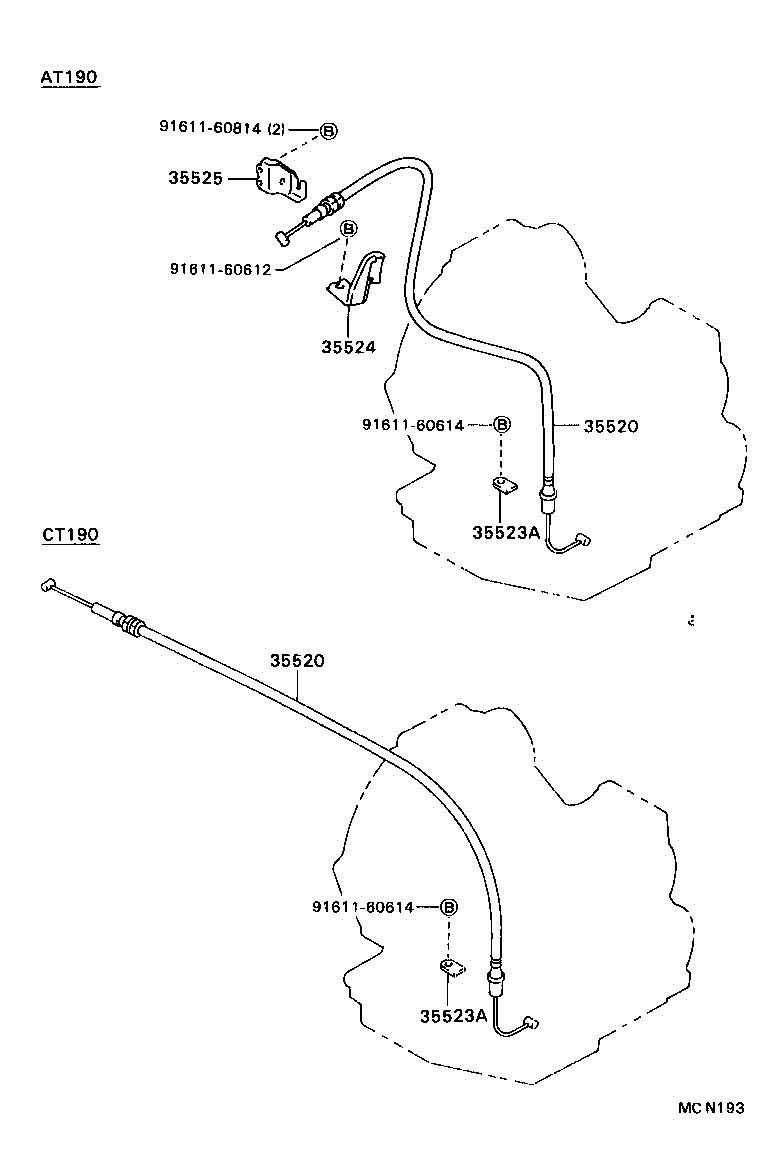

Click highlighted areas on diagram

A240E,A241L

diagram 35520 35520 35523A 35523A 35524 35525 9161160612 9161160614 9161160614 9161160814
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-20420

CT190..ATM

 1
35520 - CABLE ASSY, THROTTLE
35520-20420

CT190..ATM

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-12080

CT190,ST190,191..ATM

 1
35523-12080

AT190,CT190,ST190,191..ATM

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-12080

CT190,ST190,191..ATM

 1
35523-12080

AT190,CT190,ST190,191..ATM

 1
Common parts
91611-60612
91611-60614
91611-60814
