CT190Y-AEPNS (1992)
Toyota Corona

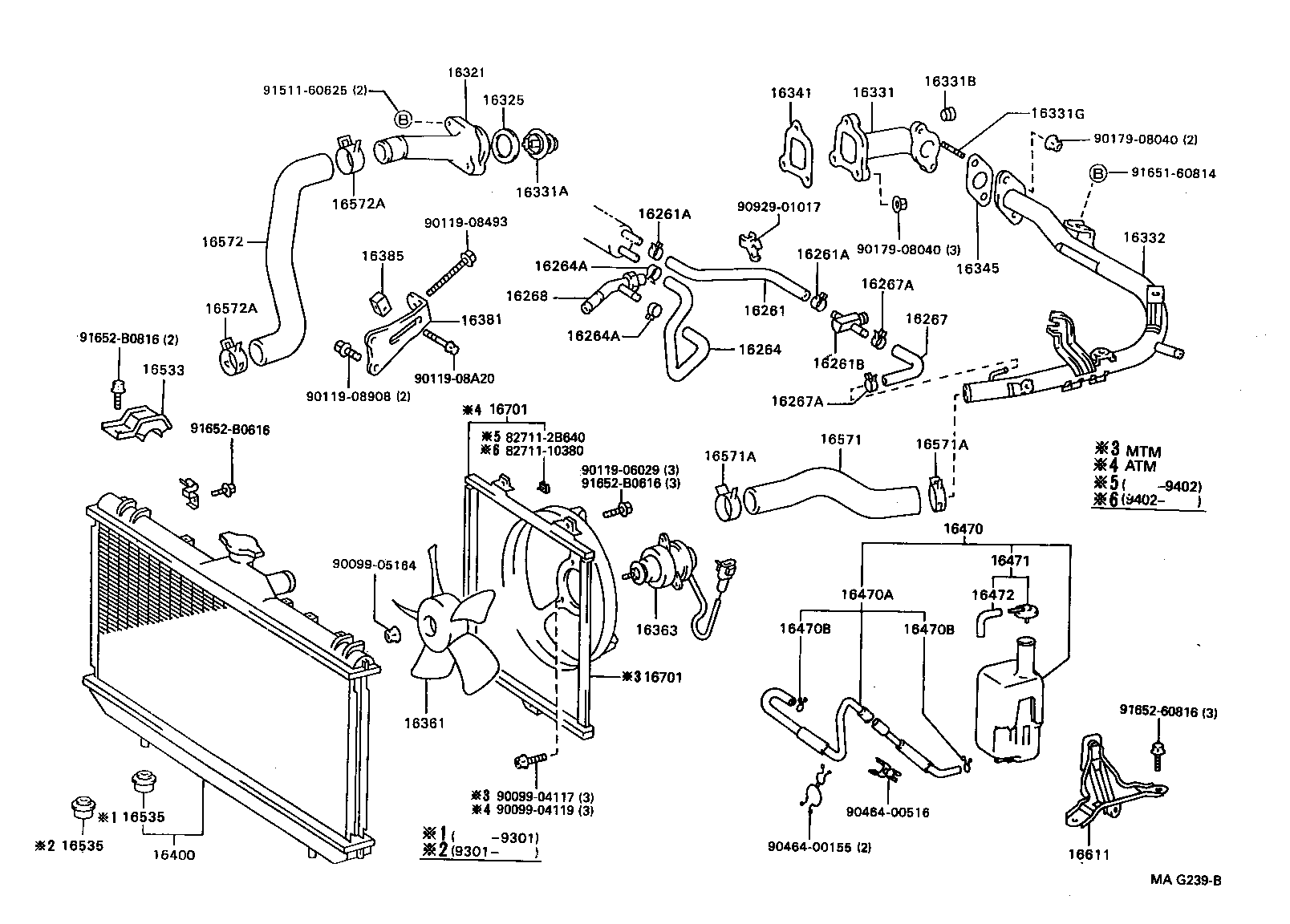

ILLUST NO. 1 OF 2(9211- )2C..CT190..KYO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64060 |
2C..CT19# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C..CT19# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C..CT19# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53050 |
2C..CT19# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64090 |
2C..CT19# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C..CT19# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C..CT19# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-64010 |
2C..CT19# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2C..CT19# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
2C..CT19# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64061 |
2C..CT19# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64020 |
2C..CT19# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
2C..CT19# |
1 | ||
| 16325-63011 |
2C..CT19# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64030 |
2C..CT19# |
1 | ||
| 16331-64070 |
2C..CT19# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2C..CT19# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53030 |
2C..CT19# |
2 | ||
| 90345-53030 |
2C..CT19# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
2C..CT19# |
2 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-64030 |
2C..CT19# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64021 |
2C..CT19# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64041 |
2C..CT19# |
1 | ||
| 16361 - FAN | ||||
| 16361-64030 |
2C..CT195;2C..CT190..ATM |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-64100 |
2C..CT190..ATM..KYO |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64080 |
2C..CT19# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
2C..CT19# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-64740 |
2C..CT190..ATM |
1 | ||
| 16400-64741 |
2C..CT190..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64170 |
2C..CT190..KYO |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-64170 |
2C..CT190..KYO |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2C..CT19# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2C..CT19# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74230 |
2C..CT190..KYO |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
2C..CT190..KYO |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-64130 |
2C..CT19# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64050 |
2C..CT19# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64050 |
2C..CT19# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64200 |
2C..CT190 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
2C..CT19# |
2 | ||
| 90467-33002 |
2C..CT19# |
2 | ||
| 90467-34003 |
2C..CT19# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
2C..CT19# |
2 | ||
| 90467-33002 |
2C..CT19# |
2 | ||
| 90467-34003 |
2C..CT19# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64230 |
2C..CT190 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
2C..CT19# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37001 |
2C..CT19# WATER INLET SIDE |
1 | ||
| 90467-34003 |
2C..CT19# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-33002 |
2C..CT19# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
2C..CT19# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37001 |
2C..CT19# WATER INLET SIDE |
1 | ||
| 90467-34003 |
2C..CT19# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-33002 |
2C..CT19# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74130 |
2C..CT190..KYO |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64360 |
2C..CT195;2C..CT190..ATM |
1 | ||
| 16711-64362 |
2C..CT195;2C..CT190..ATM |
1 | ||
| 16711-64361 |
2C..CT195;2C..CT190..ATM |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64360 |
2C..CT195;2C..CT190..ATM |
1 | ||
| 16711-64362 |
2C..CT195;2C..CT190..ATM |
1 | ||
| 16711-64361 |
2C..CT195;2C..CT190..ATM |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06029 | ||||
| 90119-08493 | ||||
| 90119-08908 | ||||
| 90119-08A20 | ||||
| 90179-08040 | ||||
| 90464-00155 | ||||
| 90464-00516 | ||||
| 90929-01017 | ||||
| 91511-60625 | ||||
| 91651-60814 | ||||
| 91652-60816 | ||||
| 91652-B0616 | ||||
| 91652-B0816 | ||||
