CT190-AEPMS (1992)
Toyota Corona
(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-20110E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-20110C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 69205-20110B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
AT190,CT19#,ST19# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-20110E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 69206-20110C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 69206-20110B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 69206-20110C0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20280E0 |
AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH BROWN ME,4H7 |
1 | ||
| 69210-20280A1 |
AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
1 | ||
| 69210-20280H0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
1 | ||
| 69210-20280D1 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
1 | ||
| 69210-20280A1 |
CT190..ATM..(EXS,SELS);AT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
1 | ||
| 69210-20280E1 |
AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE ME,4M3 |
1 | ||
| 69210-20280A0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
1 | ||
| 69210-20280B0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
1 | ||
| 69210-20280D5 |
AT190,CT19#,ST19#..EXG,EXS,SELS MAGENTA MC,3L3 |
1 | ||
| 69210-20280B1 |
AT190,CT19#,ST19#..EXG,EXS,SELS LT.GRAIGE ME,1A2 |
1 | ||
| 69210-20280C0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BLACK ME,205 |
1 | ||
| 69210-20280G0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AT190,CT19#,ST19# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20280E0 |
AT190,CT19#,ST19#..EXG,EXS,SELS DK.GRAYISH BROWN ME,4H7 |
1 | ||
| 69220-20280E1 |
AT190,CT19#,ST19#..EXG,EXS,SELS LIGHT BEIGE ME,4M3 |
1 | ||
| 69220-20280H0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742 |
1 | ||
| 69220-20280A1 |
AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
1 | ||
| 69220-20280D1 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1 |
1 | ||
| 69220-20280B0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183 |
1 | ||
| 69220-20280G0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7 |
1 | ||
| 69220-20280A1 |
CT190..ATM..(EXS,SELS);AT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046 |
1 | ||
| 69220-20280D5 |
AT190,CT19#,ST19#..EXG,EXS,SELS MAGENTA MC,3L3 |
1 | ||
| 69220-20280C0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BLACK ME,205 |
1 | ||
| 69220-20280A0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SUPER WHITE 2,040 |
1 | ||
| 69220-20280B1 |
AT190,CT19#,ST19#..EXG,EXS,SELS LT.GRAIGE ME,1A2 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AT190,CT19#,ST19# RH,NATURAL |
1 | ||
| 69293-12040 |
AT190,CT19#,ST19# LH,YELLOW |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-20440 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-20440 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-20470 |
AT190,CT19#,ST190,195..SELS |
1 | ||
| 69040-20460 |
AT190,CT190,ST190,195..SELS ｾﾚｸﾄｻﾙ-ﾝG |
1 | ||
| 69040-20460 |
AT190,CT190,ST190..SELS ｾﾚｸﾄｻﾙ-ﾝ G |
1 | ||
| 69040-20460 |
AT190,CT190,ST190,195..SELS ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳ ｵ-ﾄ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-20470 |
AT190,CT19#,ST190,195..SELS |
1 | ||
| 69040-20460 |
AT190,CT190,ST190,195..SELS ｾﾚｸﾄｻﾙ-ﾝG |
1 | ||
| 69040-20460 |
AT190,CT190,ST190..SELS ｾﾚｸﾄｻﾙ-ﾝ G |
1 | ||
| 69040-20460 |
AT190,CT190,ST190,195..SELS ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳ ｵ-ﾄ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AT190,CT19#,ST19# |
2 | ||
| 69410-20070 |
AT190,CT19#,ST19# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-20180 |
AT190,CT19#,ST19# |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-20180 |
AT190,CT19#,ST19# |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-20040 |
AT190,CT19#,ST19# |
2 | ||
| 69749J - CLAMP, FRONT DOOR LOCK | ||||
| 69749-32020 |
AT190..MTM..SELS;AT190..ATM..(EXS,SELS);CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 69749-32020 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-20050 |
AT190,CT19#,ST19# |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24010 |
AT190,CT19#,ST19# LH,NATURAL |
1 | ||
| 69759-24050 |
AT190,CT19#,ST19# LH,GREEN |
2 | ||
| 69759-24020 |
AT190,CT19#,ST19# RH,BLUE |
1 | ||
| 69759-24060 |
AT190,CT19#,ST19# RH,GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24010 |
AT190,CT19#,ST19# LH,NATURAL |
1 | ||
| 69759-24050 |
AT190,CT19#,ST19# LH,GREEN |
2 | ||
| 69759-24020 |
AT190,CT19#,ST19# RH,BLUE |
1 | ||
| 69759-24060 |
AT190,CT19#,ST19# RH,GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24010 |
AT190,CT19#,ST19# LH,NATURAL |
1 | ||
| 69759-24050 |
AT190,CT19#,ST19# LH,GREEN |
2 | ||
| 69759-24020 |
AT190,CT19#,ST19# RH,BLUE |
1 | ||
| 69759-24060 |
AT190,CT19#,ST19# RH,GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24010 |
AT190,CT19#,ST19# LH,NATURAL |
1 | ||
| 69759-24050 |
AT190,CT19#,ST19# LH,GREEN |
2 | ||
| 69759-24020 |
AT190,CT19#,ST19# RH,BLUE |
1 | ||
| 69759-24060 |
AT190,CT19#,ST19# RH,GRAY |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20380 |
AT190,CT19#,ST19# ﾌﾞﾗｯｸ |
2 | ||
| 69759-24030 |
AT190,CT19#,ST19# ﾚｯﾄﾞ |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20380 |
AT190,CT19#,ST19# ﾌﾞﾗｯｸ |
2 | ||
| 69759-24030 |
AT190,CT19#,ST19# ﾚｯﾄﾞ |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
AT190,CT19#,ST19# 左側,ｲｴﾛｰ |
2 | ||
| 69759-14050 |
AT190,CT19#,ST19# 右側,ﾋﾟﾝｸ |
2 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-30021 |
AT190,CT19#,ST19# |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-20050 |
AT190,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90159-60303 | ||||
| 90159-60356 | ||||
| 90159-80031 | ||||
| 90164-25001 | ||||
| 90189-06203 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||

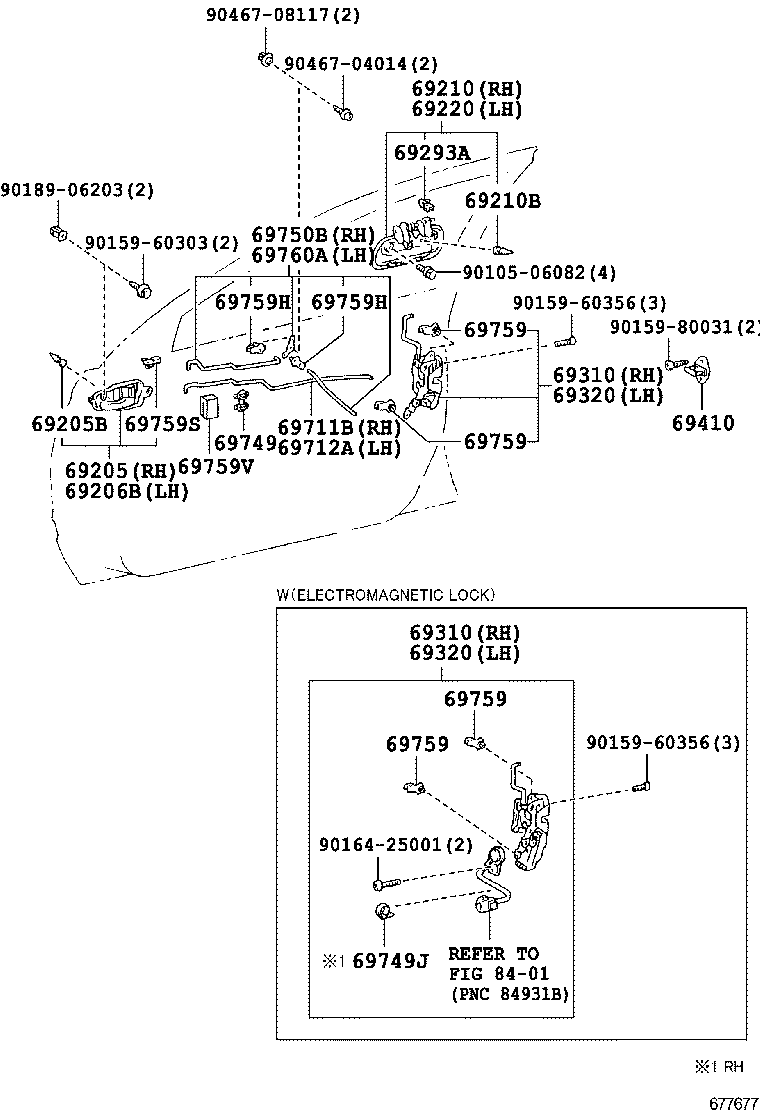

| Linked diagrams | ||||
| 8401 | ||||
