CT190-AEMMS (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )CT19#

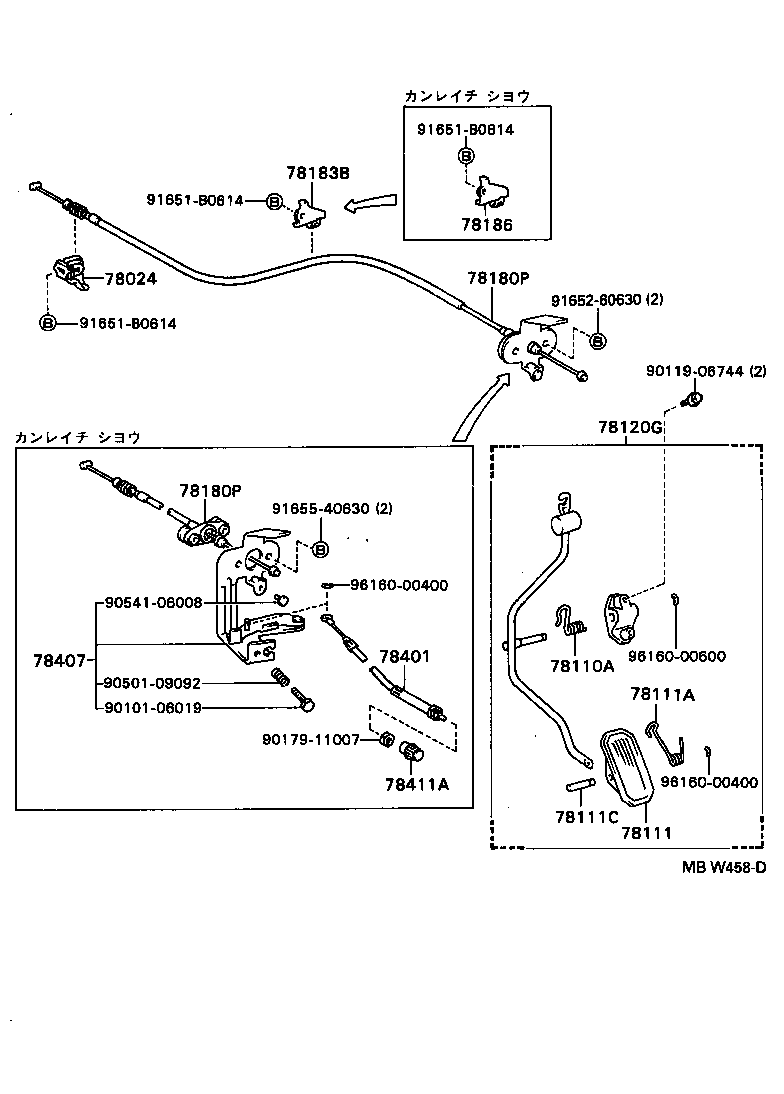

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78180P 78183B 78186 78401 78407 78411A 9010106019 9011906744 9017911007 9050109092 9054106008 91651B0614 91651B0614 91651B0614 9165260630 9165540630 9616000400 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32140

CT19#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

CT19#,ST190,195..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AT190,CT190,ST19#

 1
78111-20050

CT19#..MTM

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT190,CT19#,ST19#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT190,CT19#,ST19#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20550

CT190..MTM

 1
78120-20580

CT19#..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B870

CT190..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78180-2D150

CT190..MTM

 1
78180-2B870

CT190..KYO;CT190..MTM..(EXS,GX,SELS)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B870

CT190..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78180-2D150

CT190..MTM

 1
78180-2B870

CT190..KYO;CT190..MTM..(EXS,GX,SELS)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

AT190,CT19#,ST19#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78183-20170

CT190..KYO;CT190..MTM..(EXS,GX,SELS)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78183-20170

CT190..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78401 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-20050

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78401-20050

CT190..KYO;CT19#..MTM..(EXS,GX,SELS)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78407 - ARM SUB-ASSY, THROTTLE CONTROL
78407-20051

CT190..KYO;CT19#..MTM..(EXS,GX,SELS)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78407-20050

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78407-20051

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78411-22010

CT190..KYO;CT19#..MTM..(EXS,GX,SELS)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90101-06019
90119-06744
90179-11007
90501-09092
90541-06008
91651-B0614
91652-60630
91655-40630
96160-00400
96160-00600
