Toyota Corona CT190 ALTERNATOR - JDM Part Detective

CT190-AEMMS (1992)

Toyota Corona

Production Feb 1992 - Jan 1996

Engine 2C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

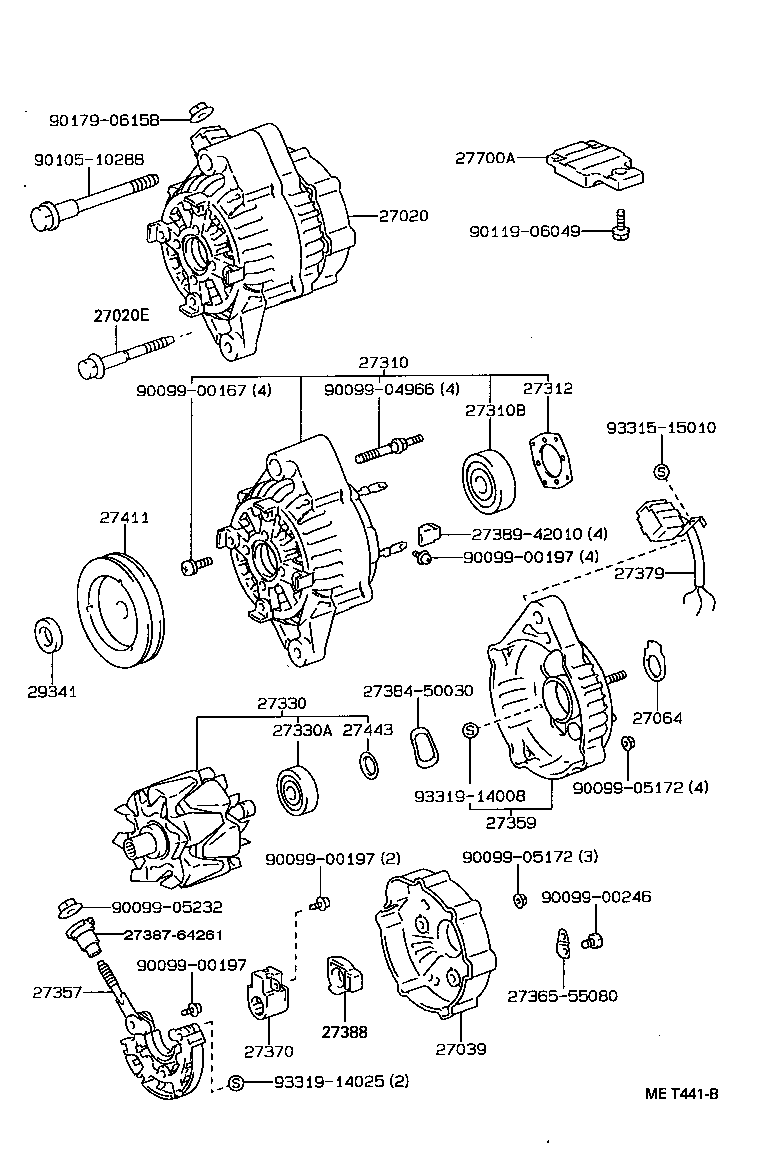

(9202-9302)2C..CT190..EXS,GX,SELS

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-64281	2C..CT190..EXS,GX,SELS 12V 80A	02/1992 - 05/1993	1
27060-64130	2C..CT19#..MTM 12V 80A	05/1993 - 01/1996	1
27020E - BOLT(FOR ALTERNATOR)
90901-05004	2C..CT19#	05/1993 - 01/1996	1
90901-05004	2C..CT19#	02/1992 - 05/1993	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	2C..CT190..MTM	05/1993 - 02/1994	1
27039-64180	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27039-55080	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27064-42010	2C..CT190..MTM..KYO;2C..CT19#..EXS,GX,SELS;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1992 - 05/1993	1
27064-42010	2C..CT19#..MTM;4AFE,3SFE,4SFE..AT190,ST19#..ATM	05/1993 - 02/1994	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64450	2C..CT19#..MTM	05/1993 - 01/1996	1
27310-64260	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
90099-10192	2C..CT190..MTM	05/1993 - 01/1996	1
27312 - PLATE, RETAINER
27312-42010	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27312-64130	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27312-42010	2C..CT190..MTM	05/1993 - 02/1994	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64190	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27330-76030	2C..CT190..MTM	05/1993 - 01/1996	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	2C..CT190..MTM..KYO;2C..CT190..EXS,GX,SELS;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	02/1992 - 05/1993	1
90099-10140	2C..CT190..MTM;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	05/1993 - 02/1994	1
90099-10140	4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19#	02/1994 - 01/1996	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-64281	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27357-55080	2C..CT190..MTM	05/1993 - 02/1994	1
27357-55080	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-64450	2C..CT19#..MTM	05/1993 - 02/1994	1
27359-64260	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27359-64450	2C..CT19#	02/1994 - 01/1996	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1992 - 01/1996	1
27379 - WIRE, ALTERNATOR LEAD
27379-64261	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	2C..CT190..MTM..KYO;2C..CT19#..EXS,GX,SELS;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1992 - 05/1993	1
27388-42010	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27388-42010	2C..CT19#..MTM;4AFE,3SFE,4SFE..AT190,ST19#..ATM	05/1993 - 02/1994	1
27411 - PULLEY, ALTERNATOR
27411-64320	2C..CT19#..MTM	05/1993 - 02/1994	1
27411-64320	2C..CT19#	02/1994 - 01/1996	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	2C..CT190..MTM..KYO;2C..CT190..EXS,GX,SELS;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	02/1992 - 05/1993	1
27443-63020	2C..CT190..MTM;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	05/1993 - 02/1994	1
27443-63020	4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19#	02/1994 - 01/1996	1
27700A - REGULATOR ASSY, GENERATOR
27700-64080	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27700-65010	2C..CT19#..MTM	05/1993 - 01/1996	1
29341 - SEAL, ALTERNATOR OIL
29341-64130	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
Common parts
27365-55080
27384-50030
27387-64261
27389-42010
90099-00167
90099-00197
90099-00246
90099-04966
90099-05172
90099-05232
90105-10288
90119-06049
90179-06158
93315-15010
93319-14008
93319-14025

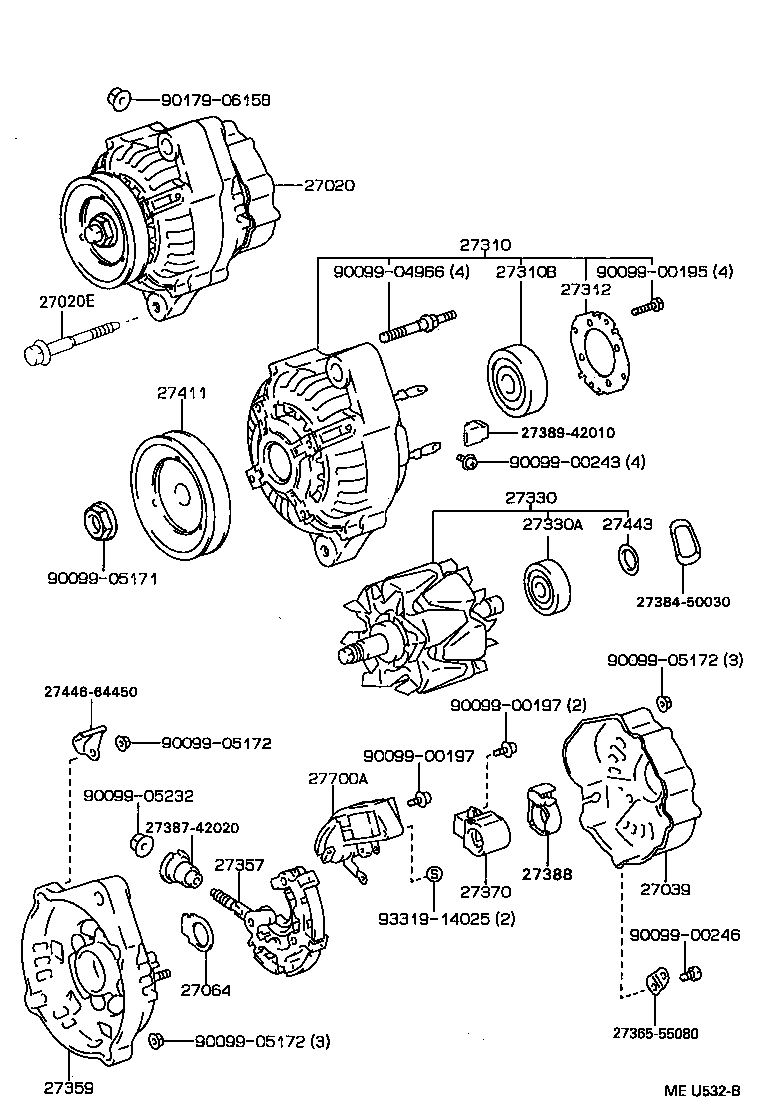

(9208- )2C..CT195 ; (9208- )2C..CT190..KYO; (9302- )2C..CT190..EXS,GX,SEL

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-64281	2C..CT190..EXS,GX,SELS 12V 80A	02/1992 - 05/1993	1
27060-64130	2C..CT19#..MTM 12V 80A	05/1993 - 01/1996	1
27020E - BOLT(FOR ALTERNATOR)
90901-05004	2C..CT19#	05/1993 - 01/1996	1
90901-05004	2C..CT19#	02/1992 - 05/1993	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	2C..CT190..MTM	05/1993 - 02/1994	1
27039-64180	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27039-55080	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27064-42010	2C..CT190..MTM..KYO;2C..CT19#..EXS,GX,SELS;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1992 - 05/1993	1
27064-42010	2C..CT19#..MTM;4AFE,3SFE,4SFE..AT190,ST19#..ATM	05/1993 - 02/1994	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64450	2C..CT19#..MTM	05/1993 - 01/1996	1
27310-64260	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
90099-10192	2C..CT190..MTM	05/1993 - 01/1996	1
27312 - PLATE, RETAINER
27312-42010	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27312-64130	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27312-42010	2C..CT190..MTM	05/1993 - 02/1994	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64190	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27330-76030	2C..CT190..MTM	05/1993 - 01/1996	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	2C..CT190..MTM..KYO;2C..CT190..EXS,GX,SELS;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	02/1992 - 05/1993	1
90099-10140	2C..CT190..MTM;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	05/1993 - 02/1994	1
90099-10140	4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19#	02/1994 - 01/1996	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-64281	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27357-55080	2C..CT190..MTM	05/1993 - 02/1994	1
27357-55080	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-64450	2C..CT19#..MTM	05/1993 - 02/1994	1
27359-64260	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27359-64450	2C..CT19#	02/1994 - 01/1996	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1992 - 01/1996	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	2C..CT190..MTM..KYO;2C..CT19#..EXS,GX,SELS;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1992 - 05/1993	1
27388-42010	2C..CT19#;4AFE,3SFE,4SFE..AT190,ST19#..ATM	02/1994 - 01/1996	1
27388-42010	2C..CT19#..MTM;4AFE,3SFE,4SFE..AT190,ST19#..ATM	05/1993 - 02/1994	1
27411 - PULLEY, ALTERNATOR
27411-64320	2C..CT19#..MTM	05/1993 - 02/1994	1
27411-64320	2C..CT19#	02/1994 - 01/1996	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	2C..CT190..MTM..KYO;2C..CT190..EXS,GX,SELS;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	02/1992 - 05/1993	1
27443-63020	2C..CT190..MTM;4AFE,2C,3SFE,4SFE..AT190,CT195,ST19#	05/1993 - 02/1994	1
27443-63020	4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19#	02/1994 - 01/1996	1
27700A - REGULATOR ASSY, GENERATOR
27700-64080	2C..CT190..EXS,GX,SELS	02/1992 - 05/1993	1
27700-65010	2C..CT19#..MTM	05/1993 - 01/1996	1
Common parts
27365-55080
27384-50030
27387-42020
27389-42010
27446-64450
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05232
90179-06158
93319-14025
