CT190-AEMES (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )

Click highlighted areas on diagram

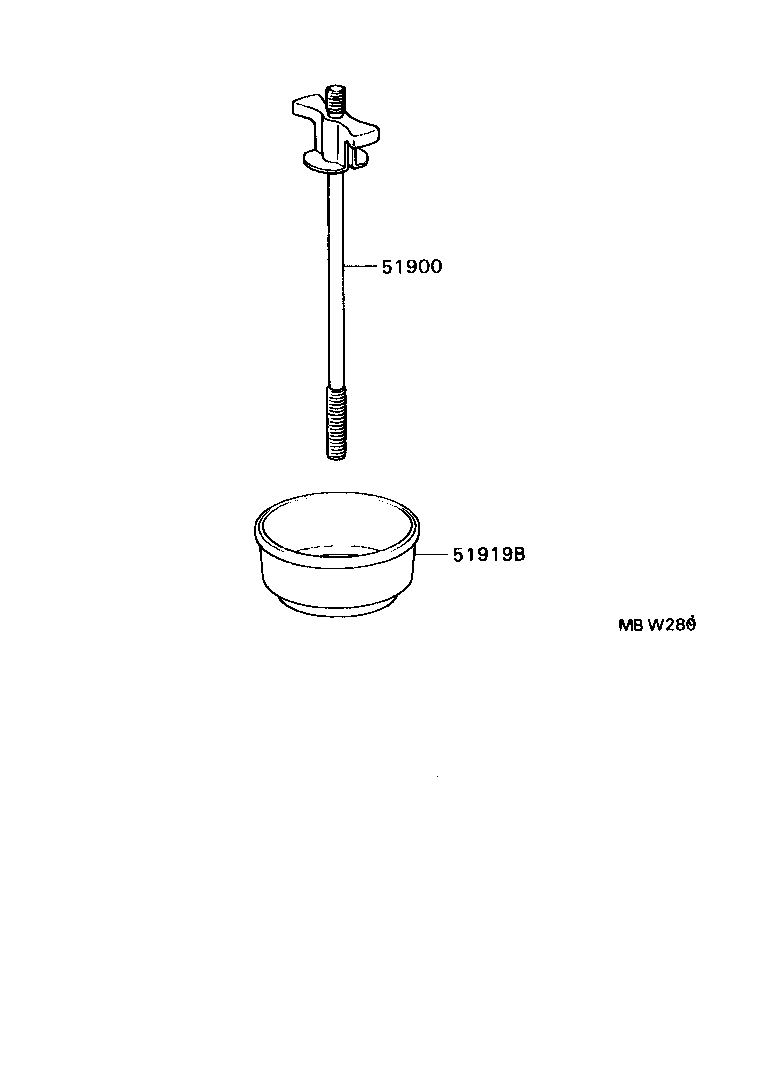

diagram 51900 51919B
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-20180

AT190,ST191..EXG,EXS,TYPE2;CT190,ST190..EXG,EXS,SELS,TYPE1

ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ & ﾌﾂｳ ﾀｲﾔ)

 1
51900-20181

AT190,ST191..EXG,EXS,TYPE2;CT190,ST190..EXG,EXS,SELS,TYPE1

ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ & ﾌﾂｳ ﾀｲﾔ)

 1
51900-20181

ST195;AT190,ST191..EXG,EXS,TYPE2;CT19#,ST190..EXG,EXS,SELS,TYPE1

ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ & ﾌﾂｳ ﾀｲﾔ)

 1
51900-20160

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

BLUE PAINTED

 1
51900-20170

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

WHITE PAINTED

 1
51919B - SPACER, SPARE WHEEL CARRIER
51919-32030

AT190,CT19#,ST19#

 1
