CT176V-AXPDS (1989)

Toyota Corona

Production Nov 1989 - Nov 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )CT17#

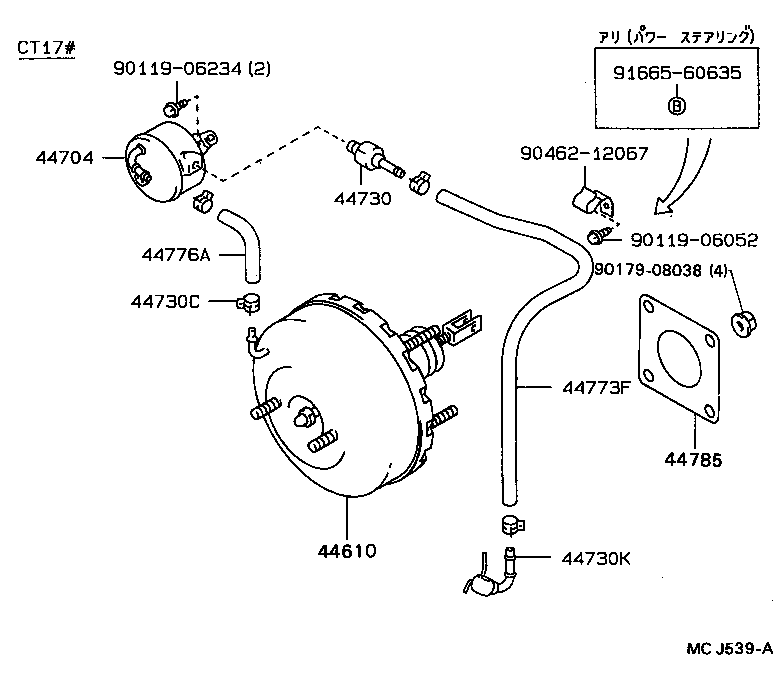

Click highlighted areas on diagram

diagram 44610 44704 44730 44730C 44730K 44773F 44776A 44785 9011906052 9011906234 9017908038 9046212067 9166560635
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2B140

AT170,CT17#,ET176,ST170

 1
44610-2B820

CT17#

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-20030

CT17#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

CT17#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CT17#

 4
44773F - HOSE, UNION TO CHECK VALVE
44773-20500

CT17#

 1
44773-20780

CT176

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-20010

CT17#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AT17#,CT17#,ET176,ST17#

 1
Common parts
90119-06052
90119-06234
90179-08038
90462-12067
91665-60635
