CT176V-AXPDS (1989)
Toyota Corona
Production
Nov 1989
-
Nov 1992
Engine
2C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

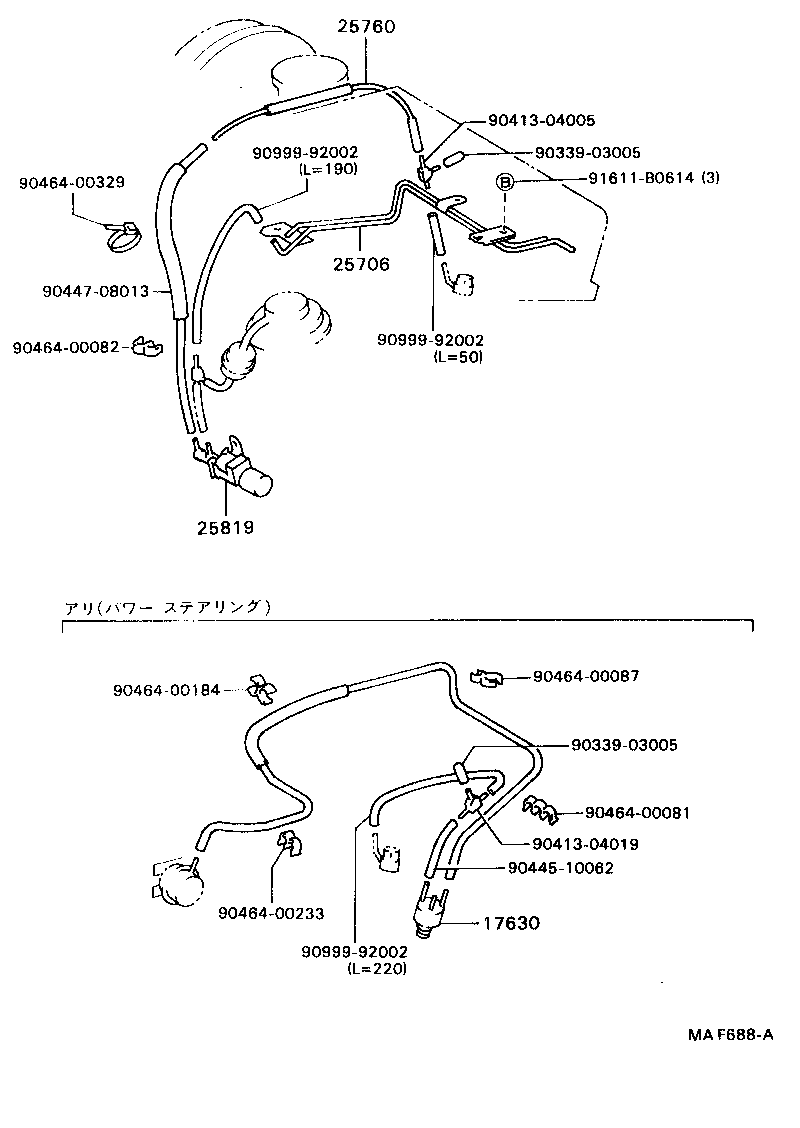

(9104- )2C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-64010 |
2C..CT17#..4FC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90413-04019 | ||||
| 90445-10062 | ||||
| 90447-08013 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00087 | ||||
| 90464-00184 | ||||
| 90464-00233 | ||||
| 90464-00329 | ||||
| 90999-92002 | ||||
| 91611-B0614 | ||||

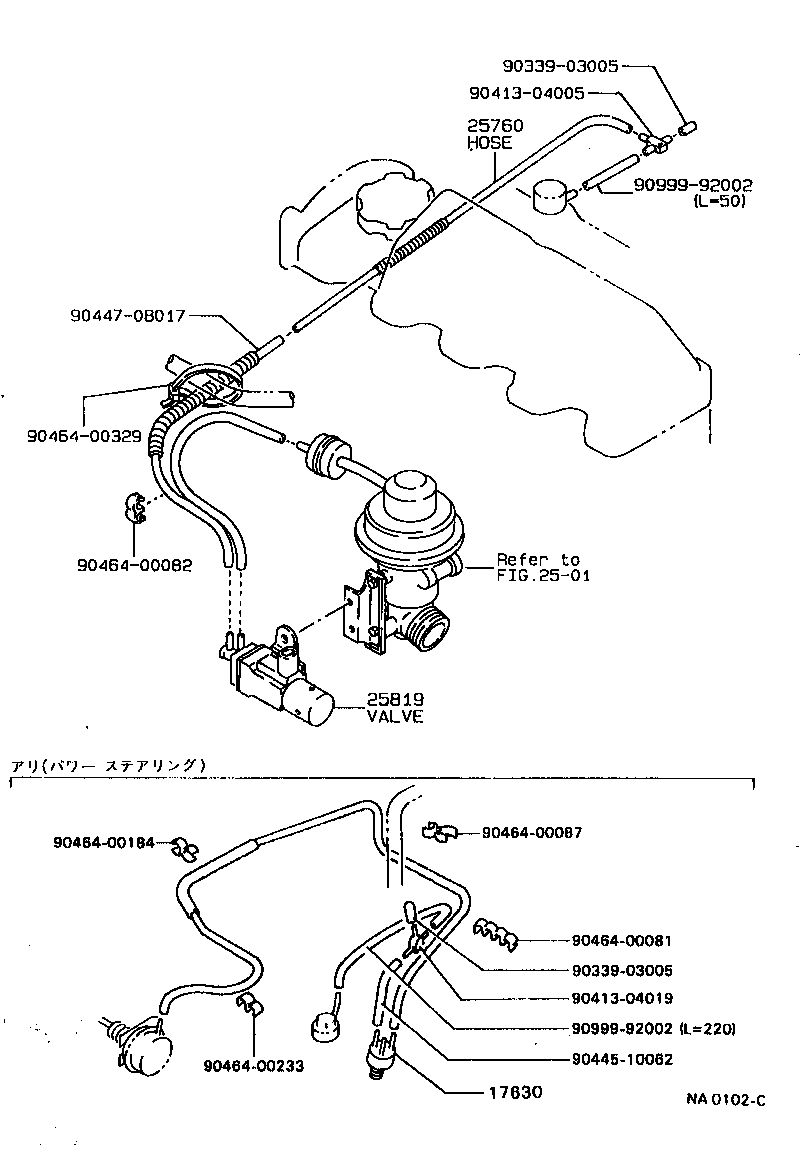

(8712-9104)2C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-64010 |
2C..CT17#..4FC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90413-04019 | ||||
| 90445-10062 | ||||
| 90447-08017 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00087 | ||||
| 90464-00184 | ||||
| 90464-00233 | ||||
| 90464-00329 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 2510 | ||||
