CT176V-AXMDS (1987)

Toyota Corona

Production Dec 1987 - Nov 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )CT17#,ST17#..5F

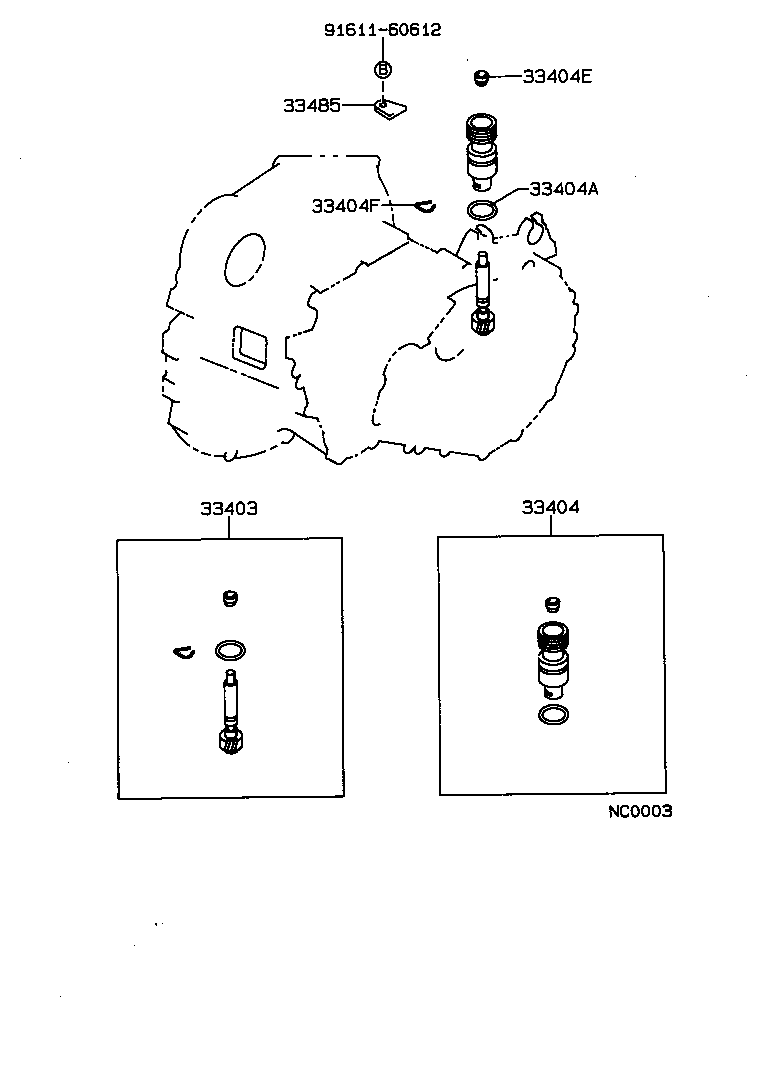

Click highlighted areas on diagram

S50,S51,S53

diagram 33403 33404 33404A 33404E 33404F 33485 9161160612
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39115

CT176,ST171..5F..(DX,GT,GTR,SXR)

歯数=22,ﾏｰｸ 22:25

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-16010

CT17#,ST17#..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24018

CT17#,ST17#..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AT170,CT17#,ET176,ST17#..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT17#,CT17#,ET176,ST17#..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-14010

CT17#,ST17#..5F

 1
Common parts
91611-60612
