CT170-AEPMS (1989)
Toyota Corona
Production
Nov 1989
-
Feb 1992
Engine
2C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8911- )2C

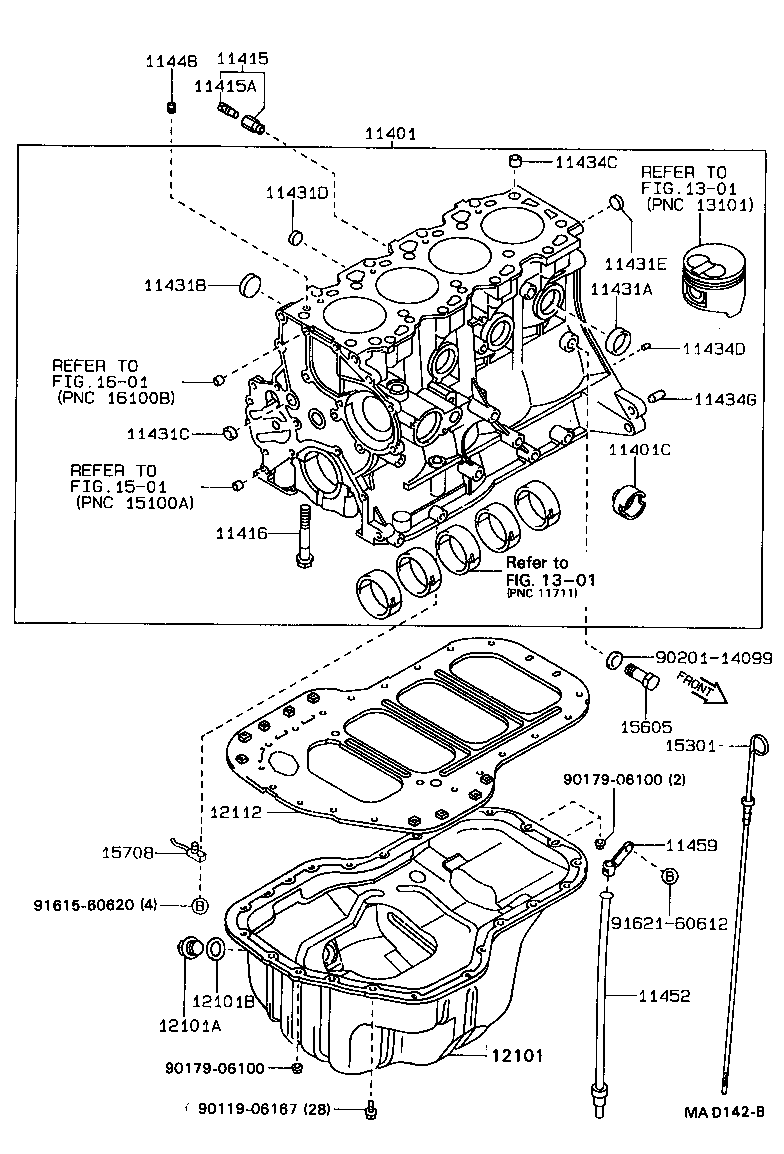

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69365 |
2C..CT17# |
1 | ||
| 11401C - FLANGE(FOR WATER BY-PASS) | ||||
| 16353-64010 |
2C..CT17# |
1 | ||
| 16353-64010 |
2C..CT176;2C..CT170..4FC;2C..CT170..5F..(GX,SELS) |
1 | ||
| 16353-64010 |
2C..CT17# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09088 |
2C..CT17# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
2C..CT17# *54 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
2C..CT17# |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2C..CT17# |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
2C..CT17# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
2C..CT17# |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
2C..CT17# |
1 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
2C..CT17# |
3 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-14001 |
2C..CT17# 長さ=9,外径=14 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
2C..CT17# 長さ=11,外径=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
2C..CT17# |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54010 |
2C..CT17# |
1 | ||
| 11448-54010 |
2C..CT17# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-64030 |
2C..CT17# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01049 |
2C..CT17# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-64040 |
2C..CT17# |
1 | ||
| 12101-64040 |
2C..CT17# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
2C..CT17# |
1 | ||
| 90341-12012 |
2C..CT17# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12019 |
2C..CT17# |
1 | ||
| 90430-12011 |
2C..CT17# |
1 | ||
| 90430-12019 |
2C..CT17# |
1 | ||
| 90430-12019 |
2C..CT17# |
1 | ||
| 90430-12019 |
2C..CT17# |
1 | ||
| 90430-12028 |
2C..CT17# |
1 | ||
| 12112 - PAN, OIL NO.2 | ||||
| 12112-64040 |
2C..CT17# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-64010 |
2C..CT17# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-64011 |
2C..CT17# |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15790-64011 |
2C..CT17# |
4 | ||
| Common parts | ||||
| 90119-06167 | ||||
| 90179-06100 | ||||
| 90201-14099 | ||||
| 91615-60620 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
| 1601 | ||||
