CT170-AEMNS (1987)
Toyota Corona
(8712-8911)MX,Z ; (8712- )DX,GX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-20260 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-20200 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-20130 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-20070 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-20590 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 55910-20460 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-20120 |
AT17#,CT170,ST170..GX |
1 | ||
| 55917-20120 |
AT17#,CT170,ST170..GX |
1 | ||
| 55917-20130 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-20100 |
AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55921-20100 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 55921-20110 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-20090 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD 右側 |
1 | ||
| 55931-20080 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD 左側 |
1 | ||
| 55931A - SHAFT, HEATER CONTROL LEVER | ||||
| 55931-20090 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD 右側 |
1 | ||
| 55931-20080 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD 左側 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-20250 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20210 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20360 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ & ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20180 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
1 | ||
| 81942-20250 |
AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-20110 |
CT170..GX |
1 | ||
| 88032-20110 |
AT17#,CT170,ST170..GX |
1 | ||
| 88032-20160 |
CT170..GX GX ｻﾙ-ﾝ |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90480-13020 | ||||
| 93567-55016 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||

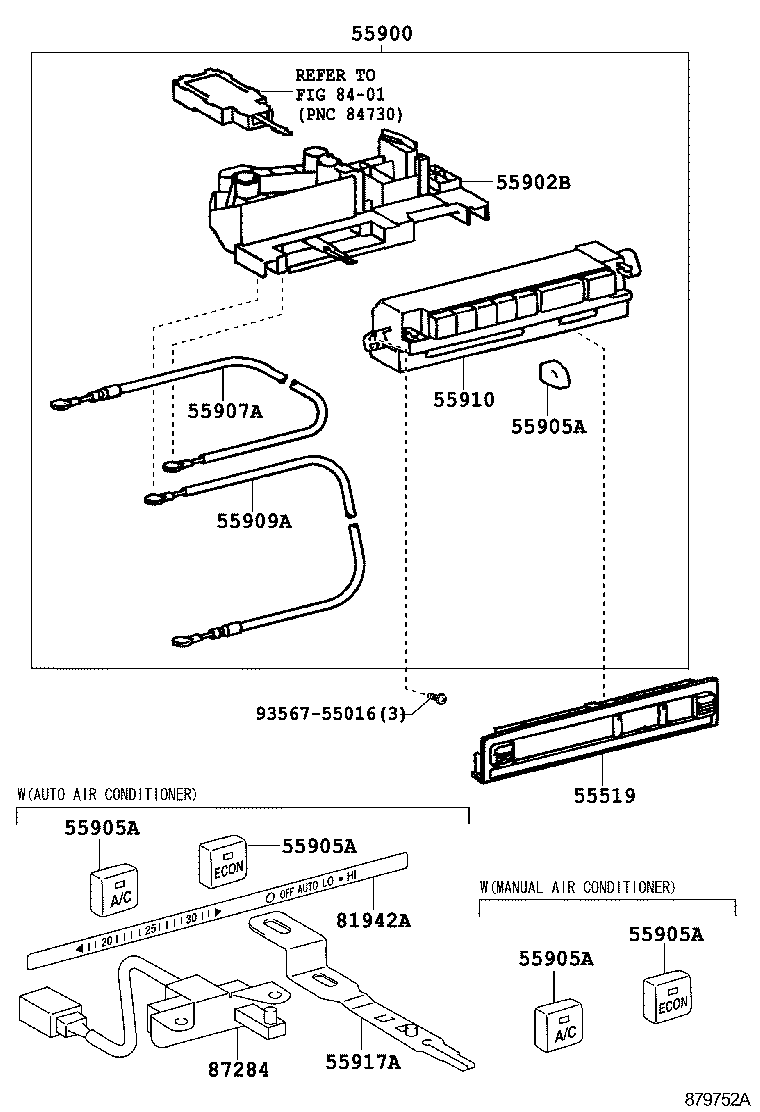

(8911- )SELS,Z ; (9106- )AT17#,CT170,ST170..GX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-20260 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55519-20260 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55519-20260 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X |
1 | ||
| 55519-20250 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-20600 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55900-20600 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55900-20600 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X |
1 | ||
| 55900-20800 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-20200 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-20070 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-20590 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 55910-20460 |
AT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-20120 |
AT17#,CT170,ST170..GX |
1 | ||
| 55917-20120 |
AT17#,CT170,ST170..GX |
1 | ||
| 55917-20130 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-20250 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20210 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20360 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ & ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20180 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
1 | ||
| 81942-20250 |
AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-20110 |
CT170..GX |
1 | ||
| 88032-20110 |
AT17#,CT170,ST170..GX |
1 | ||
| 88032-20160 |
CT170..GX GX ｻﾙ-ﾝ |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8712- )AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-20260 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55519-20260 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55519-20260 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X |
1 | ||
| 55519-20250 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-20600 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55900-20600 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55900-20600 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X |
1 | ||
| 55900-20800 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20280 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20280 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X A/C |
1 | ||
| 55905-20290 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ECON |
1 | ||
| 55905-20280 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X A/C |
1 | ||
| 55905-20300 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X ｵｰﾄ |
1 | ||
| 55905-20300 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵｰﾄ |
1 | ||
| 55905-20290 |
AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-20390 |
CT170..GX A/C |
1 | ||
| 55905-20290 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ECON |
1 | ||
| 55905-12130 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
4 | ||
| 55905-20400 |
CT170..GX ECON |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-20100 |
AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 55921-20100 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 55921-20110 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-20250 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20210 |
AT17#,CT170,ST170..GX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20360 |
AT17#,CT170,ST170..GX GX ｻﾙ-ﾝ & ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 81942-20180 |
AT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD |
1 | ||
| 81942-20250 |
AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20130 |
CT170..GX ROOM AIR SENSOR |
1 | ||
| 88625-20220 |
CT170..GX ROOM AIR SENSOR |
1 | ||
| 88625-20190 |
CT170;AT17#,ST170..SELS OUT AIR SENSOR |
1 | ||
| 88625-20190 |
CT170..GX OUT AIR SENSOR |
1 | ||
| 88625-20190 |
CT170 OUT AIR SENSOR |
1 | ||
| 88625-20190 |
CT170;ST170..SELS;AT17#..GX,SELS OUT AIR SENSOR |
1 | ||
| 88625-20220 |
AT17#,CT170..GX ROOM AIR SENSOR |
1 | ||
| 88625-20130 |
CT170..GX GX ｻﾙ-ﾝ,ROOM AIR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20130 |
CT170..GX ROOM AIR SENSOR |
1 | ||
| 88625-20220 |
CT170..GX ROOM AIR SENSOR |
1 | ||
| 88625-20190 |
CT170;AT17#,ST170..SELS OUT AIR SENSOR |
1 | ||
| 88625-20190 |
CT170..GX OUT AIR SENSOR |
1 | ||
| 88625-20190 |
CT170 OUT AIR SENSOR |
1 | ||
| 88625-20190 |
CT170;ST170..SELS;AT17#..GX,SELS OUT AIR SENSOR |
1 | ||
| 88625-20220 |
AT17#,CT170..GX ROOM AIR SENSOR |
1 | ||
| 88625-20130 |
CT170..GX GX ｻﾙ-ﾝ,ROOM AIR SENSOR |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-20140 |
CT170..GX |
1 | ||
| 88625-20140 |
CT170 |
1 | ||
| 88625-20140 |
CT170;ST170..SELS;AT17#..GX,SELS |
1 | ||
| 88625-20140 |
CT170;AT17#,ST170..SELS |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-20070 |
CT170..GX ｾﾚｸﾄ ｻﾙ-ﾝ 2 |
1 | ||
| 88669-20060 |
CT170..GX |
1 | ||
| 88669-20060 |
AT17#,CT170..GX |
1 | ||
| 88669-20070 |
CT170..5F..GX;AT170..4FC..GX GX ｻﾙ-ﾝ |
1 | ||
| 88669-20110 |
CT170..5F..GX ｶﾝﾚｲﾁ ｼﾖｳ & GX ｻﾙ-ﾝ |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-20050 |
CT170..GX |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88566-22040 |
CT170..GX ｾﾚｸﾄ ｻﾙ-ﾝ 2 |
1 | ||
| 88566-22040 |
CT170 |
1 | ||
| 88566-22040 |
CT170;ST170..SELS;AT17#..GX,SELS |
1 | ||
| 88566-22040 |
CT170;AT17#,ST170..SELS |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 93510-55012 | ||||
| 93560-54010 | ||||
(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-20160 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-20120 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-20140 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-20070 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-20040 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-20040 |
AT170,CT17#,ET176,ST17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220-20030 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 88891-20120 | ||||
| 90159-60480 | ||||
| 90467-07092 | ||||
| 90467-0805601 | ||||
| 90480-26022 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
