CT170-AEMNS (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )CT17#

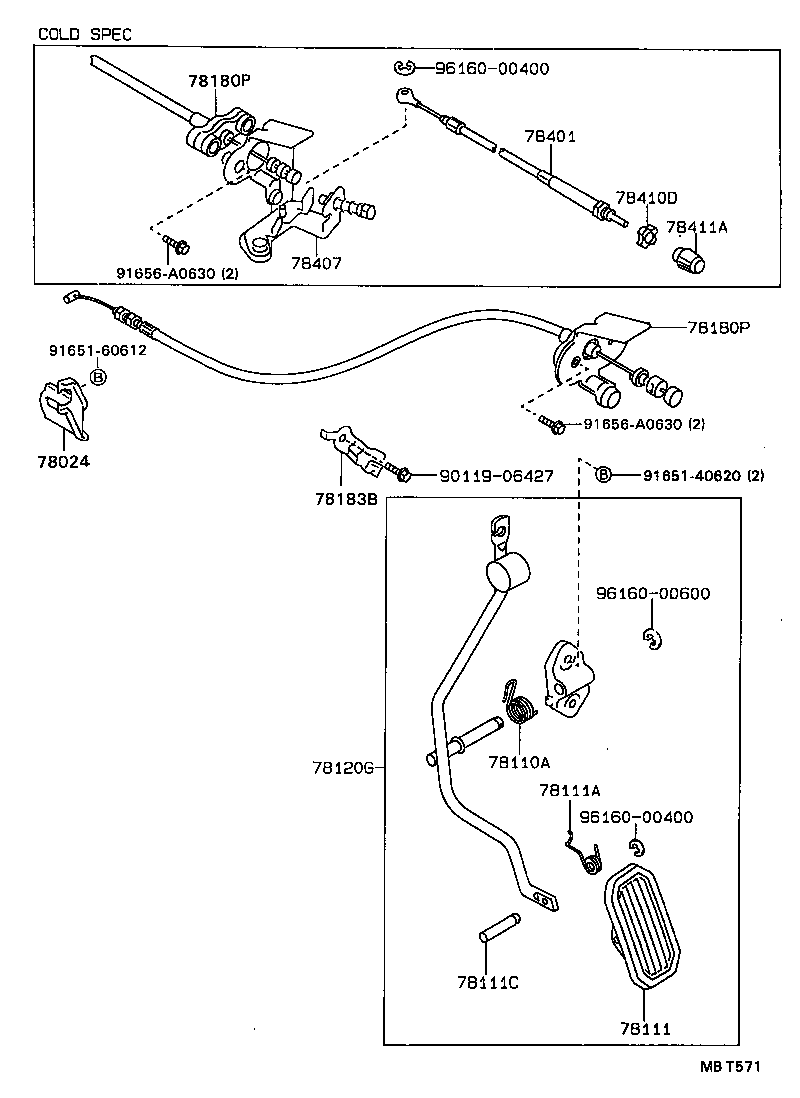

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78180P 78183B 78401 78407 78410D 78411A 9011906427 9165140620 9165160612 91656A0630 91656A0630 9616000400 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20110

CT17#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

ST171..EXG,G,SXR;AT17#,CT17#,ET176,ST17#..MTM..(DX,EXS,GT,GTR,GX,MX,STD,X,Z)

 1
90508-26054

AT170..MTM..CBR;ST171..EXG,G,SXR;AT175,CT17#,ST17#..5F..(DX,EXS,GT,GTR,GX,MX,SELS,X,Z)..(DSL,EFI)

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AT17#,CT17#,ET176,ST17#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT17#,CT17#,ET176,ST17#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT17#,CT17#,ET176,ST17#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20180

ST171..EXG,G,SXR;AT17#,CT17#,ET176,ST170..MTM

 1
78120-20180

AT170..MTM..CBR;ST171..EXG,G,SXR;AT175,CT17#,ST170..5F..(DSL,EFI)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B210

CT17#..5F

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78180-2B230

CT17#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B210

CT17#..5F

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78180-2B230

CT17#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20120

CT17#,ST17#

 1
78183-20100

CT17#

 1
78183-20100

CT17#,ST17#

 1
78401 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-20030

CT17#..5F

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78407 - ARM SUB-ASSY, THROTTLE CONTROL
78407-20040

CT17#..5F

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78410D - NUT, THROTTLE
90179-11007

CT17#..5F

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

CT17#..5F

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90119-06427
91651-40620
91651-60612
91656-A0630
96160-00400
96160-00600
