CT170-AEMMS (1988)
Toyota Corona
Production
Sep 1988
-
Nov 1989
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712-8911)CT17#

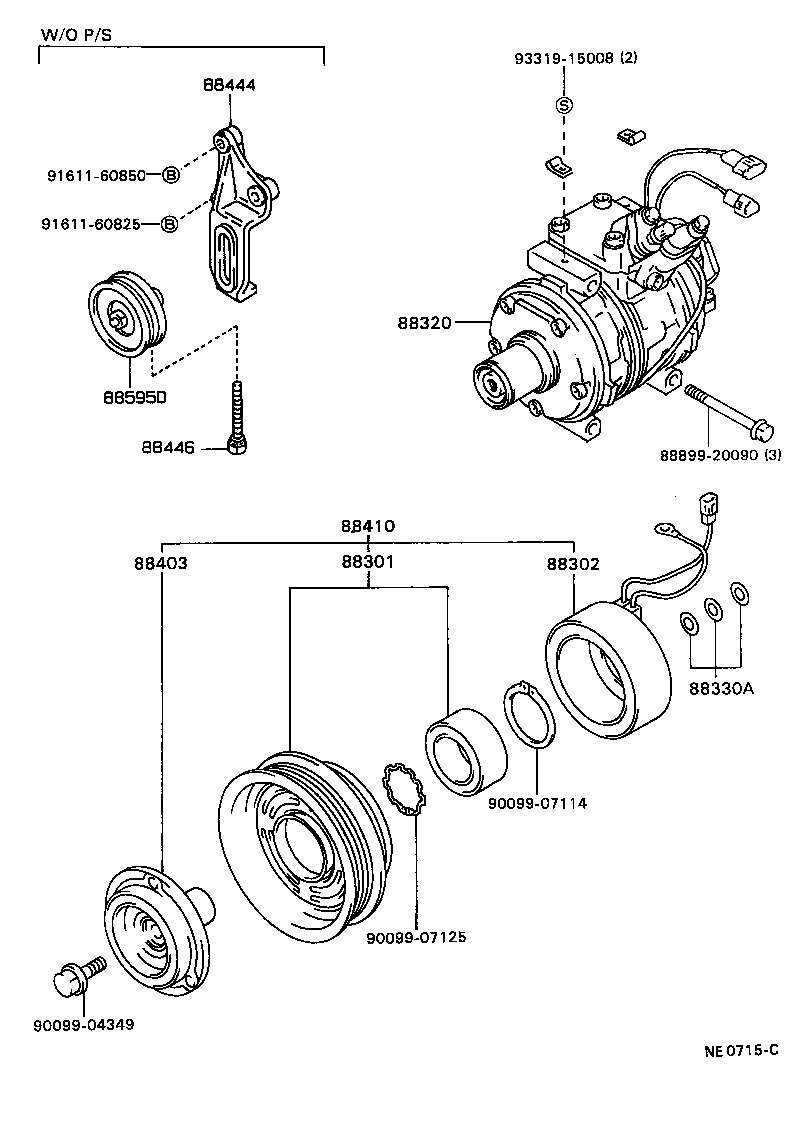

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20090 |
CT170..EXS,MX |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-20140 |
CT170..EXS,MX |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20650 |
CT170..EXS,MX |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CT170..EXS,MX |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
CT170..EXS,MX |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-20250 |
CT170..EXS,MX |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91611-60825 | ||||
| 91611-60850 | ||||
| 93319-15008 | ||||
