CT170-AEMMS (1988)
Toyota Corona
Production
Sep 1988
-
Nov 1989
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712-8911)2C

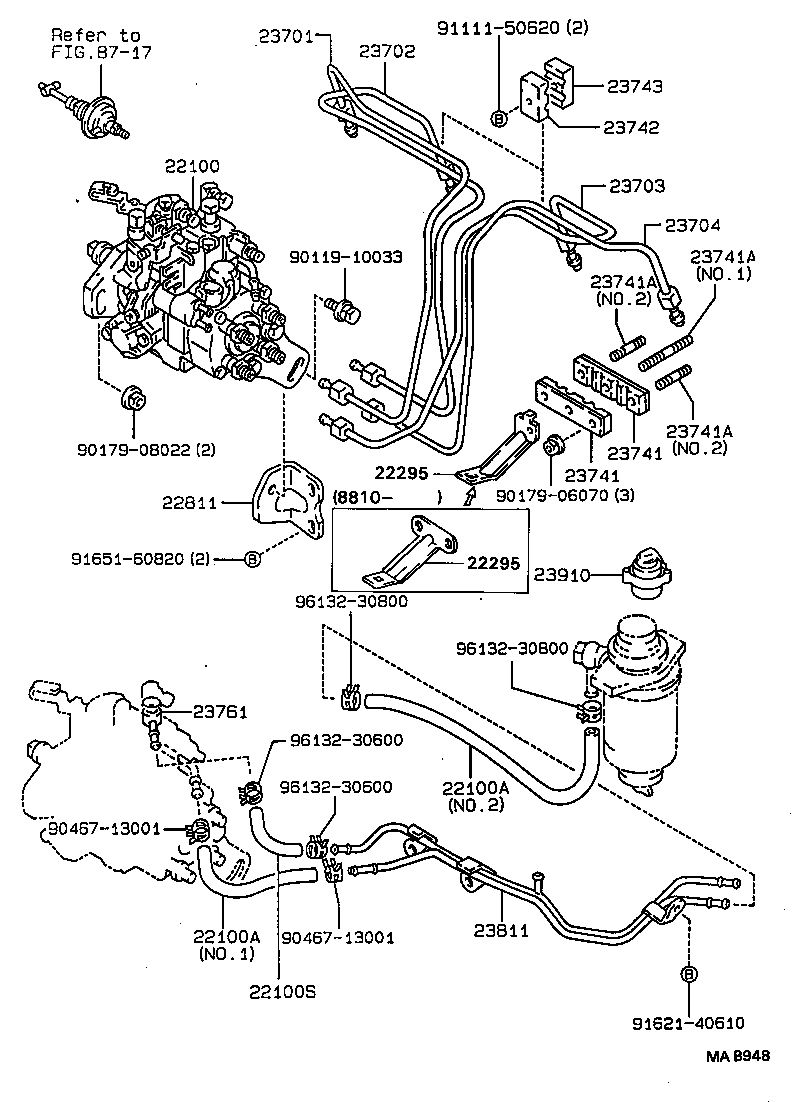

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-6A540 |
2C..CT170..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22100-6A530 |
2C..CT170..5F |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-64140 |
2C..CT17# NO.2 |
1 | ||
| 23273-64030 |
2C..CT17# NO.1 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-64140 |
2C..CT17# NO.2 |
1 | ||
| 23273-64030 |
2C..CT17# NO.1 |
1 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 95333-06020 |
2C..CT17# |
1 | ||
| 22295 - BRACKET, INJECTION PUMP CONNECTOR | ||||
| 22295-64010 |
2C..CT17# |
1 | ||
| 22295 - BRACKET, INJECTION PUMP CONNECTOR | ||||
| 22295-64010 |
2C..CT17# |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-64010 |
2C..CT17# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-64060 |
2C..CT17# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-64060 |
2C..CT17# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-64050 |
2C..CT17# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-64050 |
2C..CT17# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-64010 |
2C..CT17# |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-64010 |
2C..CT17# |
2 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 92122-60622 |
2C..CT17# NO.2 |
2 | ||
| 90116-06275 |
2C..CT17# NO.1 |
1 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 92122-60622 |
2C..CT17# NO.2 |
2 | ||
| 90116-06275 |
2C..CT17# NO.1 |
1 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 92122-60622 |
2C..CT17# NO.2 |
2 | ||
| 90116-06275 |
2C..CT17# NO.1 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23741-54010 |
2C..CT17# |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-54010 |
2C..CT17# |
2 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23764-64030 |
2C..CT17# |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-64040 |
2C..CT17# |
1 | ||
| 23910 - HEATER ASSY, FUEL | ||||
| 23910-64010 |
2C..CT17# |
1 | ||
| Common parts | ||||
| 90119-10033 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90467-13001 | ||||
| 91111-50620 | ||||
| 91621-40610 | ||||
| 91651-60820 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 8717 | ||||
