CT170-AEMES (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )2C

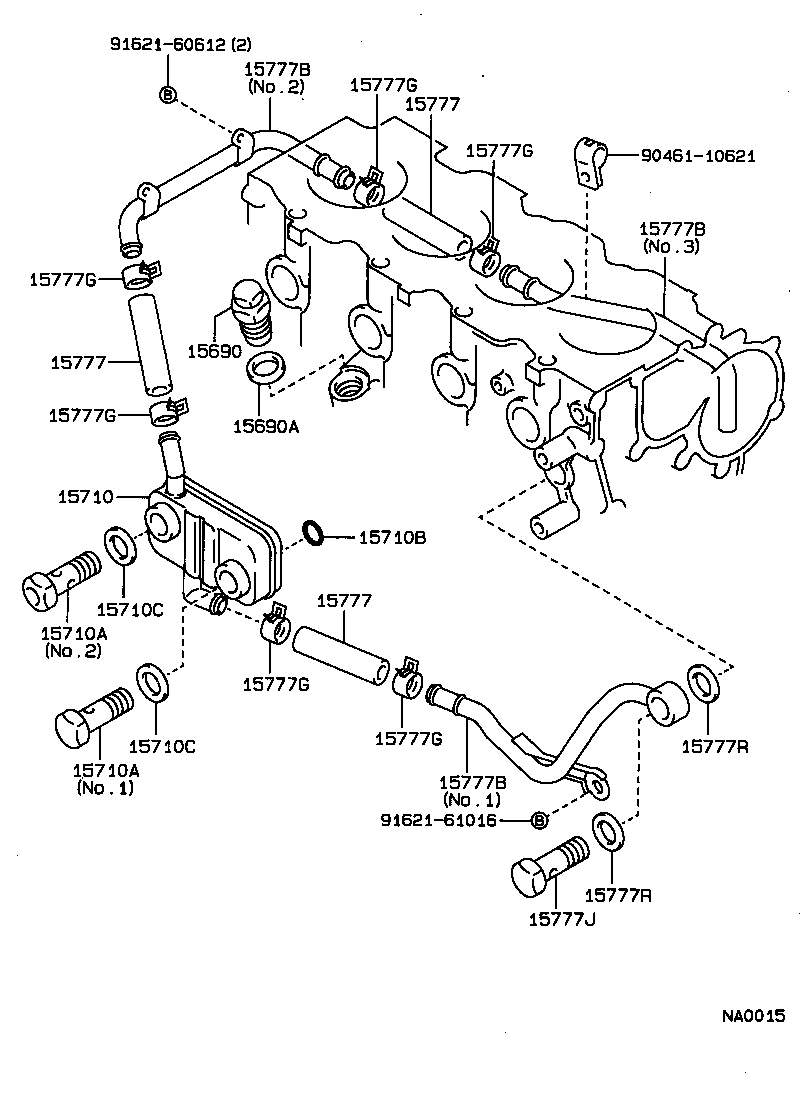

Click highlighted areas on diagram

diagram 15690 15690A 15710 15710A 15710A 15710B 15710C 15710C 15777 15777 15777 15777B 15777B 15777B 15777G 15777G 15777G 15777G 15777G 15777G 15777J 15777R 15777R 9046110621 9162160612 9162161016
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-64010

2C..CT17#

 1
15690A - GASKET(FOR OIL COOLER RELIEF VALVE)
90430-22003

2C..CT17#

 1
15710 - COOLER ASSY, OIL
15710-64010

2C..CT17#

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18009

2C..CT17#

NO.1

 1
90401-18011

2C..CT17#

NO.2

 1
15710A - BOLT, UNION(FOR OIL COOLER)
90401-18009

2C..CT17#

NO.1

 1
90401-18011

2C..CT17#

NO.2

 1
15710B - RING, O(FOR OIL COOLER)
90301-22002

2C..CT17#

 2
15710C - GASKET(FOR OIL COOLER)
90430-18012

2C..CT17#

 2
15710C - GASKET(FOR OIL COOLER)
90430-18012

2C..CT17#

 2
15777 - HOSE, OIL COOLER
90445-21006

2C..CT17#

 3
15777 - HOSE, OIL COOLER
90445-21006

2C..CT17#

 3
15777 - HOSE, OIL COOLER
90445-21006

2C..CT17#

 3
15777B - PIPE, OIL COOLER
15769-64010

2C..CT17#

NO.3

 1
15768-64031

2C..CT17#

NO.1

 1
15767-64010

2C..CT17#

NO.2

 1
15769-64010

2C..CT176..5F;2C..CT170..EXS,GX

NO.3

 1
15767-64010

2C..CT17#

NO.2

 1
15769-64010

2C..CT17#

NO.3

 1
15768-64031

2C..CT17#

NO.1

 1
15768-64070

2C..CT17#

NO.1

 1
15777B - PIPE, OIL COOLER
15769-64010

2C..CT17#

NO.3

 1
15768-64031

2C..CT17#

NO.1

 1
15767-64010

2C..CT17#

NO.2

 1
15769-64010

2C..CT176..5F;2C..CT170..EXS,GX

NO.3

 1
15767-64010

2C..CT17#

NO.2

 1
15769-64010

2C..CT17#

NO.3

 1
15768-64031

2C..CT17#

NO.1

 1
15768-64070

2C..CT17#

NO.1

 1
15777B - PIPE, OIL COOLER
15769-64010

2C..CT17#

NO.3

 1
15768-64031

2C..CT17#

NO.1

 1
15767-64010

2C..CT17#

NO.2

 1
15769-64010

2C..CT176..5F;2C..CT170..EXS,GX

NO.3

 1
15767-64010

2C..CT17#

NO.2

 1
15769-64010

2C..CT17#

NO.3

 1
15768-64031

2C..CT17#

NO.1

 1
15768-64070

2C..CT17#

NO.1

 1
15777G - CLAMP OR CRIP, HOSE
90467-20005

2C..CT17#

 6
15777G - CLAMP OR CRIP, HOSE
90467-20005

2C..CT17#

 6
15777G - CLAMP OR CRIP, HOSE
90467-20005

2C..CT17#

 6
15777G - CLAMP OR CRIP, HOSE
90467-20005

2C..CT17#

 6
15777G - CLAMP OR CRIP, HOSE
90467-20005

2C..CT17#

 6
15777G - CLAMP OR CRIP, HOSE
90467-20005

2C..CT17#

 6
15777J - BOLT, UNION(FOR OIL COOLER PIPE)
90401-20004

2C..CT17#

 1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20004

2C..CT17#

 2
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
90430-20004

2C..CT17#

 2
Common parts
90461-10621
91621-60612
91621-61016
