CT150-TEPNS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

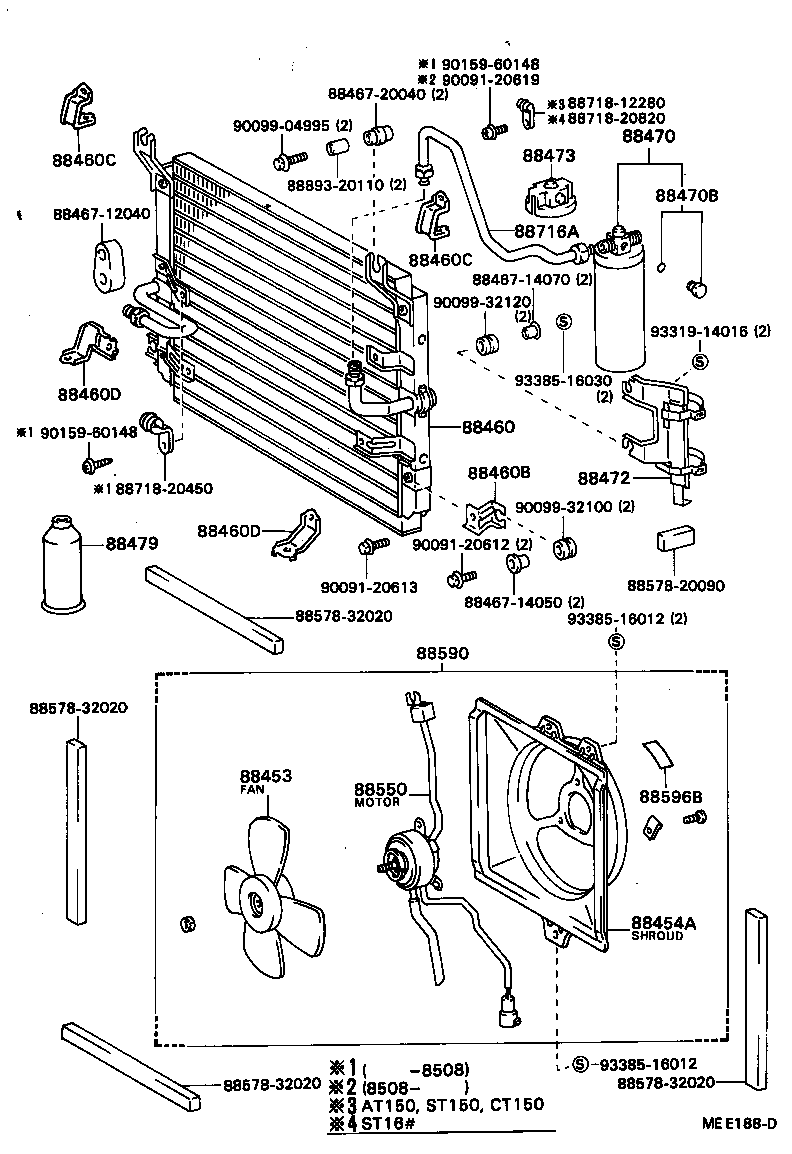

ILLUST NO. 1 OF 2(8310- )

Click highlighted areas on diagram

diagram 88453 88454A 88460 88460B 88460C 88460C 88460D 88460D 8846712040 8846714050 8846714070 8846720040 88470 88470B 88472 88473 88479 88550 8857820090 8857832020 8857832020 8857832020 8857832020 88590 88596B 88716A 8871812280 8871820450 8871820820 8889320110 9009120612 9009120613 9009120619 9009904995 9009932100 9009932120 9015960148 9015960148 9331914016 9338516012 9338516012 9338516030
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-32010

CT150,ST150

 1
88453-32020

CT150,ST150

 1
88454A - SHROUD, FAN
88454-12060

CT150

 1
88454-12061

CT150

 1
88460 - CONDENSER ASSY, COOLER
88460-20210

AT150,CT150,ST150

 1
88460-20180

AT150,CT150,ST150

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-20330

AT150,CT150,ST150

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

AT150,CT150,ST150,16#

 1
88470B - BOLT, FUSE
88475-12020

AT150,CT150,ST150,16#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010

AT150,CT150,ST150

 1
88473 - CAP, COOLER RECEIVER TANK
88894-12111

AT150,CT150,ST150,16#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AT150,CT150,ST150,16#

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20020

AT150,CT150,ST150

 1
88550-12090

AT150,CT150,ST150

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20040

CT150

 1
88596B - PLATE, CAUTION, NO.1
88596-14010

AT150,CT150

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20640

AT150,CT150,ST150

 1
Common parts
88467-12040
88467-14050
88467-14070
88467-20040
88578-20090
88578-32020
88718-12280
88718-20450
88718-20820
88893-20110
90091-20612
90091-20613
90091-20619
90099-04995
90099-32100
90099-32120
90159-60148
93319-14016
93385-16012
93385-16030

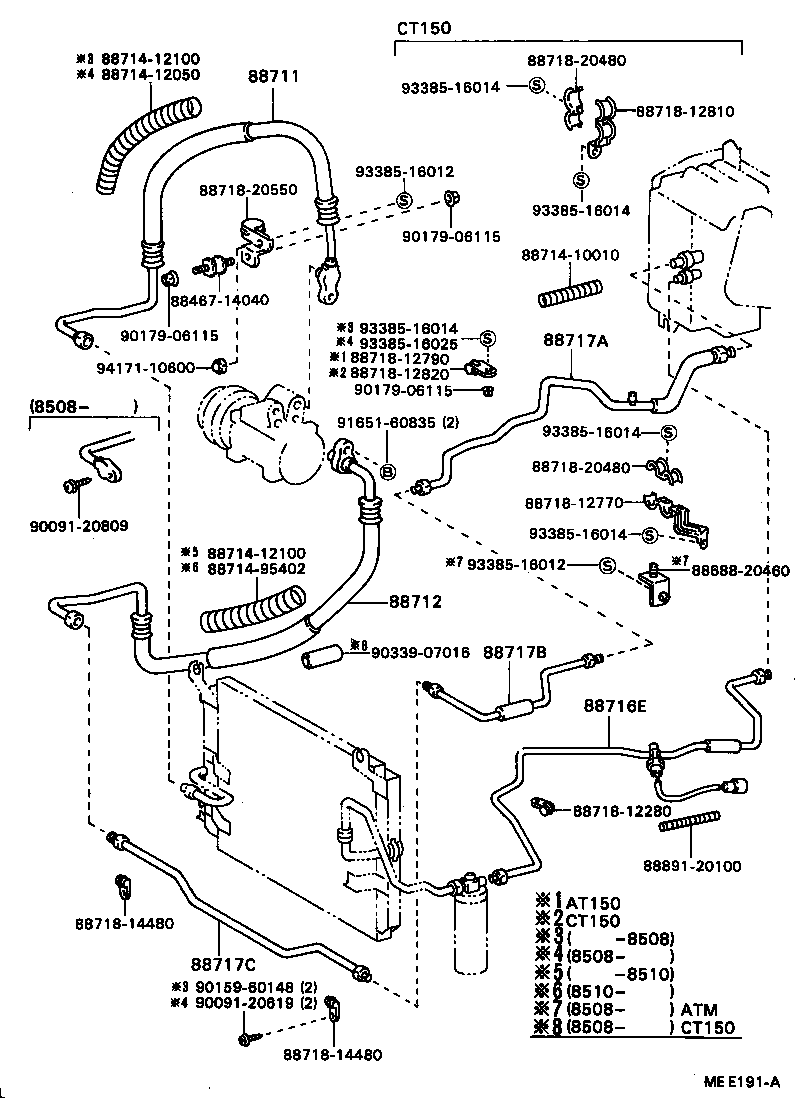

ILLUST NO. 2 OF 2(8310- )AT150,CT150

Click highlighted areas on diagram

diagram 8846714040 8868820460 88711 88712 8871410010 8871412050 8871412100 8871412100 8871495402 88716E 88717A 88717B 88717C 8871812280 8871812770 8871812790 8871812810 8871812820 8871814480 8871814480 8871820480 8871820480 8871820550 8889120100 9009120619 9009120809 9015960148 9017906115 9017906115 9017906115 9033907016 9165160835 9338516012 9338516012 9338516014 9338516014 9338516014 9338516014 9338516014 9338516025 9417110600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20380

CT150

 1
88711-20480

CT150

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20460

CT150,ST150

 1
88712-20610

CT150,ST150

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20760

CT150..4FC

 1
88710-20040

CT150..4FC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20380

CT150

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-20350

AT150,CT150,ST150

 1
88717-20550

AT150,CT150,ST150

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-20560

AT150,CT150,ST150

 1
88717-20360

AT150,CT150,ST150

 1
Common parts
88467-14040
88688-20460
88714-10010
88714-12050
88714-12100
88714-95402
88718-12280
88718-12770
88718-12790
88718-12810
88718-12820
88718-14480
88718-20480
88718-20550
88891-20100
90091-20619
90091-20809
90159-60148
90179-06115
90339-07016
91651-60835
93385-16012
93385-16014
93385-16025
94171-10600
