CT150-TEPNS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )

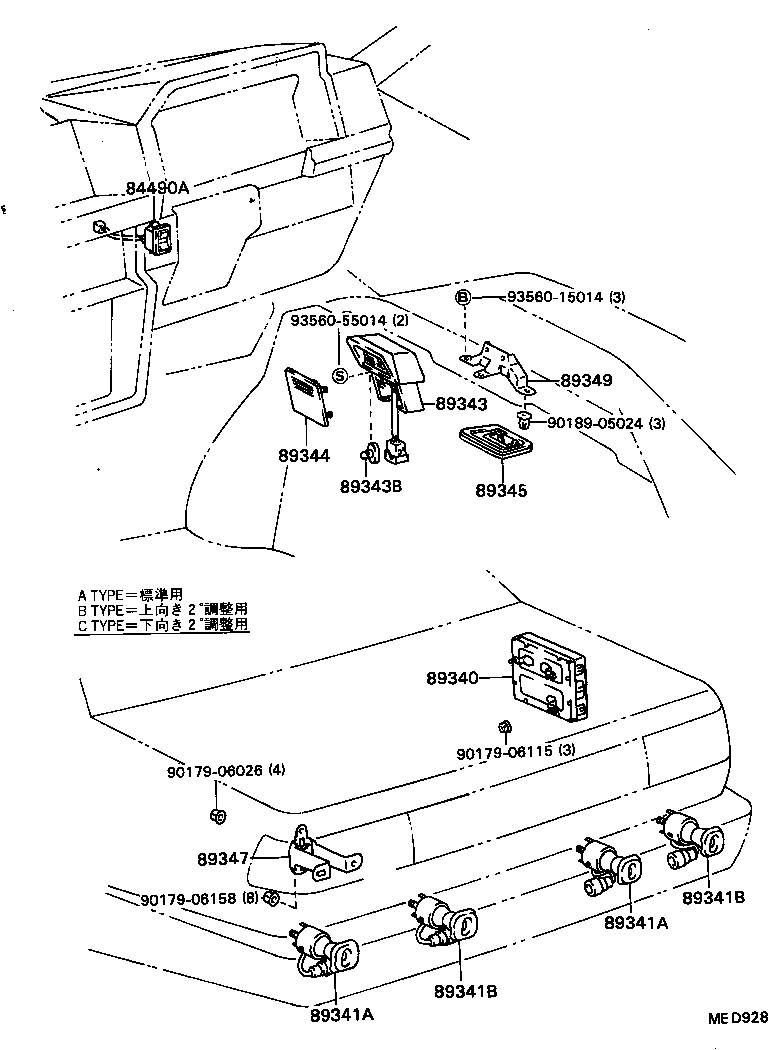

Click highlighted areas on diagram

diagram 84490A 89340 89341A 89341A 89341B 89341B 89343 89343B 89344 89345 89347 89349 9017906026 9017906115 9017906158 9018905024 9356015014 9356055014
Part # Description Qty Price
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-20010

AT150,CT150,ST150..4D..GX

 1
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-20020

AT150,CT150,ST150..4D..GX

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-20020

AT150,CT150,ST150..4D..GX

SENDER

 2
89341A - SENSOR, ULTRASONIC, NO.1
89341-20020

AT150,CT150,ST150..4D..GX

SENDER

 2
89341B - SENSOR, ULTRASONIC, NO.2
89342-20020

AT150,CT150,ST150..4D..GX

RECIVER

 2
89341B - SENSOR, ULTRASONIC, NO.2
89342-20020

AT150,CT150,ST150..4D..GX

RECIVER

 2
89343 - CLUSTER, REAR CLEARANCE WARNING DISPLAY
89343-2003002

AT150,CT150,ST150..4D..GX

DEEP MAROON,RED/MAROON,TRIM3#

 1
89343-2003004

AT150,CT150,ST150..4D..GX

BLUE,BLUE,TRIM8#

 1
89343-2003003

AT150,CT150,ST150..4D..GX

SHADOW GRAY,GRAY,TRIM1#

 1
89343B - BULB (FOR REAR CLEARANCE WARNING DISPLAY)
83103-14020

AT150,CT150,ST150..4D..GX

 9
89344 - ORNAMENT, REAR CLEARANCE WARNING DISPLAY
89344-2002002

AT150,CT150,ST150..4D..GX

DEEP MAROON,RED/MAROON,TRIM3#

 1
89344-2002004

AT150,CT150,ST150..4D..GX

BLUE,BLUE,TRIM8#

 1
89344-2002003

AT150,CT150,ST150..4D..GX

SHADOW GRAY,GRAY,TRIM1#

 1
89345 - SPACER, BACK SONAR DISPLAY
89345-20020

AT150,CT150,ST150..4D..GX

 1
89347 - RETAINER, ULTRASONIC SENSOR, W/ADJUSTER
89347-20020

AT150,CT150,ST150..4D..GX

A TYPE

 4
89347-20040

AT150,CT150,ST150..4D..GX

C TYPE

 4
89347-20030

AT150,CT150,ST150..4D..GX

B TYPE

 4
89349 - BRACKET, BACK SONAR DISPLAY MOUNTING
89349-20010

AT150,CT150,ST150..4D..GX

 1
Common parts
90179-06026
90179-06115
90179-06158
90189-05024
93560-15014
93560-55014
