CT150-TEMNS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 2CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )2CL

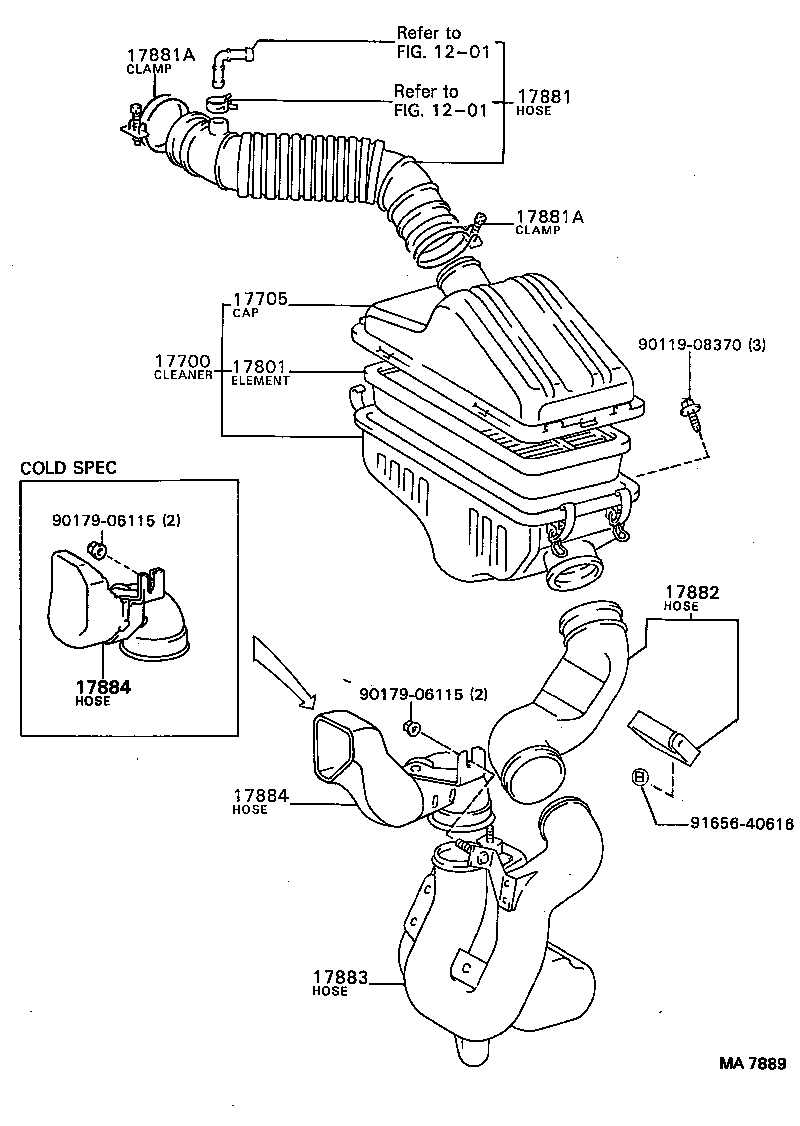

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17801 17881 17881A 17881A 17882 17883 17884 17884 9011908370 9017906115 9017906115 9165640616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64110

2CL..CT150

 1
17700-64120

2CL..CT150

 1
17700-64110

2CL..CT150

 1
17700-64111

2CL..CT150

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64080

2CL..CT150

 1
17705-64030

2CL..CT150

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64020

2CL..CT150

 1
17801-64010

2CL..CT150

 1
17801-64010

2CL..CT150

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-64030

2CL..CT150

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

2CL..CT150

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

2CL..CT150

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-12050

2CL..CT150

 1
17883 - HOSE, AIR CLEANER, NO.3
17880-12030

2CL..CT150

 1
17884 - HOSE, AIR CLEANER, NO.4
17884-20010

2CL..CT150

 1
17884-20030

2CL..CT150

COLD SPEC

 1
17884 - HOSE, AIR CLEANER, NO.4
17884-20010

2CL..CT150

 1
17884-20030

2CL..CT150

COLD SPEC

 1
Common parts
90119-08370
90179-06115
91656-40616
Linked diagrams
1201
