CT150-TEMES (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 2CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )CT150

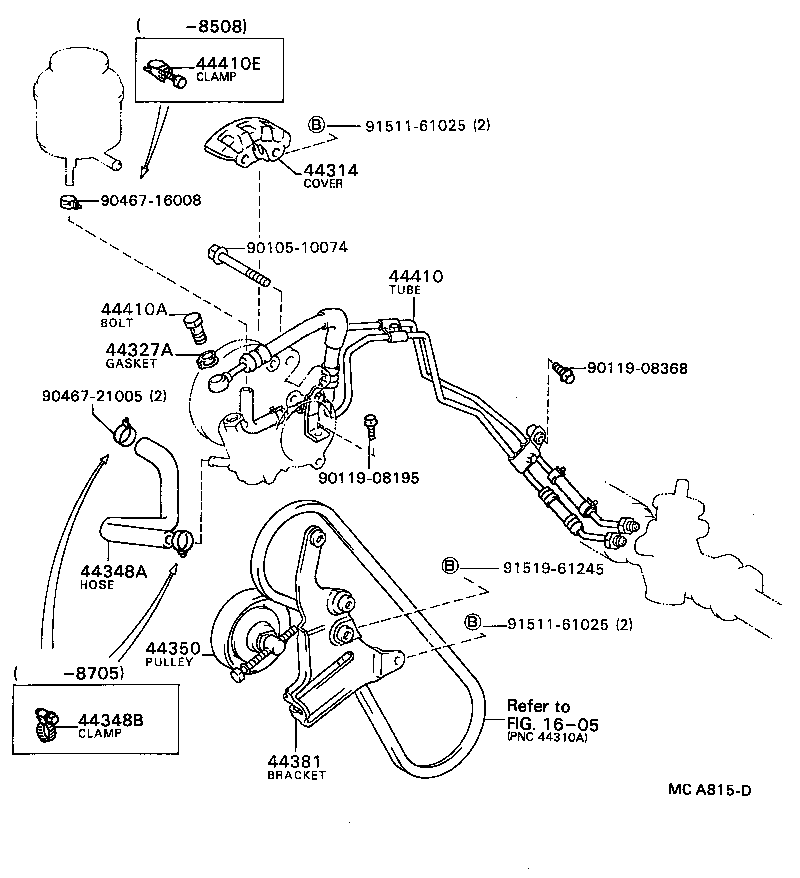

Click highlighted areas on diagram

diagram 1605 44314 44327A 44348A 44348B 44350 44381 44410 44410A 44410E 9010510074 9011908195 9011908368 9046716008 9046721005 9151161025 9151161025 9151961245
Part # Description Qty Price
44314 - COVER, PULLEY
44314-12010

CT150

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-12020

CT150

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

CT150,ST150,16#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12050

CT150

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-12020

CT150

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-20160

CT150

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT150,CT150..EXS,GX

 1
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

CT150

 1
Common parts
90105-10074
90119-08195
90119-08368
90467-16008
90467-21005
91511-61025
91519-61245
Linked diagrams
1605
