CT147V-TXMDS (1982)
Toyota Corona
Production
Jan 1982
-
Dec 1987
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )SED,V..DLX,GX,GXA,STD

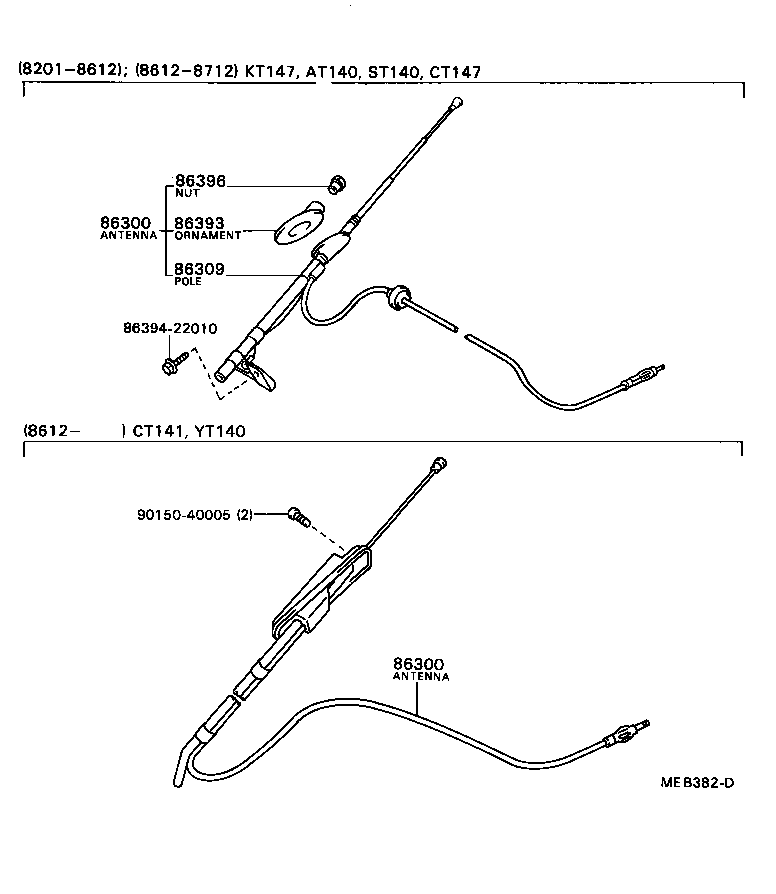

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20350 |
AT140,CT14#,KT147,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD) |
1 | ||
| 86300-20350 |
AT140,CT147,KT147,ST140 |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20350 |
AT140,CT14#,KT147,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD) |
1 | ||
| 86300-20350 |
AT140,CT147,KT147,ST140 |
1 | ||
| 86309 - POLE SUB-ASSY, PILLAR ANTENNA | ||||
| 86309-20090 |
AT140,CT14#,KT147,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD) |
1 | ||
| 86309-20090 |
AT140,CT147,KT147,ST140 |
1 | ||
| 86393 - ORNAMENT, ANTENNA | ||||
| 86392-20010 |
AT140,CT14#,KT147,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD) |
1 | ||
| 86392-20010 |
AT140,CT147,KT147,ST140 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-14010 |
AT140,CT14#,KT147,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD) |
1 | ||
| 86396-14010 |
AT140,CT147,KT147,ST140 |
1 | ||
| Common parts | ||||
| 86394-22010 | ||||
| 90150-40005 | ||||
