CT147V-TXMDS (1982)
Toyota Corona

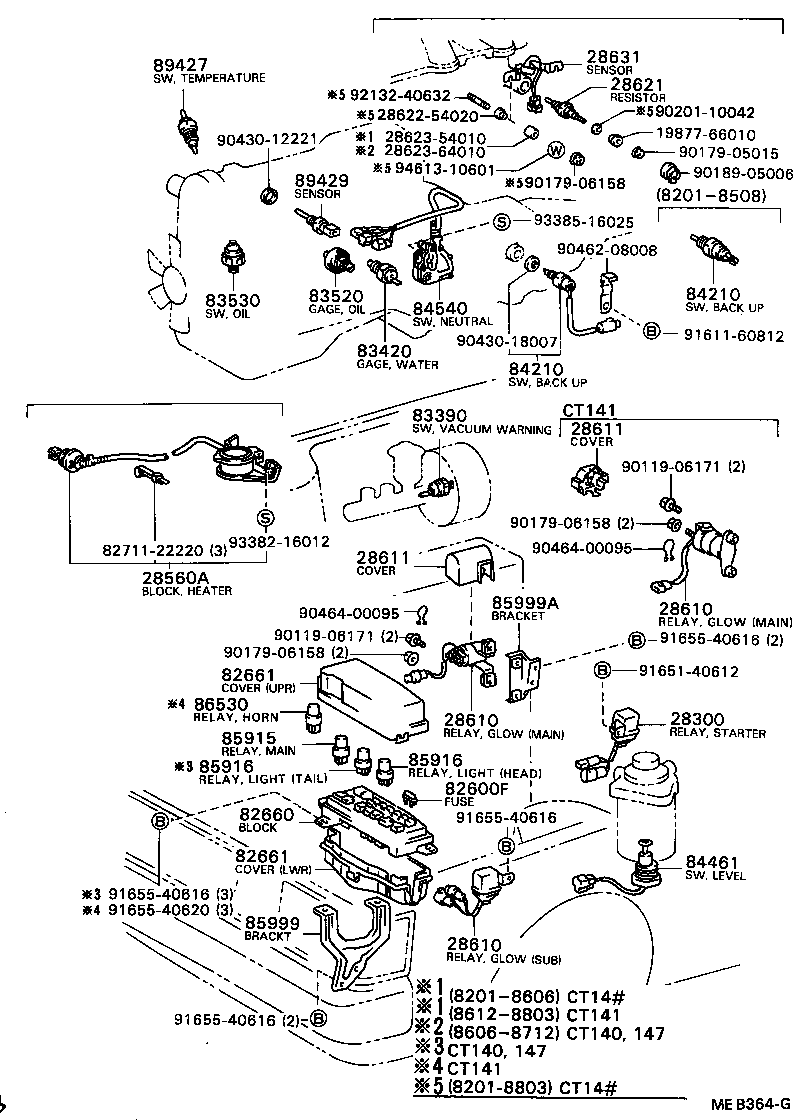

ILLUST NO. 1 OF 5(8201-9111)CT14#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28560A - BLOCK, HEATER | ||||
| 28560-69015 |
1C..CT14# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64010 |
1C..CT140,147 SUB |
1 | ||
| 28610-64020 |
1C..CT140,147 MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64010 |
1C..CT140,147 SUB |
1 | ||
| 28610-64020 |
1C..CT140,147 MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64010 |
1C..CT140,147 SUB |
1 | ||
| 28610-64020 |
1C..CT140,147 MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-64010 |
1C..CT140,147 |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-64010 |
1C..CT140,147 |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64010 |
1C..CT14# |
1 | ||
| 28621-64020 |
1C..CT14# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-64010 |
1C,2C..CT14# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 7.5A,7.5A |
6 | ||
| 90982-09003 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 15A,15A |
11 | ||
| 90982-09004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20A,黄,20A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22091 |
AT140,CT14#,RT141,ST140,TT14#,YT140 SUMITOMO |
1 | ||
| 82660-22100 |
AT140,CT14#,RT141,ST140,TT14#,YT140 YAZAKI |
1 | ||
| 82660-22091 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# SUMITOMO |
1 | ||
| 82660-22100 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# YAZAKI |
1 | ||
| 82660-20100 |
AT14#,CT147,KT147,ST140,TT142 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,YAZAKI |
1 | ||
| 82661-22040 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22011 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,SUMITOMO |
1 | ||
| 82661-22080 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22060 |
AT140,CT14#,KT147,ST140,YT140 LWR |
1 | ||
| 82661-22070 |
AT140,CT14#,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22060 |
AT140,CT147,KT147,ST140 LWR |
1 | ||
| 82661-20020 |
AT14#,CT14#,KT147,ST140,TT142,YT140 UPR |
1 | ||
| 82661-20020 |
AT140,CT147,KT147,ST140 UPR |
1 | ||
| 82661-22060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,YAZAKI |
1 | ||
| 82661-22040 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22011 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,SUMITOMO |
1 | ||
| 82661-22080 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22060 |
AT140,CT14#,KT147,ST140,YT140 LWR |
1 | ||
| 82661-22070 |
AT140,CT14#,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22060 |
AT140,CT147,KT147,ST140 LWR |
1 | ||
| 82661-20020 |
AT14#,CT14#,KT147,ST140,TT142,YT140 UPR |
1 | ||
| 82661-20020 |
AT140,CT147,KT147,ST140 UPR |
1 | ||
| 82661-22060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,YAZAKI |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CT14# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
AT140,CT14#,ST140,TT14#,YT140 NIPPONDENSO |
1 | ||
| 83420-20020 |
AT140,CT14#,ST140,TT14#,YT140 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
CT14#..DLX,GX,STD |
1 | ||
| 83530-30042 |
CT14# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
CT14#..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
CT14#..5F |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-14030 |
CT140,147 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NIPPONDENSO,IGNITION RELAY |
1 | ||
| 90987-02004 |
AT140,CT147,KT147,ST140 NIPPONDENSO,IGNITION RELAY |
1 | ||
| 90987-02002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MARUKO,IGNITION RELAY |
1 | ||
| 90987-02002 |
AT140,CT147,KT147,ST140 MARUKO,IGNITION RELAY |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT147,KT147,ST140 TAIL |
1 | ||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 90987-01003 |
AT14#,CT14#,KT147,ST140,TT142,YT140 TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT147,KT147,ST140 TAIL |
1 | ||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 90987-01003 |
AT14#,CT14#,KT147,ST140,TT142,YT140 TAIL |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-14080 |
CT140,147 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85959-20010 |
CT14# GLOW PLUG MAIN RELAY |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12051 |
CT14#,ST140 HEATER IDLE UP |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CT14# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 28623-64010 | ||||
| 82711-22220 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90462-08008 | ||||
| 90464-00095 | ||||
| 91611-60812 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 92132-40632 | ||||
| 93382-16012 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||
ILLUST NO. 2 OF 5(8201- )SED,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19345 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84112-19285 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19125 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84140-19145 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-14180 |
CT147,KT147,TT147..DLX,STD |
1 | ||
| 84310-14400 |
AT140,CT14#,ST140,TT14#,YT140..DLX,GTT,GX,GXA,SX W/*IW |
1 | ||
| 84310-14180 |
CT14#,TT147..DLX,STD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84312-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19095 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84332-19115 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-12080 |
AT140,CT147,KT147,ST140 |
1 | ||
| 84330-12080 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27030 |
AT140,CT14#,KT147,ST140,TT14#,YT140..DLX,GX,GXA,STD,SX |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19325 |
CT14#,TT147..DLX,STD TOKAIRIKA |
1 | ||
| 84652-14180 |
AT140,CT14#,ST140,TT14#,YT140..DLX,GTT,GX,GXA,SX MATSUSHITA,W/*IW |
1 | ||
| 84652-19575 |
AT140,CT14#,ST140,TT14#,YT140..DLX,GTT,GX,GXA,SX TOKAIRIKA,W/*IW |
1 | ||
| 84652-14170 |
CT147,KT147,TT147..DLX,STD MATSUSHITA |
1 | ||
| 84652-14170 |
CT14#,TT147..DLX,STD MATSUSHITA |
1 | ||
| 84652-19325 |
CT147,KT147,TT147..DLX,STD TOKAIRIKA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-14050 |
CT147,KT147,TT147..DLX,GX |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20120 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14160 |
CT147,KT147,TT147,YT140..(3FC,4F,5F)..(DLX,GX) |
1 | ||
| 84790-14160 |
CT147,KT147..DLX,GX |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14160 |
CT147,KT147,TT147,YT140..(3FC,4F,5F)..(DLX,GX) |
1 | ||
| 84790-14160 |
CT147,KT147..DLX,GX |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
CT147,KT147,TT147,YT140 12V 1.12W,12V 1.12W |
1 | ||
| 84999-10110 |
CT147,KT147 12V 1.12W,12V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
CT147,KT147,TT147,YT140 12V 1.12W,12V 1.12W |
1 | ||
| 84999-10110 |
CT147,KT147 12V 1.12W,12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20170 |
AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX) |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
AT140,CT14#,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-20050 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14550 | ||||
| 82711-22270 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-55012 | ||||
| 93566-55512 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64010 |
1C..CT14# |
1 | ||
| 28521-64011 |
1C..CT14# |
1 | ||
| 28521-64130 |
1C..CT14# |
1 | ||
| 28521-64131 |
1C..CT14# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-64010 |
1C..CT14# |
1 | ||
| 28521-64011 |
1C..CT14# |
1 | ||
| 28521-64130 |
1C..CT14# |
1 | ||
| 28521-64131 |
1C..CT14# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AT14#,CT147,KT147,ST140,TT142 |
1 | ||
| 81980-22070 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 81980-16010 |
AT140,CT147,KT147,ST140 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 7.5A,7.5A |
6 | ||
| 90982-09003 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 15A,15A |
11 | ||
| 90982-09004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20A,黄,20A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30A |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-14130 |
AT14#,CT14#,KT147,ST140,TT142,YT140 NO.1(DRIVER SIDE) |
1 | ||
| 82660-22010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NO.2(ASSISTANT SIDE) |
1 | ||
| 82660-22010 |
AT140,CT147,KT147,ST140 NO.2(ASSISTANT SIDE) |
1 | ||
| 82660-14130 |
AT140,CT147,KT147,ST140 NO.1(DRIVER SIDE) |
1 | ||
| 82660-24010 |
AT140,CT14#,RT141,ST140,TT14#,YT140 NO.1(DRIVER SIDE) |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-14130 |
AT14#,CT14#,KT147,ST140,TT142,YT140 NO.1(DRIVER SIDE) |
1 | ||
| 82660-22010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NO.2(ASSISTANT SIDE) |
1 | ||
| 82660-22010 |
AT140,CT147,KT147,ST140 NO.2(ASSISTANT SIDE) |
1 | ||
| 82660-14130 |
AT140,CT147,KT147,ST140 NO.1(DRIVER SIDE) |
1 | ||
| 82660-24010 |
AT140,CT14#,RT141,ST140,TT14#,YT140 NO.1(DRIVER SIDE) |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AT140,CT147,KT147,ST140 |
1 | ||
| 85913-30020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CT147 NIPPONDENSO |
1 | ||
| 90987-02002 |
CT147 MARUKO |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
CT147 NIPPONDENSO |
1 | ||
| 90987-02002 |
CT147 MARUKO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NIPPONDENSO,IGNITION RELAY |
1 | ||
| 90987-02004 |
AT140,CT147,KT147,ST140 NIPPONDENSO,IGNITION RELAY |
1 | ||
| 90987-02002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MARUKO,IGNITION RELAY |
1 | ||
| 90987-02002 |
AT140,CT147,KT147,ST140 MARUKO,IGNITION RELAY |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT147,KT147,ST140 TAIL |
1 | ||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 90987-01003 |
AT14#,CT14#,KT147,ST140,TT142,YT140 TAIL |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
AT140,CT14#,ST140,TT14#,YT140..DLX,GTT,GX,GXA,SX |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
AT140,CT14#,ST140,TT14#,YT140..DLX,GTT,GX,GXA,SX |
1 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90119-06061 | ||||
| 90170-06003 | ||||
| 90189-05010 | ||||
| 90189-06018 | ||||
| 91651-40612 | ||||
| 93385-16016 | ||||
| 93540-15014 | ||||
| 93540-55014 | ||||
| 93560-55014 | ||||
ILLUST NO. 4 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
2 | ||
| 84231-20080 |
AT140,CT147,KT147,ST140 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
2 | ||
| 84231-20080 |
AT140,CT147,KT147,ST140 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95701 |
CT147,KT147 |
2 | ||
| 84230-95701 |
CT147,TT147 |
2 | ||
| 84230-91C01 |
CT147,KT147,TT147 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-95701 |
CT147,KT147 |
2 | ||
| 84230-95701 |
CT147,TT147 |
2 | ||
| 84230-91C01 |
CT147,KT147,TT147 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14# |
1 | ||
| Common parts | ||||
| 84739-30020 | ||||
| 90119-06390 | ||||
| 90164-40005 | ||||
| 90179-06070 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 90461-08160 | ||||
| 90463-08205 | ||||
| 90463-12570 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93315-14014 | ||||
| 93540-54012 | ||||
| 93567-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
| 8513 | ||||
ILLUST NO. 5 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29595 |
CT147 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CT147 |
1 | ||
| 83361-20030 |
CT147,RT141,TT14# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
CT147 |
1 | ||
| 83361-20030 |
CT147,RT141,TT14# |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-91701 |
CT147,KT147,TT147 |
1 | ||
| Common parts | ||||
| 90170-10179 | ||||
| 90179-06070 | ||||
| 90179-06184 | ||||
| 90560-10008 | ||||
| 91651-40612 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
