CT141-TEMRS (1986)

Toyota Corona

Production Dec 1986 - Nov 1991
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612-9111)CT141

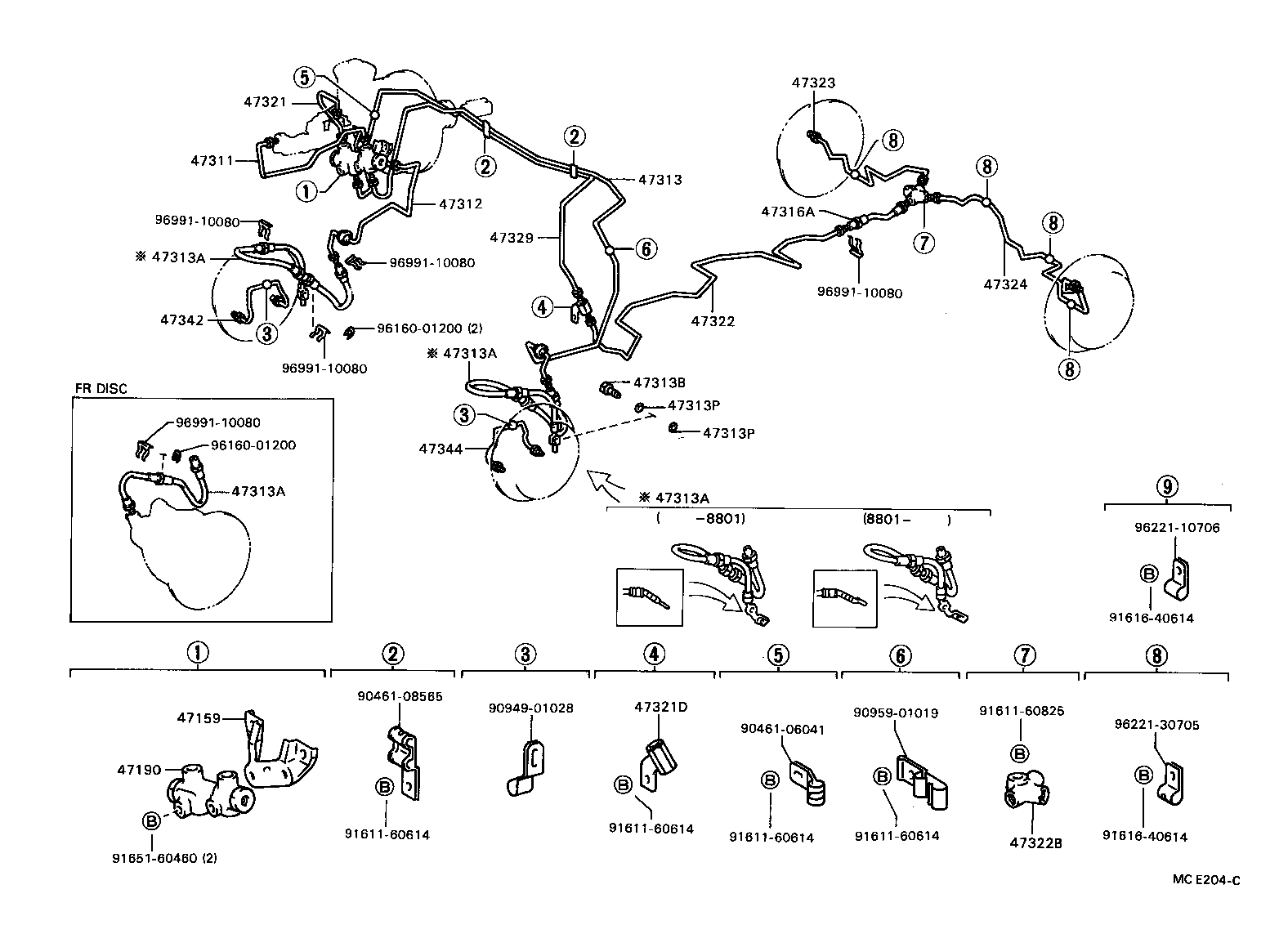

Click highlighted areas on diagram

diagram 47159 47190 47311 47312 47313 47313A 47313A 47313A 47313A 47313B 47313P 47313P 47316A 47321 47321D 47322 47322B 47323 47324 47329 47342 47344 9046106041 9046108565 9094901028 9095901019 9161160614 9161160614 9161160614 9161160614 9161160825 9161640614 9161640614 9165160460 9616001200 9616001200 9622110706 9622130705 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-14020

AT140,CT14#,KT147,ST140,TT147,YT140

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22040

CT141,YT140

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

AT14#,CT14#,KT147,RT141,ST140,TT147

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20180

AT14#,CT14#,KT147,RT141,ST140,TT147

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02529

CT141,YT140

FR DRUM BRAKE,LH

 1
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02528

CT141,YT140

FR DRUM BRAKE,RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02529

CT141,YT140

FR DRUM BRAKE,LH

 1
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02528

CT141,YT140

FR DRUM BRAKE,RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02529

CT141,YT140

FR DRUM BRAKE,LH

 1
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02528

CT141,YT140

FR DRUM BRAKE,RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02529

CT141,YT140

FR DRUM BRAKE,LH

 1
90947-02426

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR DISK BRAKE

 2
90947-02528

CT141,YT140

FR DRUM BRAKE,RH

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

AT140,CT140,141,ST140,YT140

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14100

CT14#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10056

AT140,CT14#,ST140

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14180

CT140,141

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

AT140,CT14#,KT147,ST140,TT147,YT140

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-14042

AT140,CT140,141,ST140

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-14052

AT140,CT140,141,ST140

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-14010

AT140,CT14#,ST140

 1
Common parts
90461-06041
90461-08565
90949-01028
90959-01019
91611-60614
91611-60825
91616-40614
91651-60460
96160-01200
96221-10706
96221-30705
96991-10080
