CT140-TEPNS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

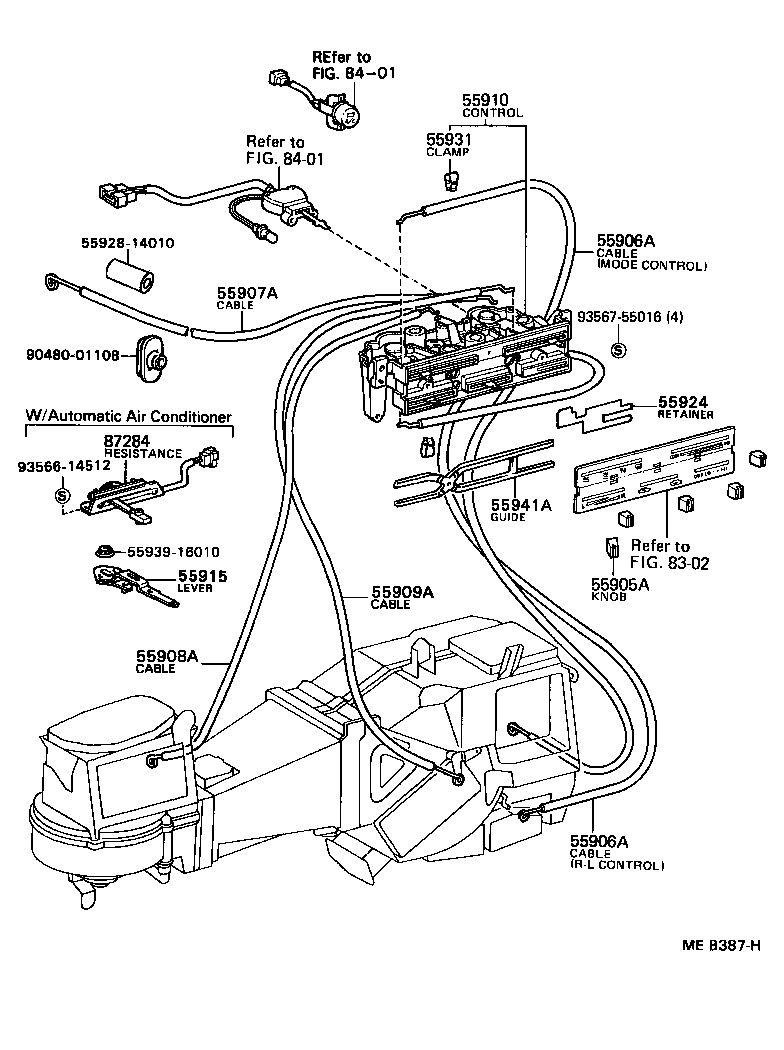

ILLUST NO. 1 OF 3(8201- )

Click highlighted areas on diagram

diagram 55905A 55906A 55906A 55907A 55908A 55909A 55910 55915 55924 5592814010 55931 5593916010 55941A 8302 8401 8401 87284 9048001108 9356614512 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12060

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 5
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20140

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

R-L CONTROL

 1
55906-20120

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

MODE CONTROL

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20140

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

R-L CONTROL

 1
55906-20120

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

MODE CONTROL

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20130

AT14#,CT14#,KT147,RT141,ST140,TT14#..SED,V

WIRE:L=670,TUBE:L=615

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20070

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

WIRE:L=650,TUBE:L=595

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

WIRE:L=620,TUBE:L=565

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20241

AT140,CT14#,RT141,ST140,TT14#..SED,V

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 5
55941A - GUIDE, HEATER CONTROL
55941-20040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
Common parts
55928-14010
55939-16010
90480-01108
93566-14512
93567-55016
Linked diagrams
8302
8401

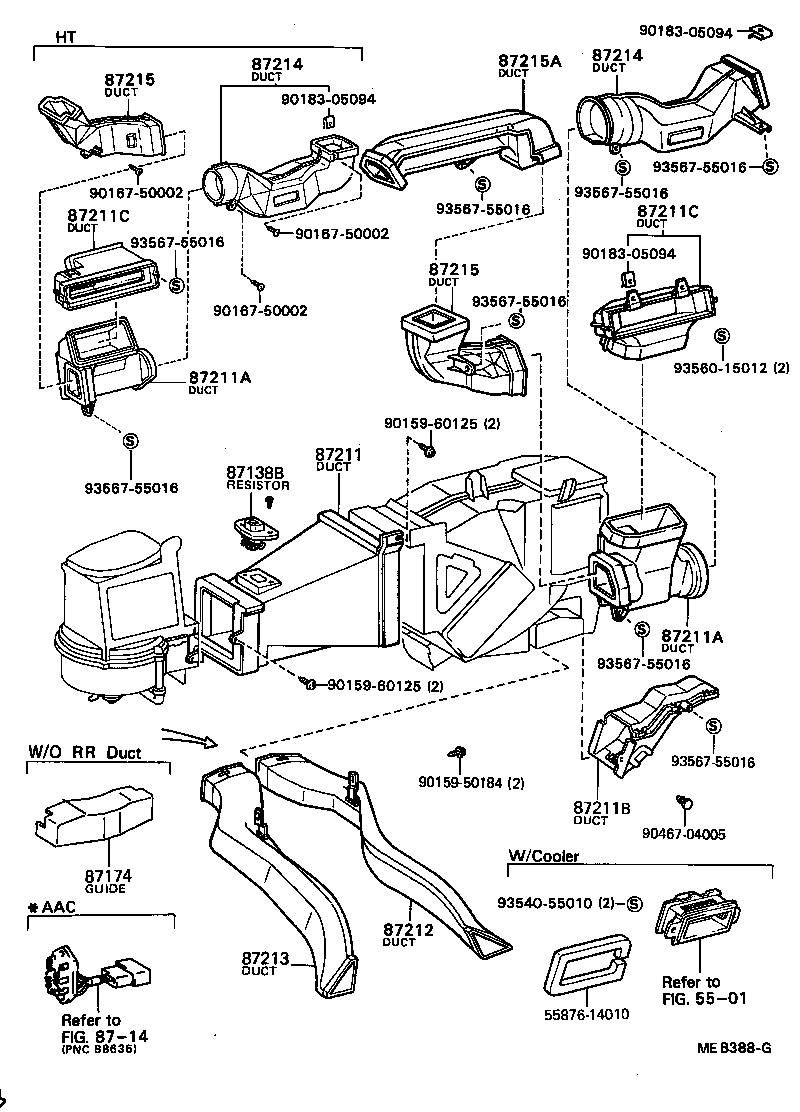

ILLUST NO. 2 OF 3(8201- )

Click highlighted areas on diagram

diagram 5501 5587614010 87138B 8714 87174 87211 87211A 87211A 87211B 87211C 87211C 87212 87213 87214 87214 87215 87215 87215A 9015950184 9015960125 9015960125 9016750002 9016750002 9016750002 9018305094 9018305094 9018305094 9046704005 9354055010 9356015012 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
87138B - RESISTOR, HEATER BLOWER
87138-24010

AT140,CT14#,RT141,ST140,TT14#,YT140

W/O *AAC

 1
87211 - DUCT, AIR, NO.1
87201-24031

AT140,CT14#,RT141,ST140,TT14#

 1
87211A - DUCT, AIR, NO.2
87201-14100

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
87211A - DUCT, AIR, NO.2
87201-14100

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
87211B - DUCT, AIR, NO.3
87201-24020

AT14#,CT140,147,RT141,ST140,TT14#

 1
87211C - DUCT, AIR, NO.4
55086-20030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
87211C - DUCT, AIR, NO.4
55086-20030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
87212 - DUCT, AIR, REAR NO.1
87212-24010

AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..(3FC,4F,4FC,5F)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)..05S

 1
87213 - DUCT, AIR, REAR NO.2
87213-24010

AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..(3FC,4F,4FC,5F)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)..05S

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-14110

AT14#,CT14#,KT147,RT141,ST140,TT14#..SED,V

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-14110

AT14#,CT14#,KT147,RT141,ST140,TT14#..SED,V

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-20040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-20040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-20010

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

 1
Common parts
55876-14010
90159-50184
90159-60125
90167-50002
90183-05094
90467-04005
93540-55010
93560-15012
93567-55016
Linked diagrams
5501
8714
