CT140-TEPNS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

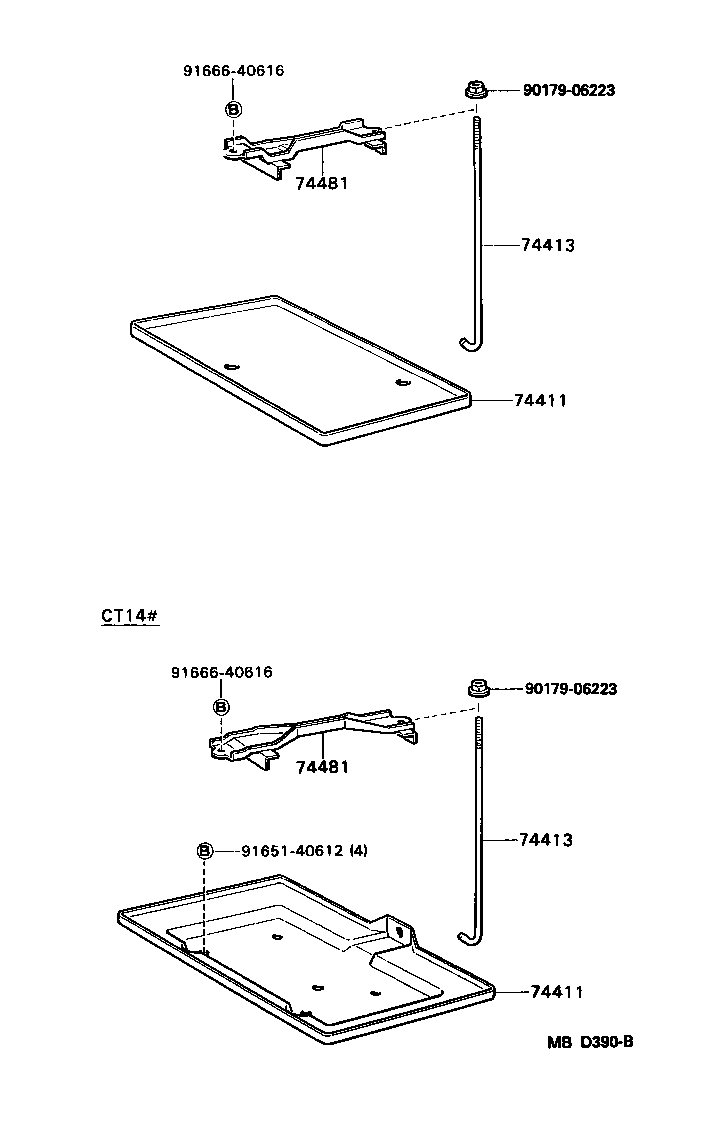

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74481 74481 9017906223 9017906223 9165140612 9166640616 9166640616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-14080

CT14#

95D31L(NX120-7L)

 1
74411-14070

CT14#

55D23L,80D26L(NX110-5L)

 1
74411 - CARRIER, BATTERY
74411-14080

CT14#

95D31L(NX120-7L)

 1
74411-14070

CT14#

55D23L,80D26L(NX110-5L)

 1
74413 - BOLT, BATTERY CLAMP
74451-30060

CT14#

 1
74413 - BOLT, BATTERY CLAMP
74451-30060

CT14#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14240

CT14#

55D23L,80D26L(NX110-5L)

 1
74404-14280

CT14#

95D31L(NX120-7L)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14240

CT14#

55D23L,80D26L(NX110-5L)

 1
74404-14280

CT14#

95D31L(NX120-7L)

 1
Common parts
90179-06223
91651-40612
91666-40616
