CT140-TEPNS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )SED,V

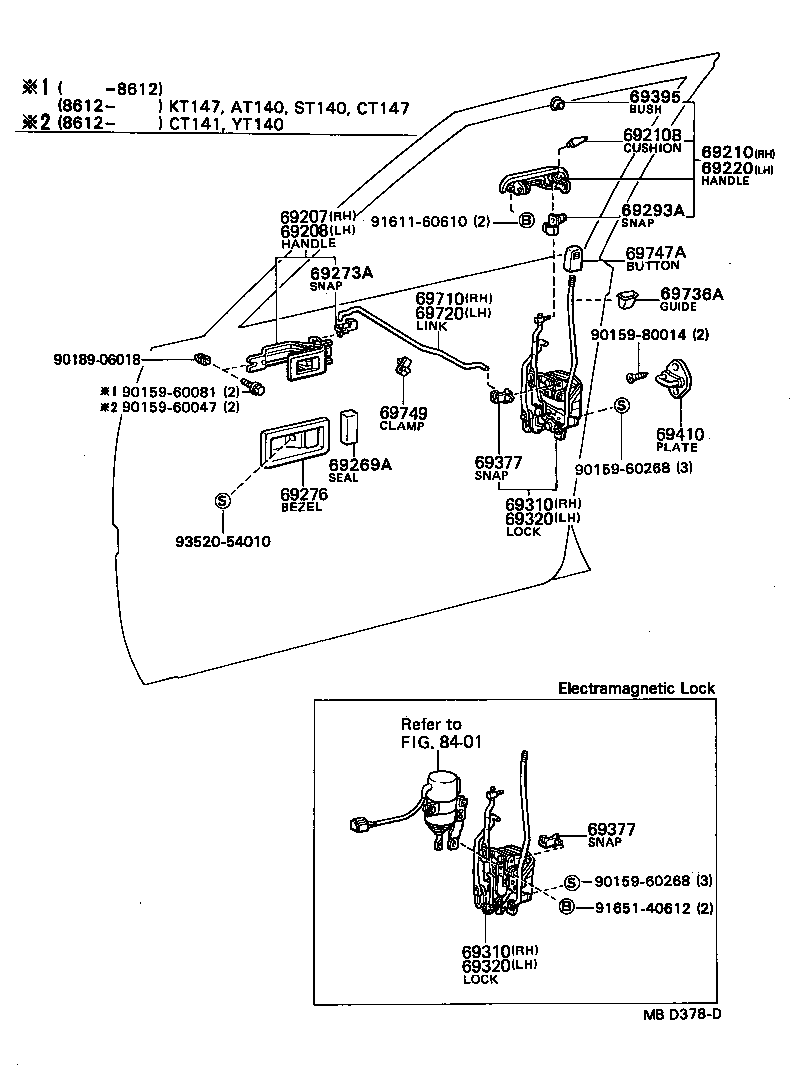

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69269A 69273A 69276 69293A 69310 69310 69320 69320 69377 69377 69395 69410 69710 69720 69736A 69747A 69749 8401 9015960047 9015960081 9015960268 9015960268 9015980014 9018906018 9161160610 9165140612 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1404004

AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)

BLUE,BLUE,TRIM8#

 1
69205-1404104

AT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)

BLUE,BLUE,TRIM8#

 1
69205-1404116

AT140,CT14#,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GX,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 1
69205-1404016

AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1404116

AT140,CT14#,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GX,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 1
69206-1404004

AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)

BLUE,BLUE,TRIM8#

 1
69206-1404104

AT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)

BLUE,BLUE,TRIM8#

 1
69206-1404016

AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20080

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

AT140,CT14#,RT141,ST140,TT14#,YT140

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20080

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69289-12010

AT140,CT14#,RT141,ST140,TT14#,YT140

 2
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-24070

AT140,CT14#,RT141,ST140,TT14#

LH

 1
69759-14050

AT140,CT14#,RT141,ST140,TT14#,YT140

RH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604026

AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 2
69277-1604014

AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)

BLUE,BLUE,TRIM8#

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-16010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

RH

 1
69293-16020

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20130

AT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)

W/O *EL

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20130

AT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)

W/O *EL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20150

AT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)

W/O *EL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20150

AT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)

W/O *EL

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24060

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

RH,GRAY

 1
69759-24050

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

LH,GREEN

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24060

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

RH,GRAY

 1
69759-24050

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

LH,GREEN

 1
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
90386-06030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-14050

AT140,CT14#,RT141,ST140,TT14#,YT140

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-14050

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-14050

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-22021

AT14#,CT14#,KT147,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3201004

AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)

BLUE,BLUE,TRIM8#

 2
69741-2002014

AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)

BLUE,BLUE,TRIM8#

 2
69741-2002036

AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 2
69741-3201006

AT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)

SADDLE BROWN,BROWN,TRIM4#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

AT140,CT14#,RT141,ST140,TT14#..SED,V

 2
69749-30020

AT140,CT14#,RT141,ST140,TT14#,YT140..SED,V

 2
Common parts
90159-60047
90159-60081
90159-60268
90159-80014
90189-06018
91611-60610
91651-40612
93520-54010
Linked diagrams
8401
