CT140-TEPNS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8606)1C

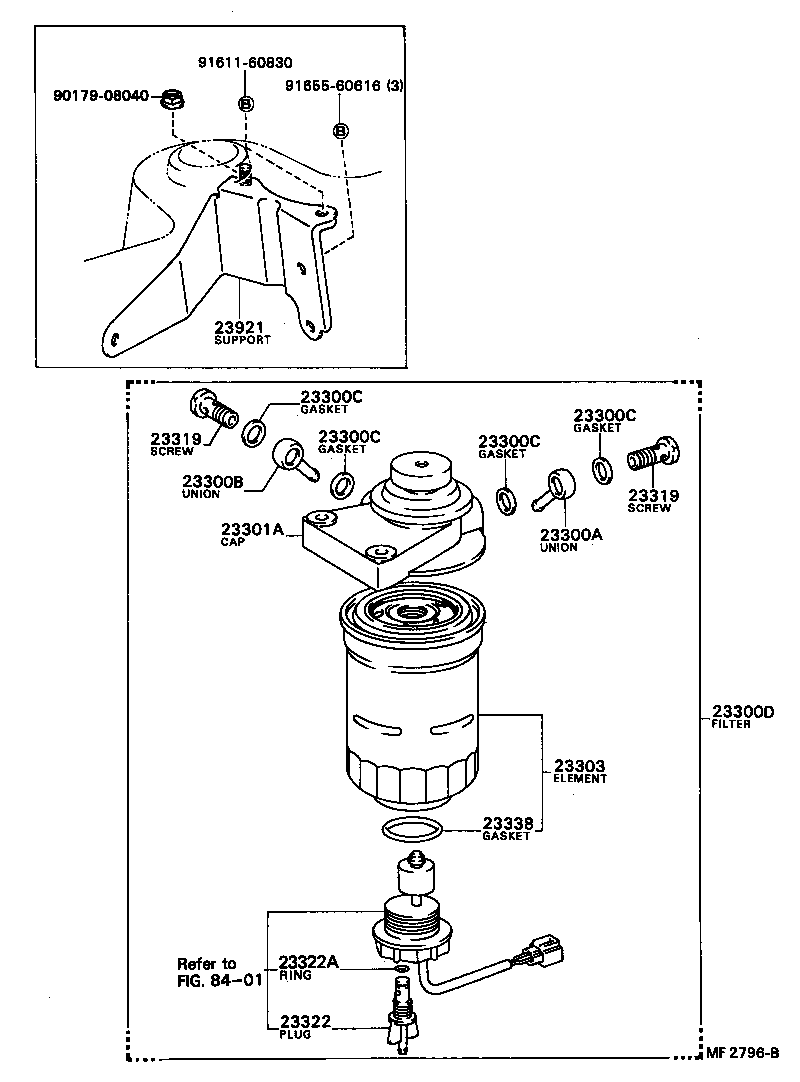

Click highlighted areas on diagram

diagram 23300A 23300B 23300C 23300C 23300C 23300C 23300D 23301A 23303 23319 23319 23322 23322A 23338 23921 8401 9017908040 9161160830 9165560616
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90405-08160

1C..CT14#

 1
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
90405-08160

1C..CT14#

 1
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1C..CT14#

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1C..CT14#

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1C..CT14#

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1C..CT14#

 4
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-64020

1C..CT14#

 1
23301A - CAP ASSY, FUEL FILTER
23301-64010

1C..CT14#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1C,2C..CT14#

 1
23319 - SCREW, FUEL PIPE FOLLOW
90099-18011

1C..CT14#

 2
23319 - SCREW, FUEL PIPE FOLLOW
90099-18011

1C..CT14#

 2
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

1C,2C..CT14#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1C,2C..CT14#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1C,2C..CT14#

 1
23921 - SUPPORT, FUEL FILTER
23921-64020

1C,2C..CT14#

 1
Common parts
90179-08040
91611-60830
91655-60616
Linked diagrams
8401
