CT140-TEPES (1982)
Toyota Corona
(8201-8508)RT141,TT142..5F..GT,GTT ; (8209-9110)YT140..5F ; (8508-9111)CT14#

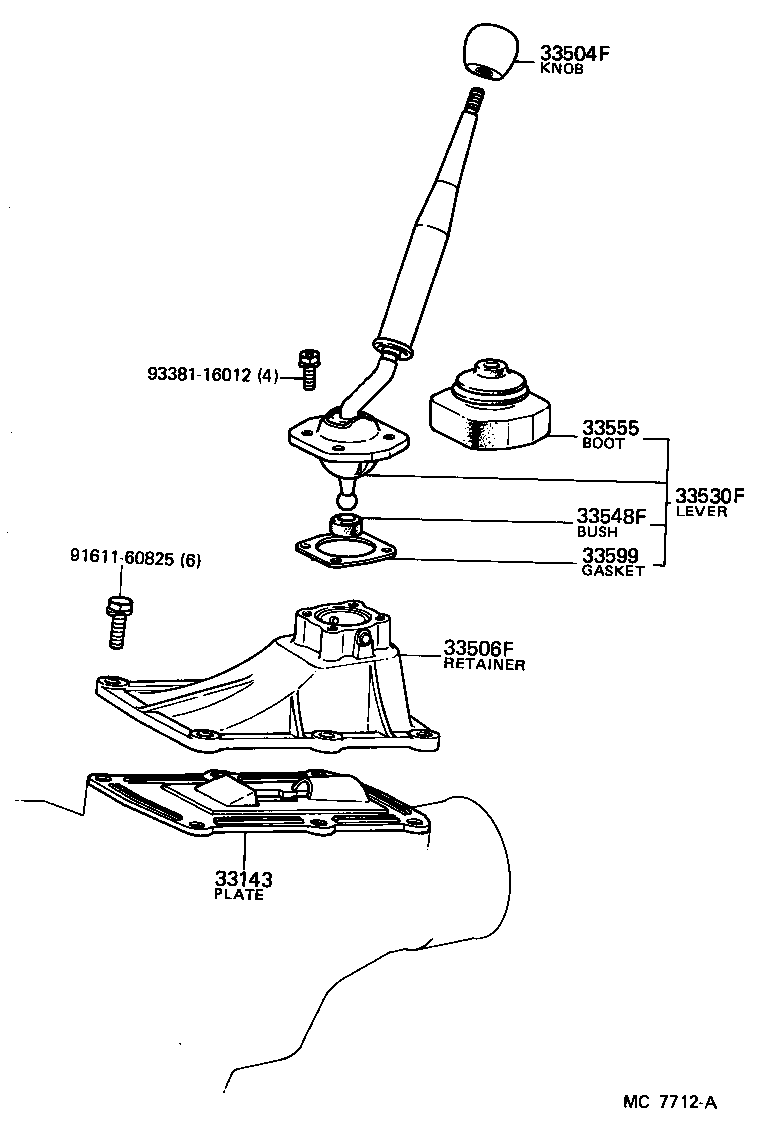

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403004 |
AT140,CT140,ST140,TT142..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 33542-2403016 |
AT140,CT140,ST140,TT14#..ATM SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-14110 |
AT140,CT140,KT147,ST140,TT14#..ATM |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14030 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 93381-16012 | ||||
(8201-8908)ATM

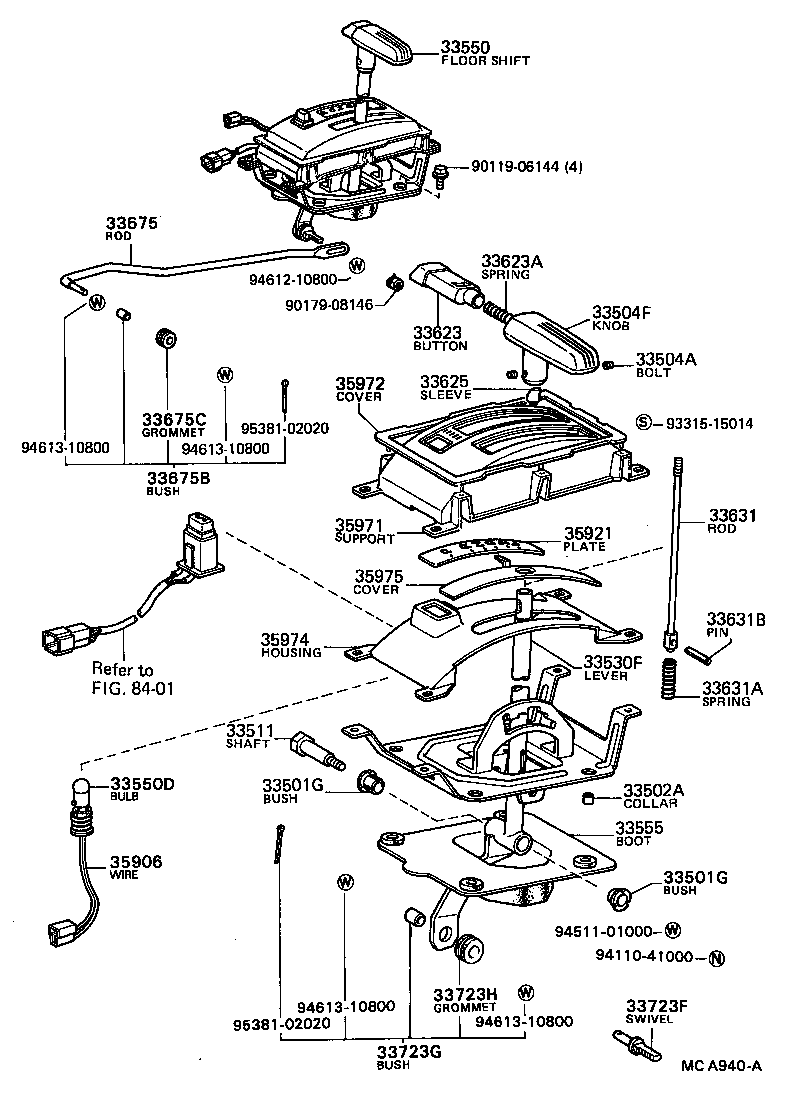

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
AT140,CT140,ST140,TT14#,YT140..ATM |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
AT140,CT140,ST140,TT14#,YT140..ATM |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM 外径=8.8 |
4 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2403004 |
AT140,CT140,ST140,TT142..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 33542-2403016 |
AT140,CT140,ST140,TT14#..ATM SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22100 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-14110 |
AT140,CT140,KT147,ST140,TT14#..ATM |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-1424104 |
CT140,ST140,TT142..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1424016 |
CT140,ST140,TT142..4FC SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 33550-1424004 |
CT140,ST140,TT142..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1424204 |
CT140,ST140,TT142..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1424116 |
CT140,ST140,TT142..4FC SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 33550-1424216 |
CT140,ST140,TT142..4FC SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-11034 |
AT140,CT140,KT147,ST140,TT142,YT140..ATM 12V 3.4W,12V 3.4W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14030 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3004014 |
AT140,CT140,ST140,TT142..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3004036 |
AT140,CT140,ST140,TT14#..ATM SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20060 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04001 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33675 - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 33675-14090 |
CT140..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90999-99017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-14010 |
AT140,CT140,KT147,ST140,TT142,YT140..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-14080 |
CT140,ST140,TT142..4FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-1408016 |
AT140,CT140,ST140,TT14#..ATM SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 35971-1408004 |
AT140,CT140,ST140,TT142..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 35972-1401004 |
AT140,CT140,ST140,TT142..ATM BLUE,BLUE,TRIM8# |
1 | ||
| 35972-1401016 |
AT140,CT140,ST140,TT14#..ATM SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-14080 |
AT140,CT140,KT147,ST140,TT14#,YT140..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-14050 |
AT140,CT140,ST140,TT14#,YT140..ATM |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08146 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
