CT140-TEMRS (1982)

Toyota Corona

Production Jan 1982 - Dec 1986
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8310)

Click highlighted areas on diagram

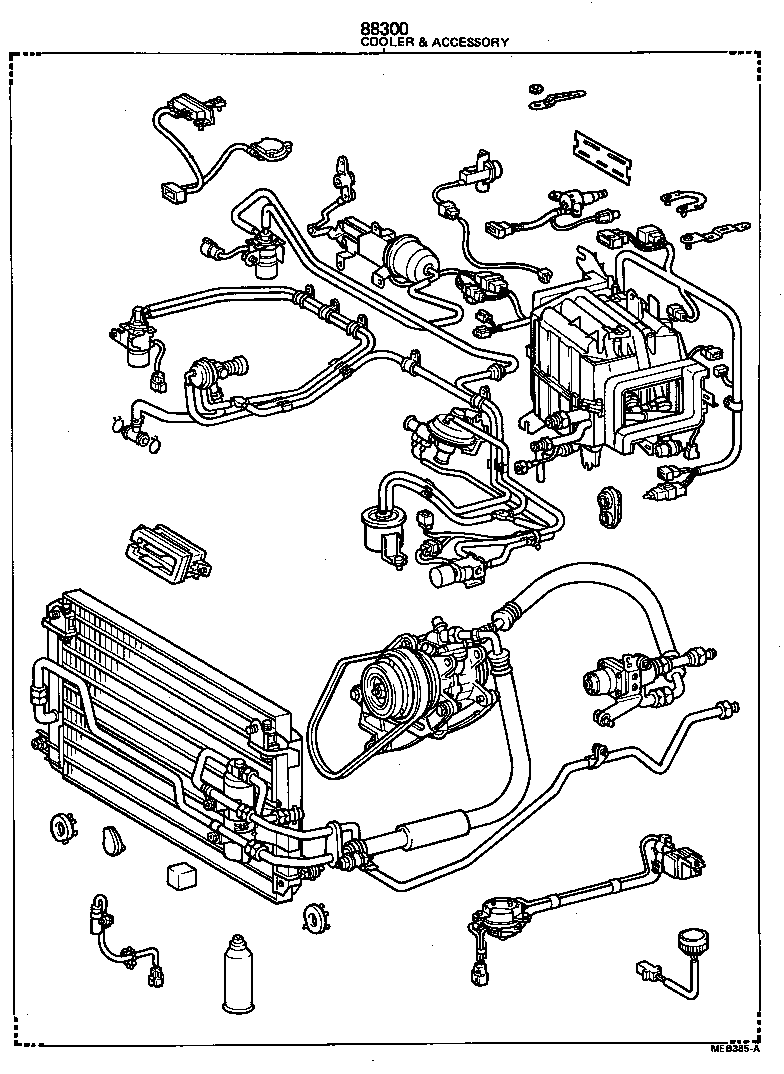

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-2B350

CT140..STD

W/SIDE AIR GRILLE

 1
88300-2B360

CT140..STD

DASH TYPE

 1
88300-2D270

CT140..STD

W/O SIDE AIR GRILLE

 1

(8310- )

Click highlighted areas on diagram

diagram 88820 88820A 88860
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-20050

CT140,YT140

W/O SIDE AIR GRILLE

 1
88820-20030

CT14#,YT140

W/SIDE AIR GRILLE

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-20200

CT140

DASH TYPE

 1
88830-20210

CT140

W/O SIDE AIR GRILLE

 1
88830-20190

CT14#

W/SIDE AIR GRILLE

 1
