CT140-TEMRS (1982)

Toyota Corona

Production Jan 1982 - Dec 1986
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)CT14#,KT147,TT147,YT140..DLX,STD ; (8612-8712)CT147,KT147..DLX,STD

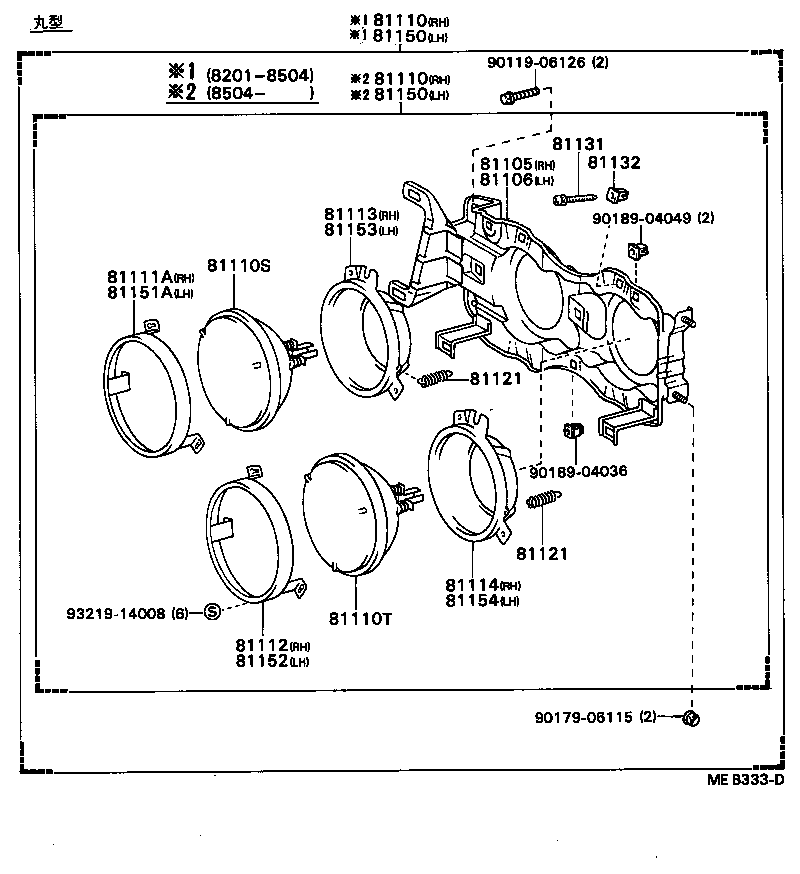

Click highlighted areas on diagram

diagram 81105 81106 81110 81110 81110S 81110T 81111A 81112 81113 81114 81121 81121 81131 81132 81150 81150 81151A 81152 81153 81154 9011906126 9017906115 9018904036 9018904049 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-20711

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81105-20710

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-20670

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81106-20671

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81110 - HEADLAMP ASSY, RH
81110-80201

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81110-20711

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81110-20712

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81110 - HEADLAMP ASSY, RH
81110-80201

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81110-20711

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81110-20712

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02039

CT14#,KT147,TT147,YT140..DLX,STD

12V 37.5W,*WB,12V 37.5W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

CT14#,KT147,TT147,YT140..DLX,STD

12V 37.5/50W,*WB,12V 37.5/50W

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

CT14#,KT147,TT147,YT140..DLX,STD

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-14261

CT14#,KT147,TT147,YT140..DLX,STD

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-14260

CT14#,KT147,TT147,YT140..DLX,STD

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-14260

CT14#,KT147,TT147,YT140..DLX,STD

 1
81121 - SPRING, HEADLAMP TENSION
90506-18018

CT14#,KT147,TT147,YT140..DLX,STD

 4
81121 - SPRING, HEADLAMP TENSION
90506-18018

CT14#,KT147,TT147,YT140..DLX,STD

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20341

CT14#,KT147,TT147,YT140..DLX,STD

 8
81132 - NUT, HEADLAMP SELF LOCKING
90041-89003

CT14#,KT147,TT147,YT140..DLX,STD

 8
81150 - HEADLAMP ASSY, LH
81150-20671

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81150-20672

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81150-80198

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81150 - HEADLAMP ASSY, LH
81150-20671

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81150-20672

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81150-80198

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-14261

CT14#,KT147,TT147,YT140..DLX,STD

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-14261

CT14#,KT147,TT147,YT140..DLX,STD

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-14260

CT14#,KT147,TT147,YT140..DLX,STD

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81114-14260

CT14#,KT147,TT147,YT140..DLX,STD

 1
Common parts
90119-06126
90179-06115
90189-04036
90189-04049
93219-14008

(8201-8712)AT14#,CT140,141,RT141,ST140,TT142,YT140

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81112A 81117 81136A 81138 81144 81144A 81146 81150 81152A 81176A 81186 81210D 81210D 81215B 81215B 8127820050 8127820050 9011906126 9017906115 9018304016 9018304016 9354054012 9354054012
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-20711

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81105-20710

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-20670

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81106-20671

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81110 - HEADLAMP ASSY, RH
81110-80201

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
81110-20711

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81110-20712

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81150 - HEADLAMP ASSY, LH
81150-20671

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81150-20672

CT14#,KT147,YT140..DLX,STD

*ROU

 1
81150-80198

CT14#,KT147,TT147,YT140..DLX,STD

*ROU

 1
Common parts
81278-20050
90119-06126
90179-06115
90183-04016
93540-54012
