CT140-TEMRS (1982)

Toyota Corona

Production Jan 1982 - Dec 1986
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

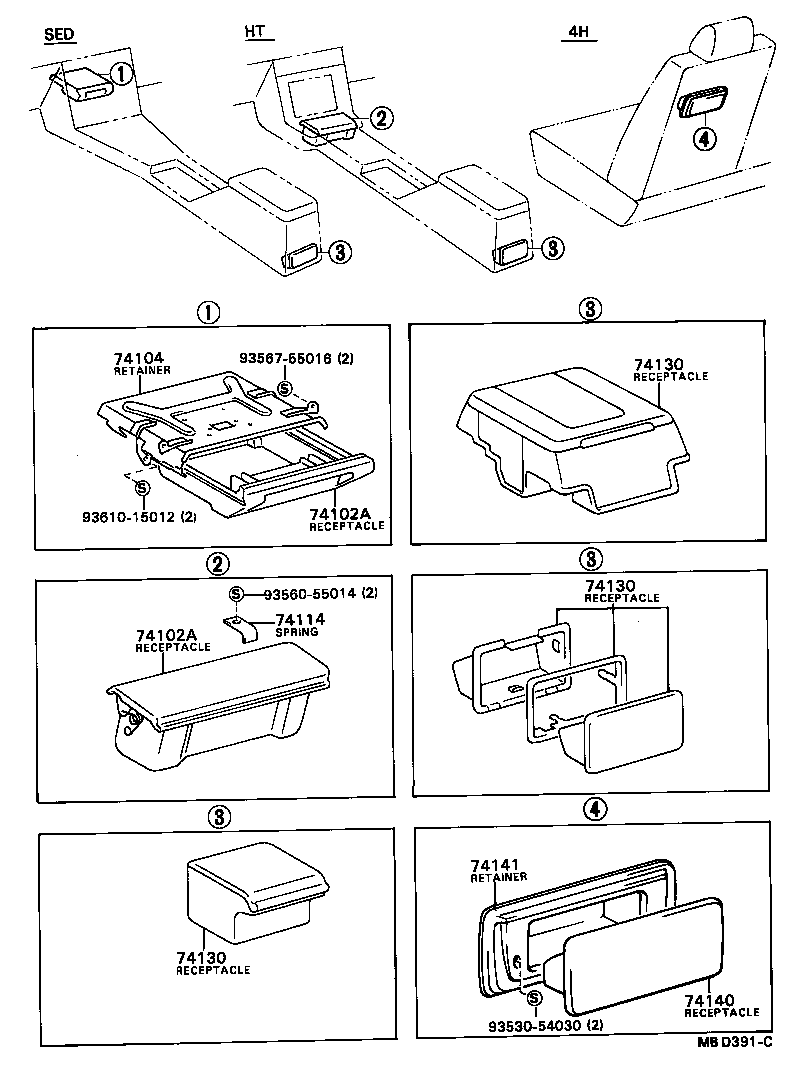

Click highlighted areas on diagram

diagram 74102A 74102A 74104 74114 74130 74130 74130 74140 74141 9353054030 9356055014 9356755016 9361015012
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-2009001

CT147,TT147,YT140;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 1
74102-2009001

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

BLACK,BLACK,TRIM2#

 1
74102A - RECEPTACLE ASSY, FRONT ASH
74102-2009001

CT147,TT147,YT140;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 1
74102-2009001

AT14#,CT14#,KT147,ST140,TT142,YT140..SED,V

BLACK,BLACK,TRIM2#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-20140

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-2008001

CT140,YT140..5F..STD

BLACK,BLACK,TRIM2#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-2008001

CT140,YT140..5F..STD

BLACK,BLACK,TRIM2#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-2008001

CT140,YT140..5F..STD

BLACK,BLACK,TRIM2#

 1
Common parts
93530-54030
93560-55014
93567-55016
93610-15012
