CT140-TEMRS (1982)

Toyota Corona

Production Jan 1982 - Dec 1986
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)CT14#..5F

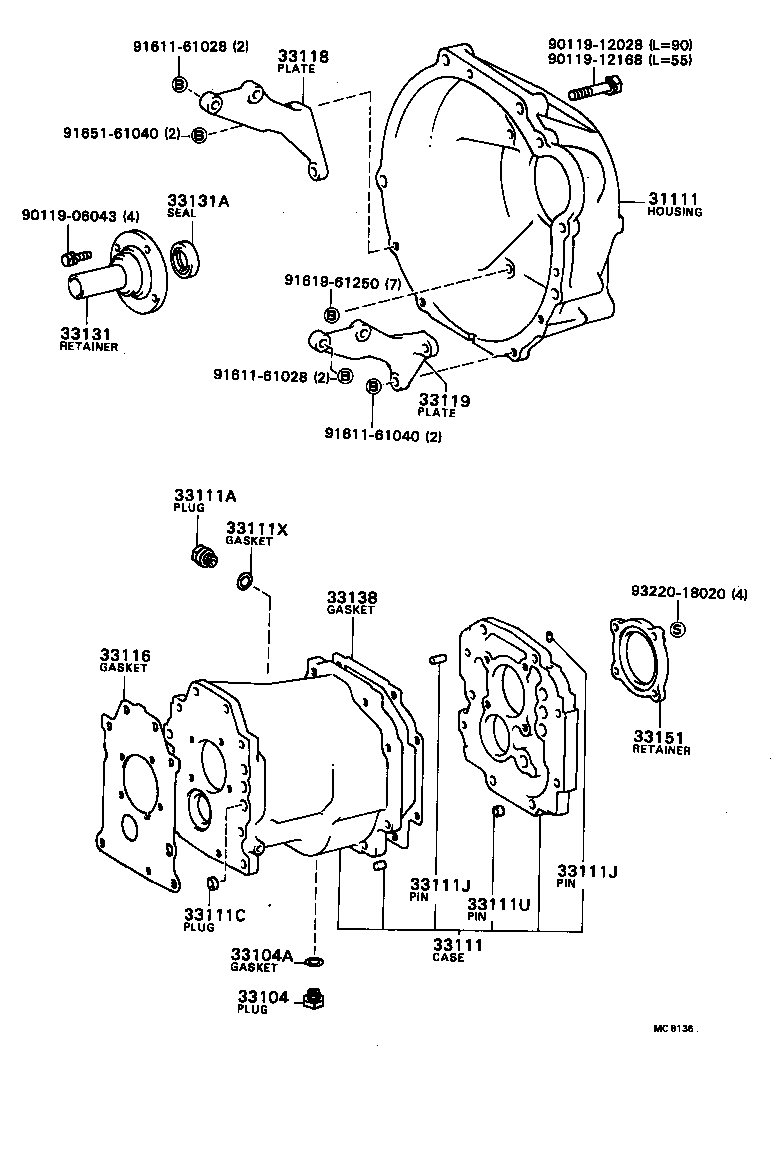

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111X 33116 33118 33119 33131 33131A 33138 33151 9011906043 9011912028 9011912168 9161161028 9161161028 9161161040 9161961250 9165161040 9322018020
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20200

CT14#..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CT14#,RT141,YT140..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

CT14#

 1
90430-18008

AT14#,CT14#,KT147,ST140,TT142,YT140..MTM

 1
90430-18007

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-30021

CT14#..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

AT14#,CT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

 1
90341-18002

AT140,CT14#,RT141,ST140,TT14#..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-20044

CT14#..5F

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90334-06017

CT14#..5F

OD=6,L=11

 1
90250-12195

CT14#..5F

OD=12,L=39

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90334-06017

CT14#..5F

OD=6,L=11

 1
90250-12195

CT14#..5F

OD=12,L=39

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

CT14#..5F

長さ=12,外径=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18007

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
90430-18008

AT14#,CT14#,KT147,ST140,TT142,YT140..MTM

 1
12157-10010

CT14#

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20040

CT14#..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-14032

CT14#,ST140..5F

 1
33118-14030

CT14#,ST140..MTM

 1
33118-14031

CT14#,ST140..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-14050

CT14#,ST140..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-31010

CT14#..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

CT14#,RT141,TT142,YT140..MTM..(DLX,EXS,GT,GTT,GX,STD)

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-20020

CT14#..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-20010

CT14#..5F

 1
Common parts
90119-06043
90119-12028
90119-12168
91611-61028
91611-61040
91619-61250
91651-61040
93220-18020
