CT140-TEMRS (1982)

Toyota Corona

Production Jan 1982 - Dec 1986
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )1C,2C

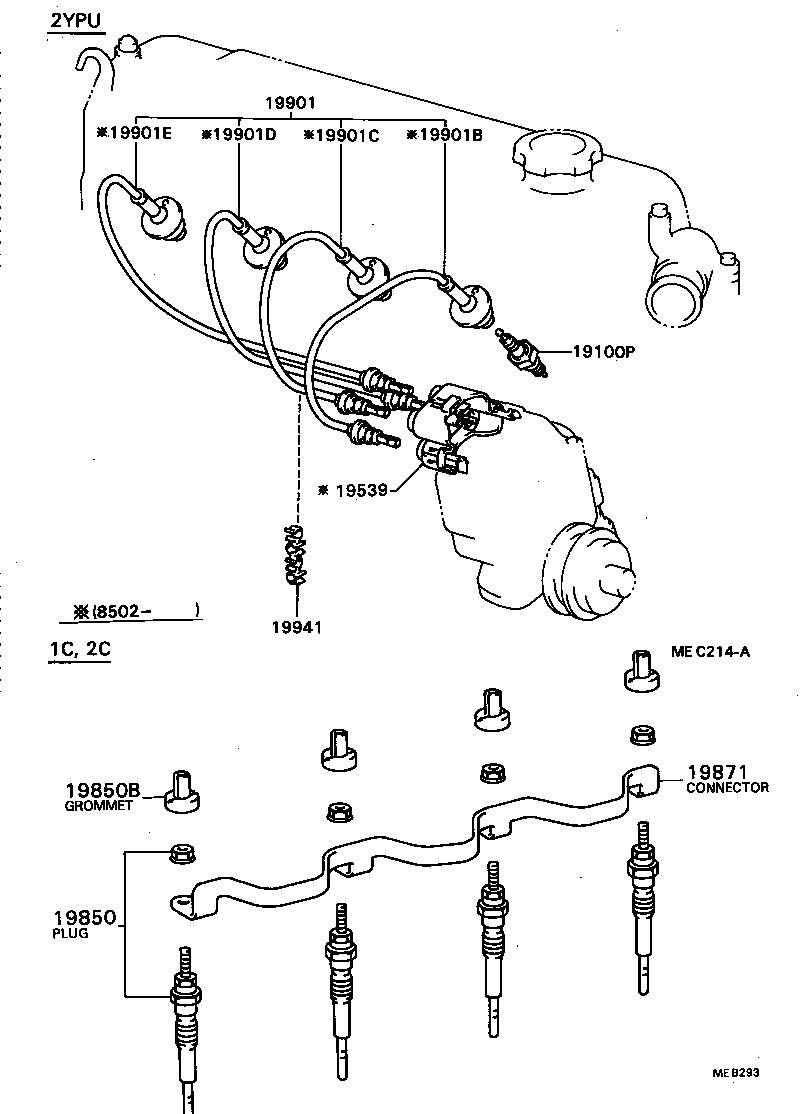

Click highlighted areas on diagram

MEC214A,MEB293

diagram 19100P 19539 19850 19850B 19871 19901 19901B 19901C 19901D 19901E 19941
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-64010

1C,2C..CT14#

*BV−GV=12V−7V,*12V-7V

 4
19850-64010

1C,2C..CT14#

*BV−GV=12V−7V,*12V-7V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1C,2C..CT14#

 4
90189-04024

1C,2C..CT14#

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-64010

1C..CT14#

 1
19871-64010

1C..CT14#

 1
