CT140-TEMNS (1982)
Toyota Corona
(8201- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-14100 |
AT140,CT14#,KT147,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD) W/ANTENNA POLE BRACKET |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-14090 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-14170 |
AT140,CT14#,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD) W/POLE TYPE ANTENNA |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-14190 |
AT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61027-14120 |
AT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61028-14100 |
AT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-20110 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-20110 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20120 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20120 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61265-20030 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61266-20030 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-14060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 61302A - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-14060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61343-14050 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 61307A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH | ||||
| 61337-14020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61344-14050 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 61308A - REINFORCEMENT, CENTER BODY PILLAR, INNER LH | ||||
| 61338-14010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
2 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-14020 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-14020 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14#..SED,V |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-20906 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-20906 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-20540 |
AT14#,CT140,RT141,ST140,TT142..SED |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-20440 |
AT14#,CT140,RT141,ST140,TT142..SED |
1 | ||
| 61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-20040 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-20040 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-20030 |
AT14#,CT140,RT141,ST140,TT142..SED |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61675-14030 |
AT140,CT140,ST140 |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20080 |
AT140,CT14#,RT141,ST140,TT14#..SED,V |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61676-14020 |
AT140,CT140,ST140 |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-14900 |
AT140,CT140,ST140,YT140..SED |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-14900 |
AT140,CT140,ST140,YT140..SED |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-14902 |
AT140,CT140,ST140,YT140..SED |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-14902 |
AT140,CT140,ST140,YT140..SED |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-20100 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-20090 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-20080 |
AT14#,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GX,GXA,SX) |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20030 |
AT140,CT140,RT141,ST140,TT142,YT140..SED |
2 | ||
| 62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH | ||||
| 62903-20010 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH | ||||
| 62904-20010 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-14080 |
AT14#,CT140,RT141,TT142,YT140..SED..(DLX,GT,GTT,GX,STD,SX) |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-14080 |
AT14#,CT140,RT141,TT142,YT140..SED..(DLX,GT,GTT,GX,STD,SX) |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-14080 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-14080 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| Common parts | ||||
| 90189-04030 | ||||
| 90950-01025 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
| 91631-40612 | ||||
| 93510-14010 | ||||

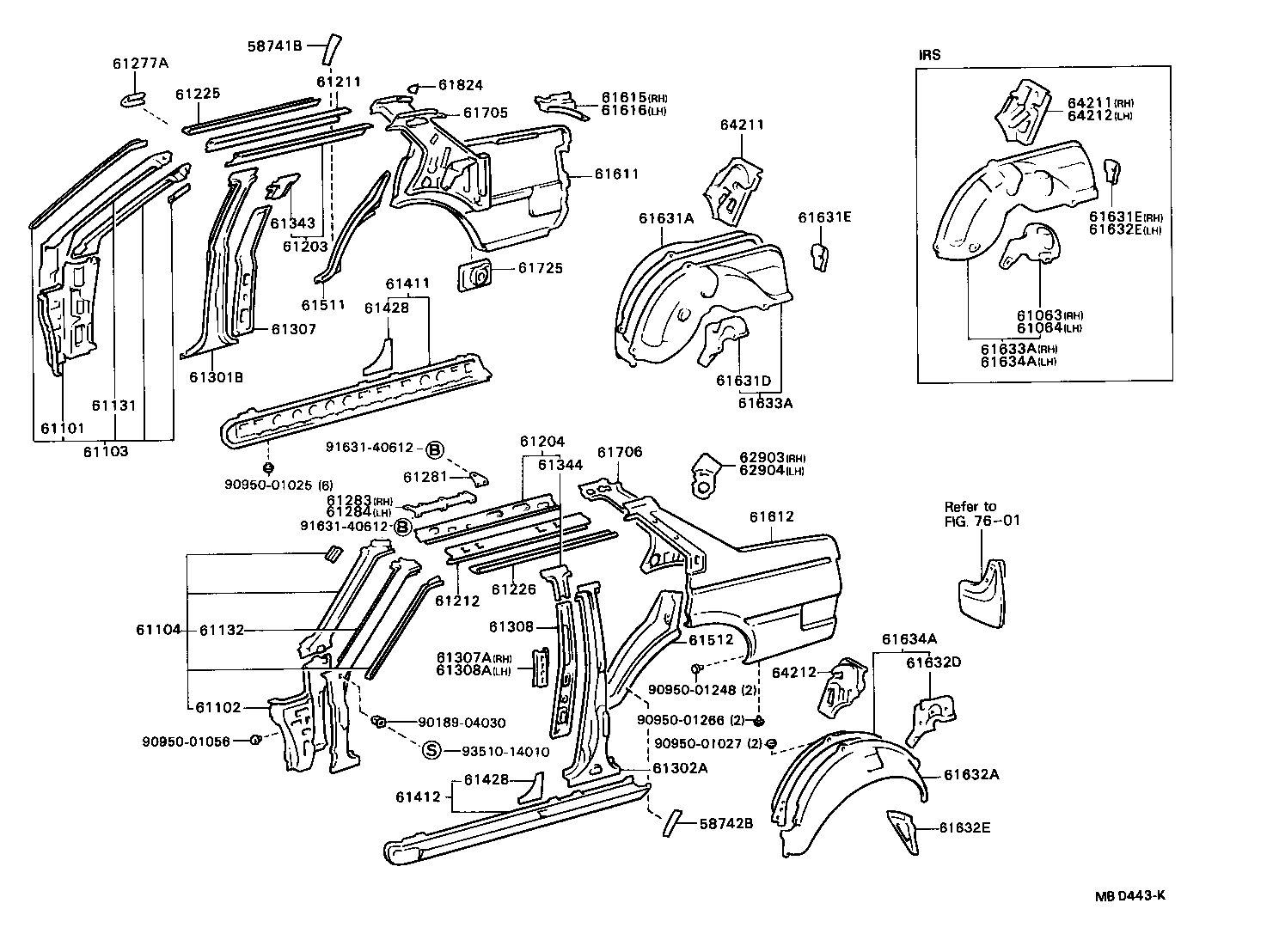

| Linked diagrams | ||||
| 7601 | ||||
