CT140-TEMES (1982)
Toyota Corona

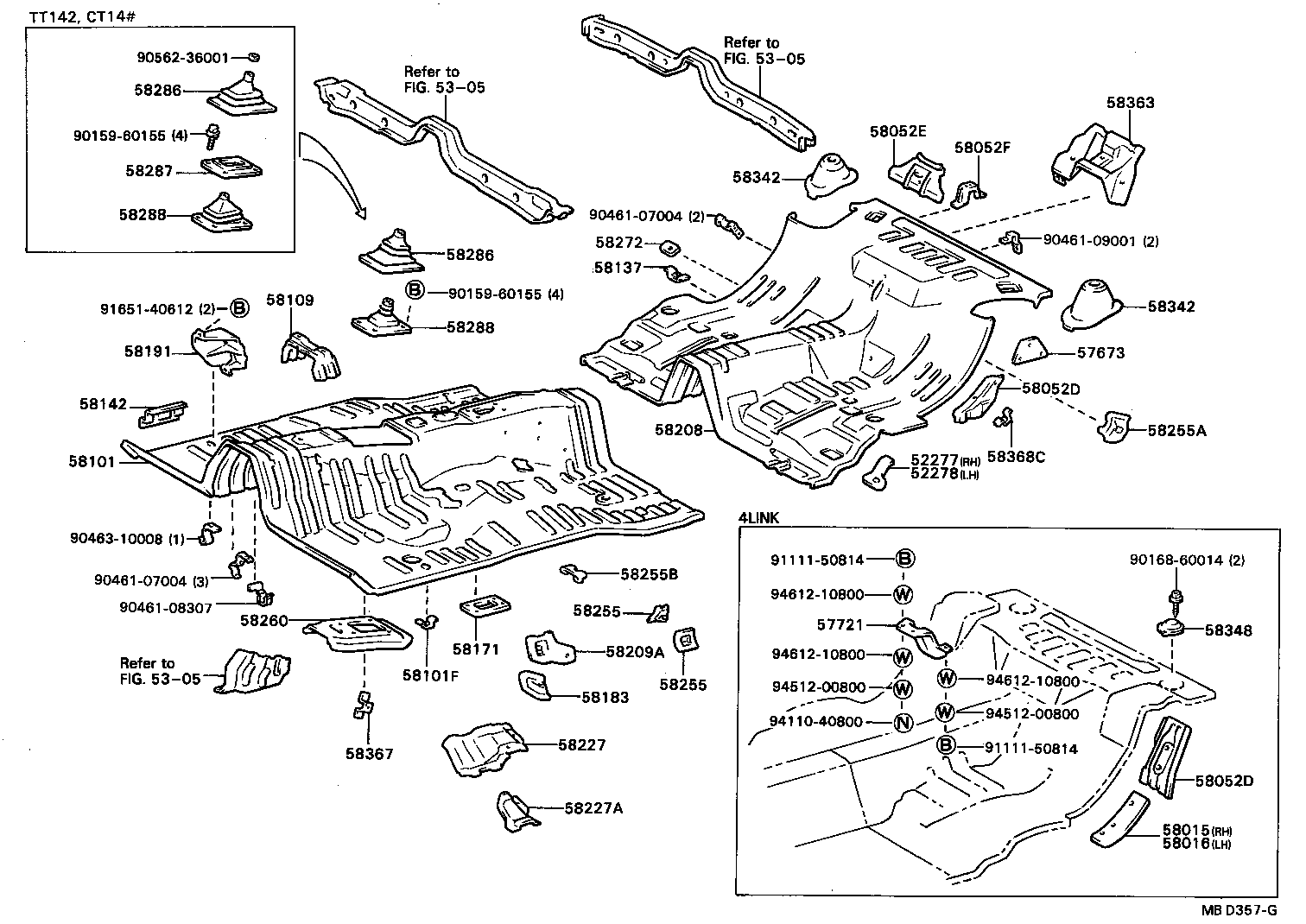

ILLUST NO. 1 OF 2(8201- )AT14#,CT140,141,RT141,ST140,TT142,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57721 - PROTECTOR, LOWER CONTROL LINK | ||||
| 57777-14010 |
AT140,CT140,ST140 RH |
1 | ||
| 57778-14010 |
AT140,CT140,ST140 LH |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-20011 |
AT140,CT140,ST140..SED |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58016-20011 |
AT140,CT140,ST140..SED |
1 | ||
| 58052D - EXTENSION, CENTER FLOOR TO PACKAGE TRAY | ||||
| 64217-14050 |
CT140,ST140..SED..(EXA,EXS) RH |
1 | ||
| 64218-14040 |
CT140,ST140..SED..(EXA,EXS) LH |
1 | ||
| 58052D - EXTENSION, CENTER FLOOR TO PACKAGE TRAY | ||||
| 64217-14050 |
CT140,ST140..SED..(EXA,EXS) RH |
1 | ||
| 64218-14040 |
CT140,ST140..SED..(EXA,EXS) LH |
1 | ||
| 58052E - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-14050 |
CT140,ST140..SED..(EXA,EXS) |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F |
1 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58131-12020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-24010 |
AT140,CT14#,KT147,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F RH |
1 | ||
| 58184-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F LH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-24010 |
AT14#,CT140,RT141,ST140,TT142,YT140..(3FC,4F,4FC,5F)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX) |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-14080 |
AT140,CT140,ST140..SED |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58278-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LH |
1 | ||
| 58277-24010 |
AT140,CT14#,ST140 RH |
1 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58227-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LH |
1 | ||
| 58226-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 RH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58228-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 RH |
1 | ||
| 58229-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-14020 |
AT140,CT140,ST140,YT140 LH |
1 | ||
| 58207-14020 |
AT140,CT140,ST140,YT140 RH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-14020 |
AT140,CT140,ST140,YT140 LH |
1 | ||
| 58207-14020 |
AT140,CT140,ST140,YT140 RH |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58264-14010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-14080 |
CT14#,TT14#,YT140..(4F,5F)..(DLX,EXS,GX,STD,SX) |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-14060 |
CT14#,TT14#,YT140..(4F,5F)..(DLX,EXS,GX,STD,SX) |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-14060 |
CT14#,TT14#,YT140..(4F,5F)..(DLX,EXS,GX,STD,SX) |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-14040 |
CT14#,TT14#,YT140..(4F,5F)..(DLX,EXS,GX,STD,SX) |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-14070 |
CT14#,TT14#,YT140..(4F,5F)..(DLX,EXS,GX,STD,SX) |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-14070 |
CT14#,TT14#,YT140..(4F,5F)..(DLX,EXS,GX,STD,SX) |
1 | ||
| 58348 - COVER, REAR ABSORBER SERVICE HOLE | ||||
| 58348-14020 |
AT140,CT140,ST140 |
2 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| Common parts | ||||
| 90159-60155 | ||||
| 90168-60014 | ||||
| 90461-07004 | ||||
| 90461-08307 | ||||
| 90461-09001 | ||||
| 90463-10008 | ||||
| 90562-36001 | ||||
| 91111-50814 | ||||
| 91651-40612 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 5305 | ||||
ILLUST NO. 2 OF 2(8201-8712)AT140,CT140,RT141,ST140,TT142 ; (8201- )CT141
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58208C - COVER, CENTER FLOOR HOLE | ||||
| 58285-14010 |
AT14#,CT140,RT141,ST140,TT142 |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-20380 |
AT14#,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX) |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-20380 |
AT14#,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-20902 |
CT140,ST140..SED..(EXA,EXS,GX,GXA) W/BACK SONER |
1 | ||
| 58301-14920 |
AT140,CT140,ST140..SED |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-14110 |
AT140,CT140,ST140,YT140..SED |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-14050 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58308-14060 |
AT14#,CT140,RT141,ST140,TT142..SED |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58791-12050 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-04002 | ||||
| 90333-30002 | ||||
| 90480-24009 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||
| 90950-01205 | ||||
| 90950-01270 | ||||
| 90950-01322 | ||||
| 90950-01370 | ||||
| 90950-06015 | ||||
| 91655-40616 | ||||
| 93540-14010 | ||||
