AT211-AEPEK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9601- )

Click highlighted areas on diagram

diagram 6101 827111E300 827112D080 827112D080 86300 86300C 9015040011 9015960545 9016770002 9017906070
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-2B270

AT21#,CT21#,ST215

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-2B280

AT211,ST215

ｱﾘ(4ｽﾋﾟ-ｶ)

 1
86300-2B290

AT211,ST21#

ｱﾘ(AM/FM ｶｾﾂﾄ CD 6ｽﾋﾟ-ｶ)

 1
86300-2B281

AT21#,CT21#,ST21#

 1
86300-2B330

AT211,ST21#

ｱﾘ(ﾃﾚﾋﾞ)

 1
86300-2B410

AT211,ST21#

ﾘﾐﾃﾂﾄﾞ *(V)

 1
Common parts
82711-1E300
82711-2D080
90150-40011
90159-60545
90167-70002
90179-06070
Linked diagrams
6101

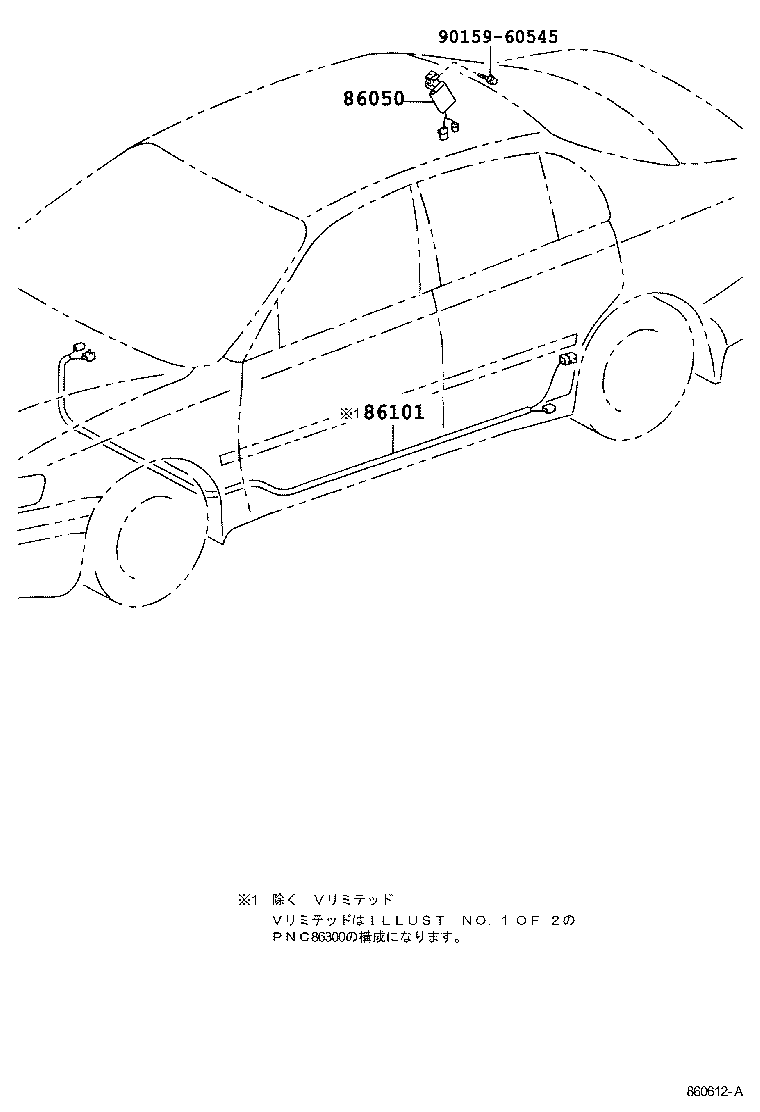

ILLUST NO. 2 OF 2(9712- )AT211,ST21#

Click highlighted areas on diagram

diagram 86050 86101 9015960545
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-20010

AT211,ST21#

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20730

AT211,ST21#

 1
Common parts
90159-60545
