AT211-AEMEK (1996)
Toyota Corona

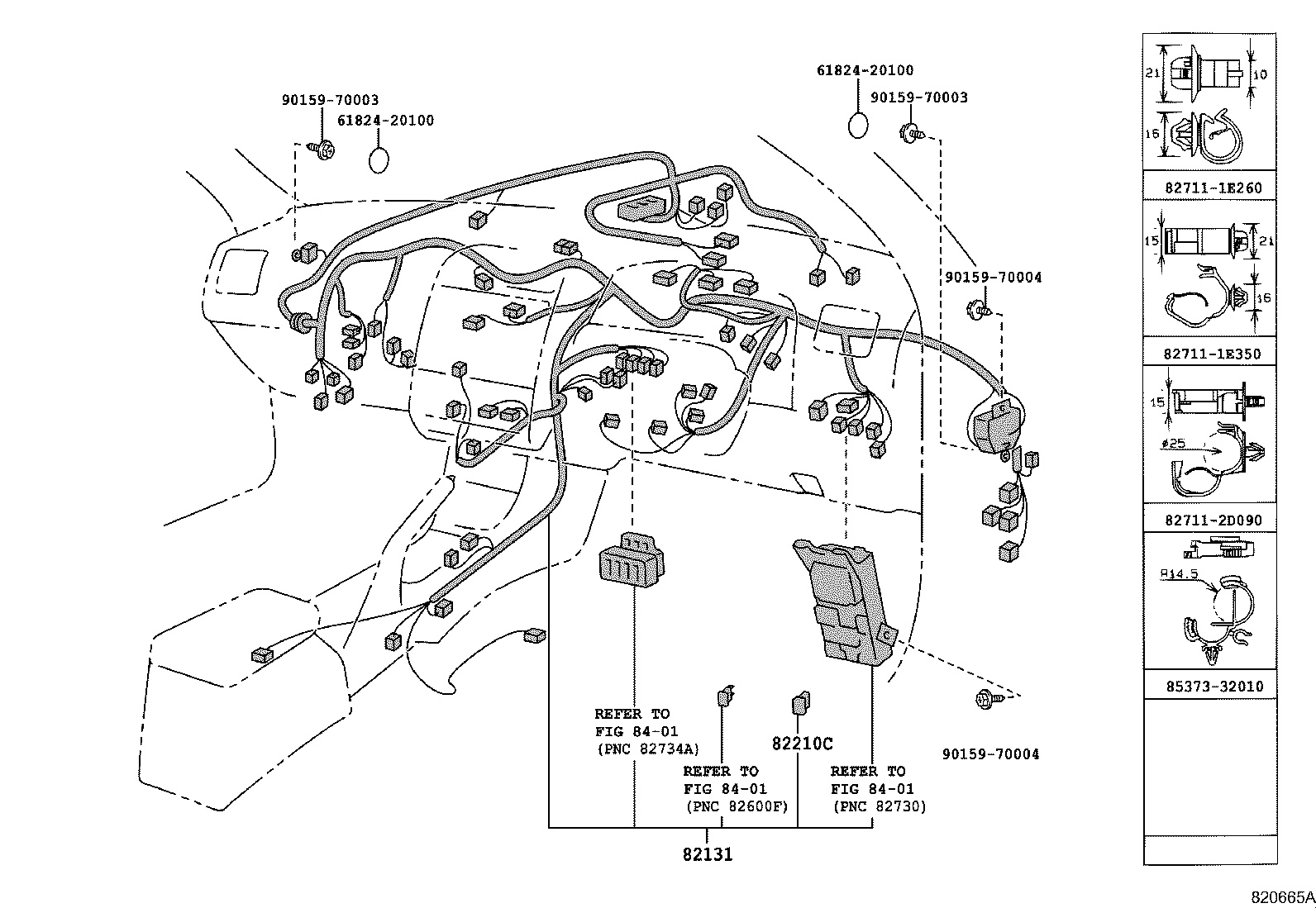

ILLUST NO. 3 OF10(9601- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2P190 |
AT211..MTM ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82131-2P170 |
AT21#..MTM |
1 | ||
| 82131-2P191 |
AT211..MTM ｱﾘ(ｵﾌﾟﾁﾄﾛﾝ ﾒ-ﾀ) |
1 | ||
| 82131-2P171 |
AT21#..MTM |
1 | ||
| 82131-2P193 |
AT211..MTM ｱﾘ(ｵﾌﾟﾁﾄﾛﾝ ﾒ-ﾀ) |
1 | ||
| 82131-2P172 |
AT21#..MTM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08285 |
AT21#,CT21#,ST21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST21# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08284 |
AT21#,CT21#,ST21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08270 |
AT21#,CT21#,ST21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08202 |
AT21#,CT21#,ST21# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08202 |
AT21#,CT21#,ST21# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
AT21#,CT21#,ST21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08254 |
AT21#,CT21#,ST21# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08246 |
AT21#,CT21#,ST21# 100A,ｵｽ端子,青 |
1 | ||
| Common parts | ||||
| 61824-20100 | ||||
| 82711-1E260 | ||||
| 82711-1E350 | ||||
| 82711-2D090 | ||||
| 85373-32010 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||

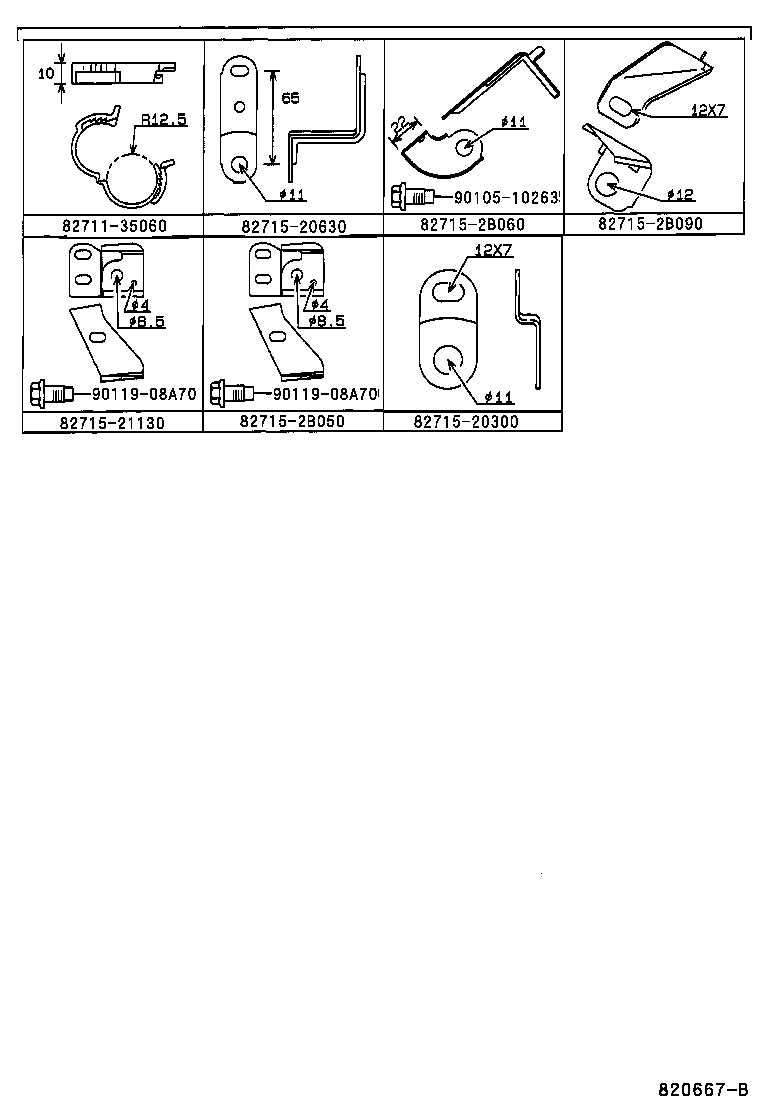

ILLUST NO. 7 OF10(9612- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35060 | ||||
| 82715-20300 | ||||
| 82715-20630 | ||||
| 82715-21130 | ||||
| 82715-2B050 | ||||
| 82715-2B060 | ||||
| 82715-2B090 | ||||
| 90105-10263 | ||||
| 90119-08A70 | ||||

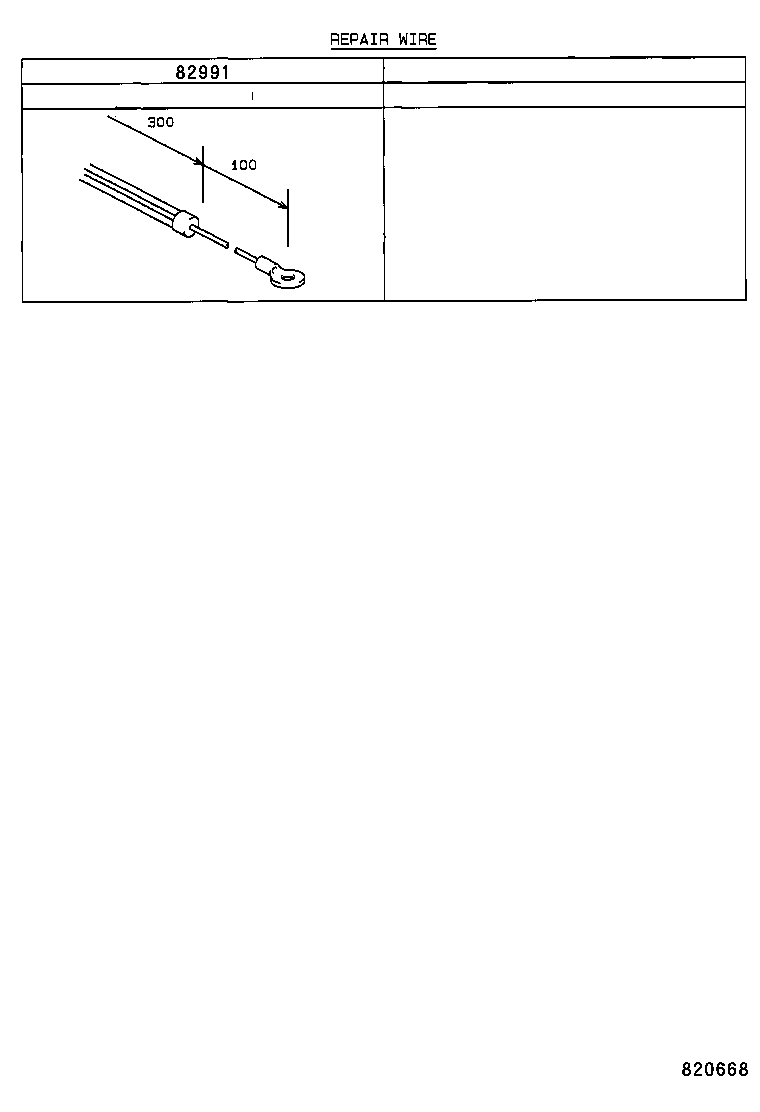

ILLUST NO. 9 OF10(9601- )
ﾘﾍﾟｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20110 |
AT21#,CT21#,ST21# |
1 | ||

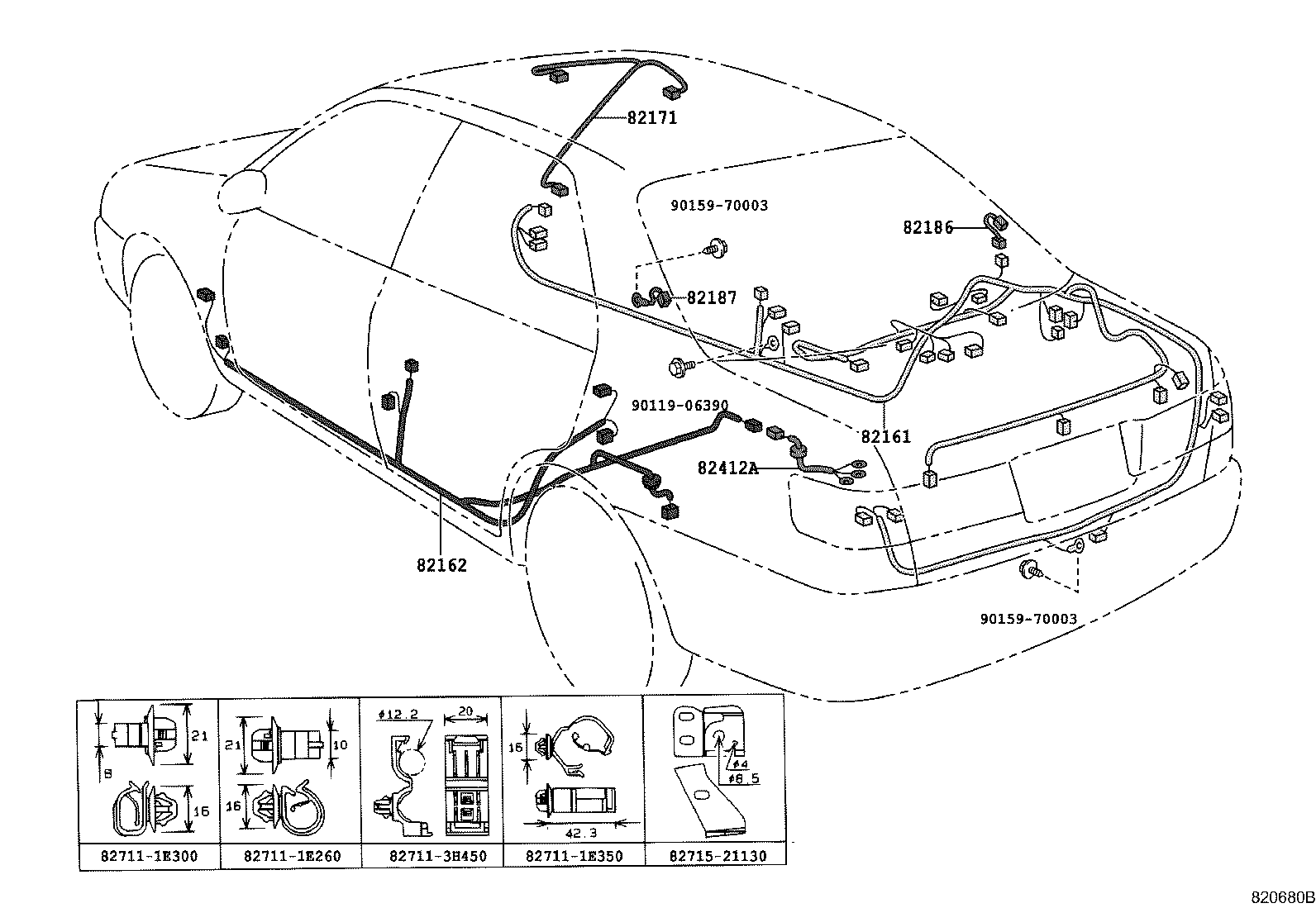

ILLUST NO. 6 OF10(9601- )
ﾙ-ﾌ & ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2L721 |
AT21#,CT21#,ST215 |
1 | ||
| 82161-2L731 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ OR ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2L720 |
AT21#,CT21#,ST215 |
1 | ||
| 82161-2L830 |
AT211,ST215 ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ) OR ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) OR ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2L730 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ OR ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82161-2L840 |
AT211,ST215 ｱﾘ(ｺﾝﾗｲﾄ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) OR ｱﾘ(ｺﾝﾗｲﾄ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-2L850 |
AT211,ST215 ｱﾘ(ｺﾝﾗｲﾄ & ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ & ﾘﾔﾜｲﾊﾟ);ｱﾘ(ｺﾝﾗｲﾄ & ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ);ｱﾘ(ｺﾝﾗｲﾄ & ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20521 |
AT21#,CT211,ST210 |
1 | ||
| 82162-20520 |
AT21#,CT210,ST210 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2B090 |
AT21#,ST21# ｱﾘ(ﾏﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82171-2B090 |
AT211,ST21# ｱﾘ(ﾏﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82171-2B100 |
AT21#,CT21#,ST215 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20190 |
AT21#,CT21#,ST215 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20240 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-1E300 | ||||
| 82711-1E350 | ||||
| 82711-3H450 | ||||
| 82715-21130 | ||||
| 90119-06390 | ||||
| 90159-70003 | ||||

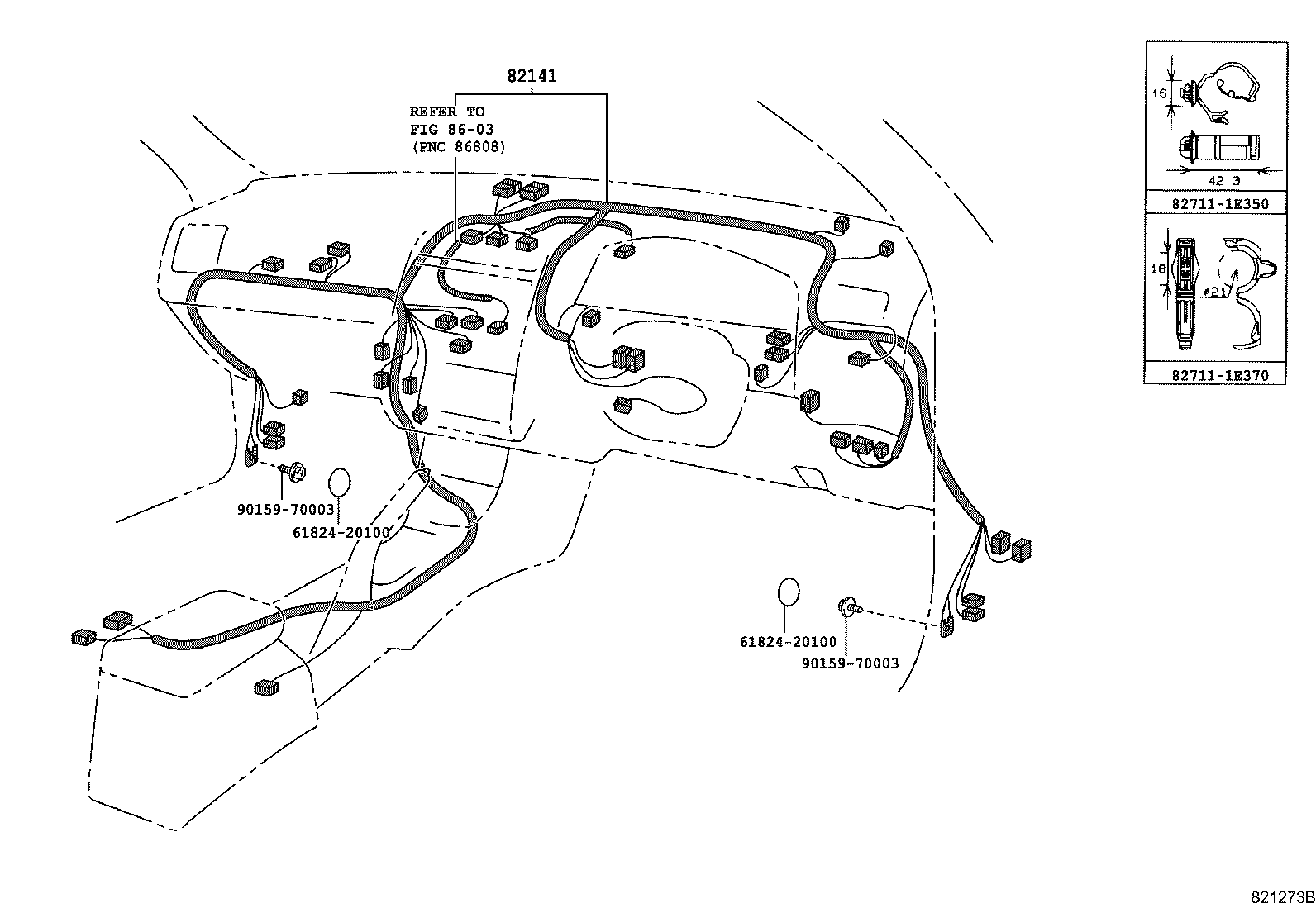

ILLUST NO. 4 OF10(9601- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2G650 |
AT211,ST21#..EFI ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) OR ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-2G620 |
AT21#,CT21#,ST21#..EFI,TD ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-2G611 |
AT21#,CT21#,ST215 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-2G630 |
AT21#,CT21#,ST21#..EFI,TD ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) OR ｱﾘ(ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ);ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ &ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-2G631 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82141-2G700 |
AT211,ST21#..EFI ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-2G621 |
AT211,ST21# ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-2G701 |
AT211,ST21# ｱﾘ(ﾏﾙﾁ ﾃﾞｲｽﾌﾟﾚｲ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82145-20150 |
AT211,ST21# ﾘﾐﾃﾂﾄﾞ *(V) |
1 | ||
| 82145-20020 |
AT21#,CT21#,ST215 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82145-20040 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 82145-20030 |
AT211,ST21# ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| Common parts | ||||
| 61824-20100 | ||||
| 82711-1E350 | ||||
| 82711-1E370 | ||||
| 90159-70003 | ||||

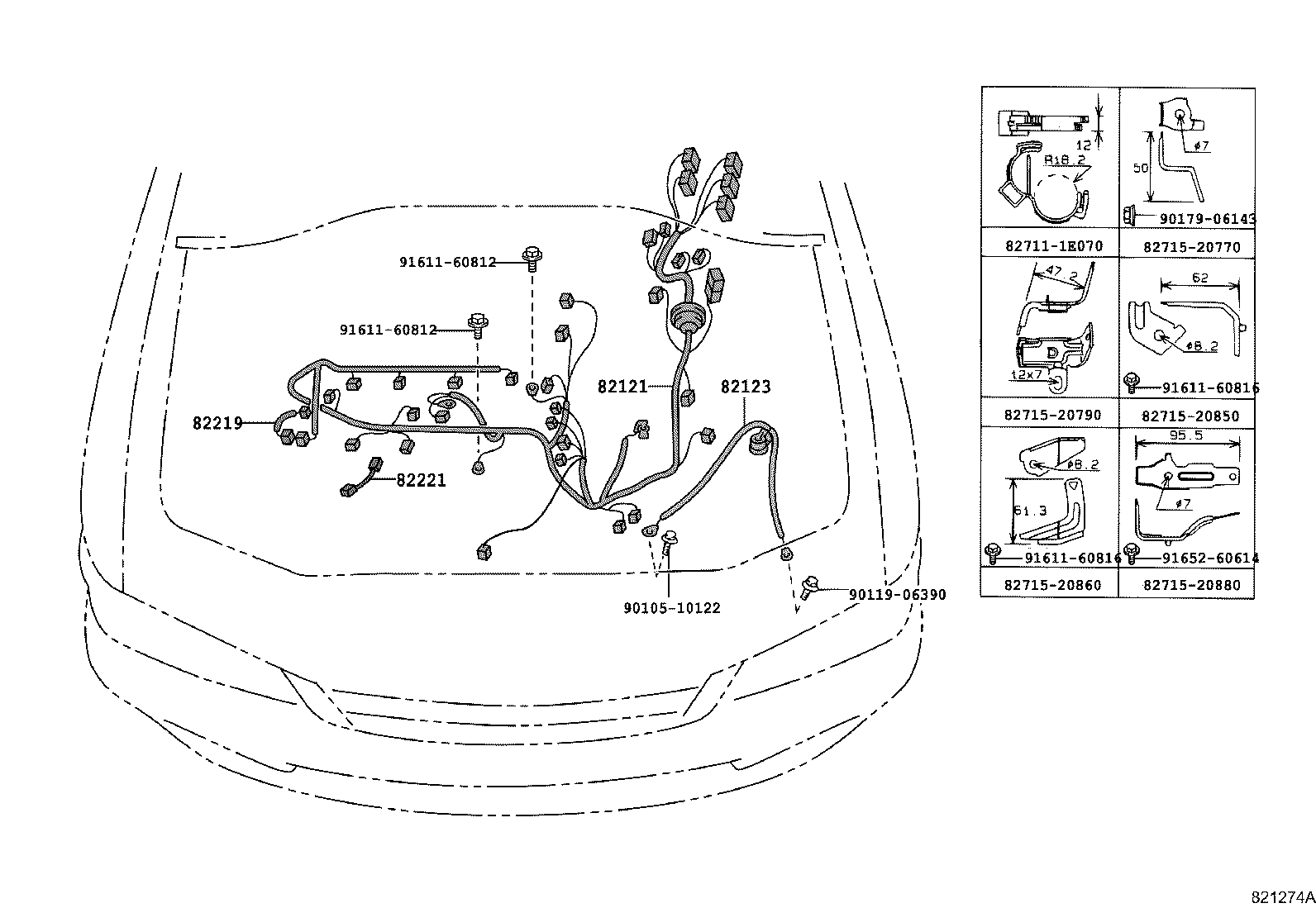

ILLUST NO. 1 OF10(9601- )AT21#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-21180 |
AT21#..MTM |
1 | ||
| 82121-2M020 |
AT21#..MTM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20260 |
AT21# |
1 | ||
| 82123-21020 |
AT21#,ST210 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-20080 |
AT211 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-20100 |
AT21# |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82715-20770 | ||||
| 82715-20790 | ||||
| 82715-20850 | ||||
| 82715-20860 | ||||
| 82715-20880 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91652-60614 | ||||

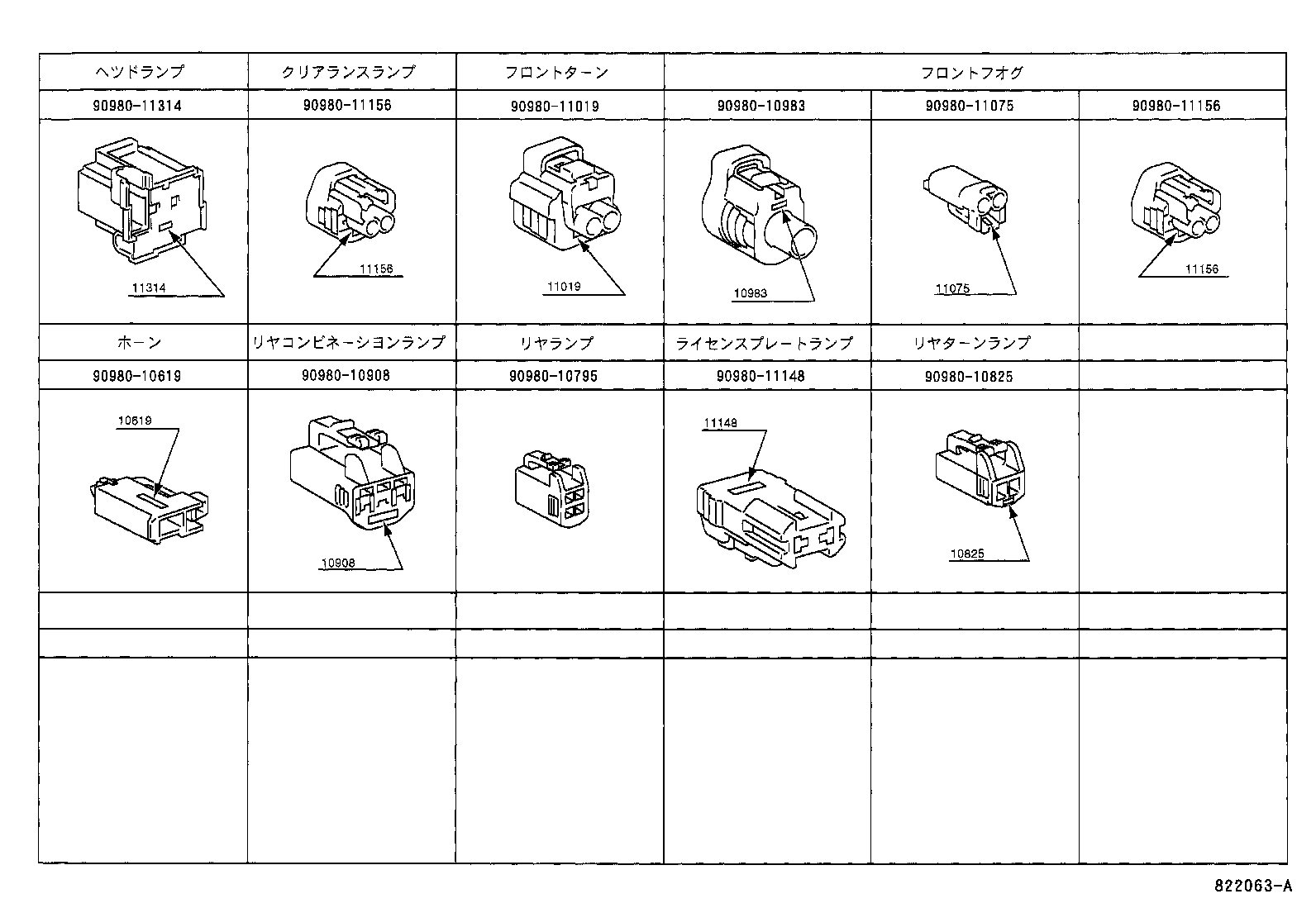

ILLUST NO.10 OF10(9601- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10908 | ||||
| 90980-10983 | ||||
| 90980-11019 | ||||
| 90980-11075 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||

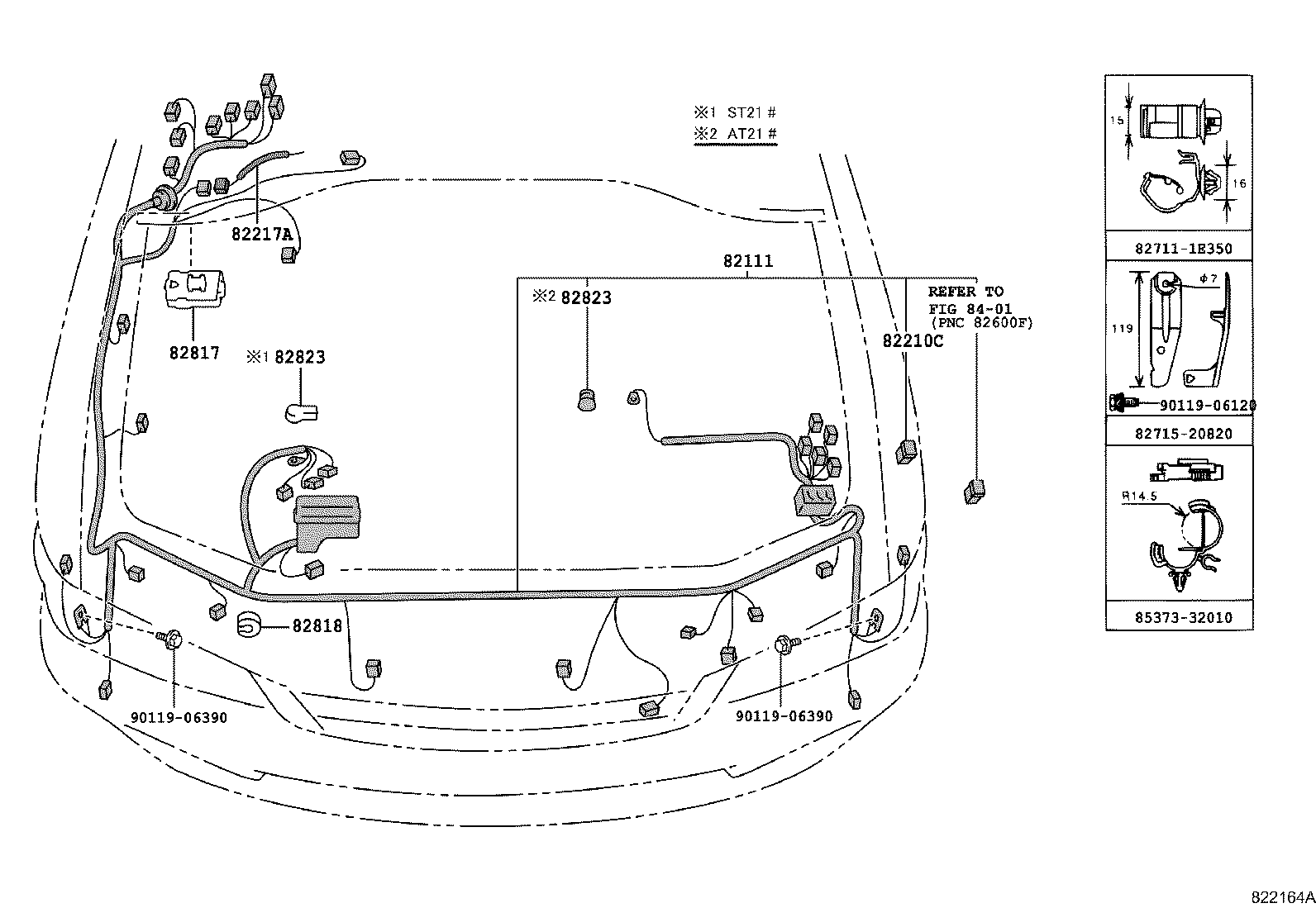

ILLUST NO. 2 OF10(9601- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2L250 |
AT211 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ OR ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82111-2L260 |
AT21# ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82111-2L261 |
AT21# ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82111-2L270 |
AT21# |
1 | ||
| 82111-2L251 |
AT21# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08285 |
AT21#,CT21#,ST21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
AT21#,CT21#,ST21# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08284 |
AT21#,CT21#,ST21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08270 |
AT21#,CT21#,ST21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08202 |
AT21#,CT21#,ST21# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08202 |
AT21#,CT21#,ST21# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
AT21#,CT21#,ST21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08254 |
AT21#,CT21#,ST21# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08246 |
AT21#,CT21#,ST21# 100A,ｵｽ端子,青 |
1 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-20080 |
AT21#,CT21#,ST21# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D090 |
AT21#,CT21#,ST21# |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82818-20090 |
AT21#,CT21#,ST21# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20070 |
AT21# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20070 |
AT21# |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-20820 | ||||
| 85373-32010 | ||||
| 90119-06120 | ||||
| 90119-06390 | ||||

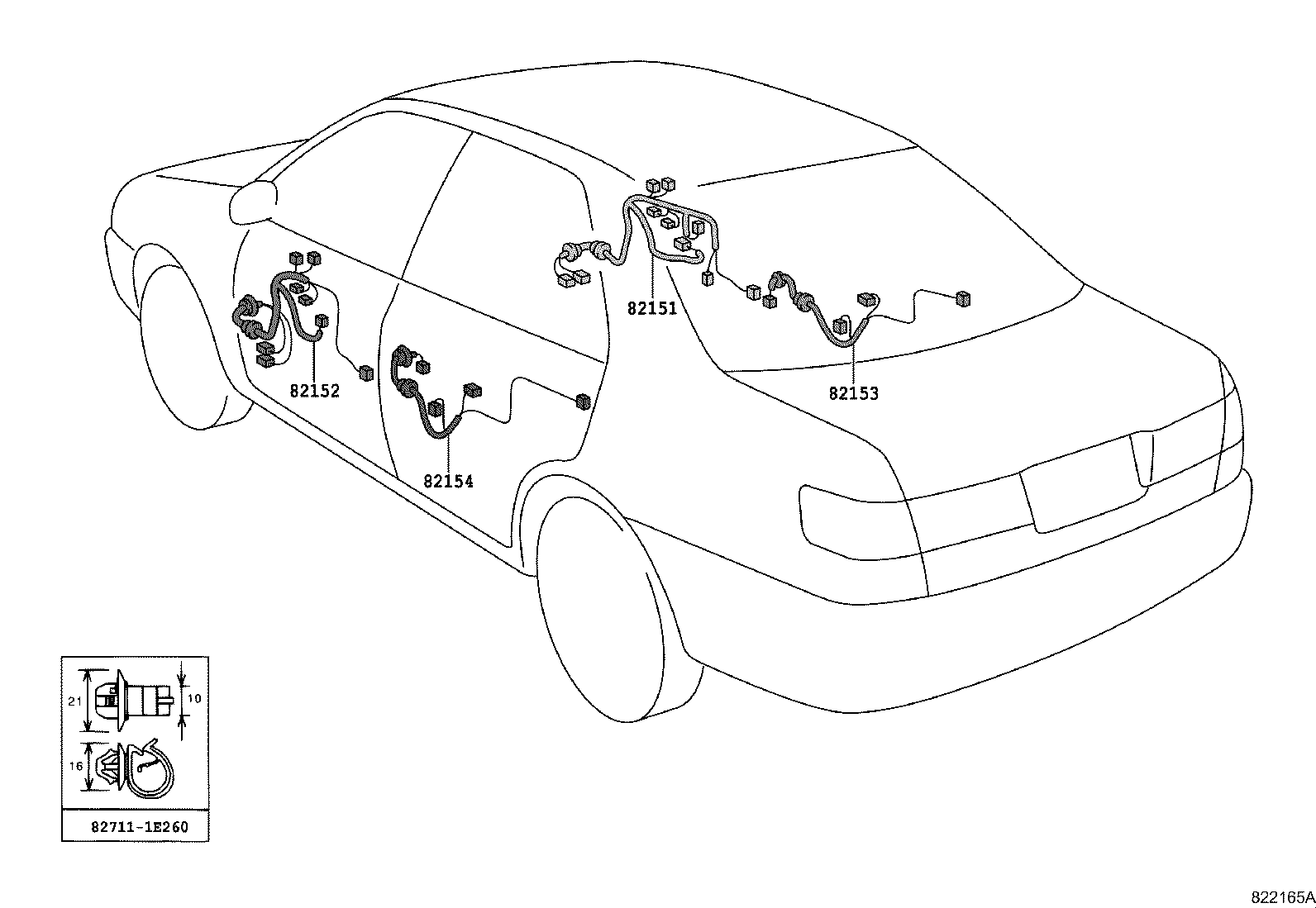

ILLUST NO. 5 OF10(9601- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2G391 |
AT21#,CT21#,ST21# |
1 | ||
| 82151-2G401 |
AT211,ST21# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82151-2G400 |
AT211,ST21# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82151-2G402 |
AT211,ST215 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ OR ﾋ-ﾀ ﾂｷ ﾄﾞｱﾐﾗ-) |
1 | ||
| 82151-2G390 |
AT21#,CT21#,ST21# |
1 | ||
| 82151-2G392 |
AT21#,CT21#,ST215 |
1 | ||
| 82151-2G393 |
AT21#,CT21#,ST21# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2G192 |
AT21#,CT21#,ST21# |
1 | ||
| 82152-2G191 |
AT21#,CT21#,ST215 |
1 | ||
| 82152-2G190 |
AT21#,CT21#,ST21# |
1 | ||
| 82152-2G200 |
AT211,ST21# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 82152-2G201 |
AT211,ST21# ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ OR ﾋ-ﾀ ﾂｷ ﾄﾞｱﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20450 |
AT21#,CT21#,ST21# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20450 |
AT21#,CT21#,ST21# |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||

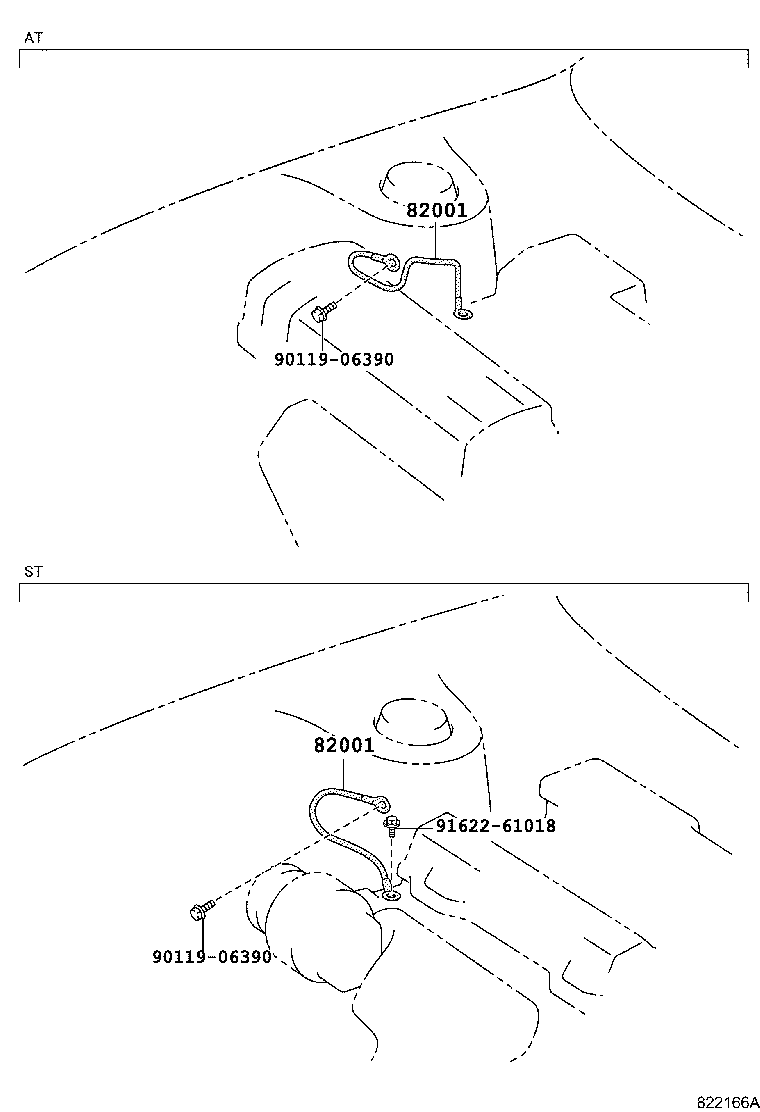

ILLUST NO. 8 OF10(9601- )
ｹ-ﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07341 |
AT21# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07341 |
AT21# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91622-61018 | ||||
