AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

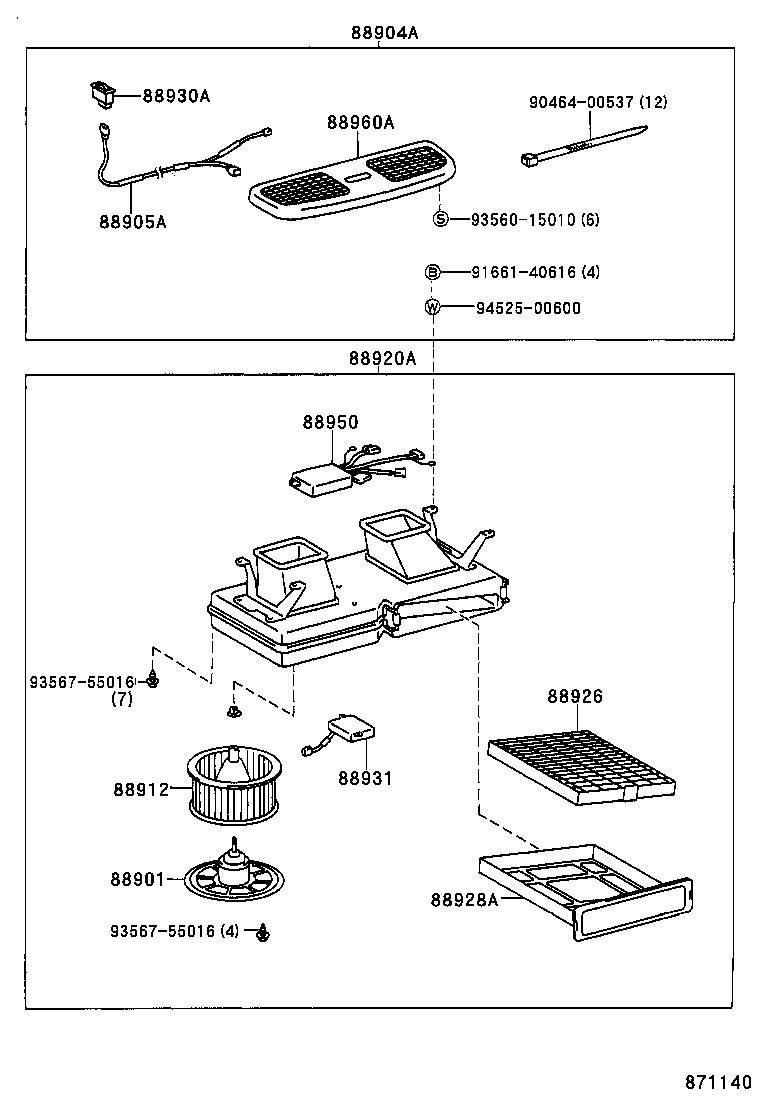

Click highlighted areas on diagram

diagram 88901 88904A 88905A 88912 88920A 88926 88928A 88930A 88931 88950 88960A 9046400537 9166140616 9356015010 9356755016 9356755016 9452500600
Part # Description Qty Price
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-22140

AT21#,CT21#,ST21#

 1
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-20260B0

AT21#,CT21#,ST21#..EFI,TD

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ),SHADOW GRAY,TRIM1#

 1
88904-20260B0

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ),SHADOW GRAY,TRIM11

 1
88904-20270B0

AT21#,CT21#,ST21#..EFI,TD

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ),SHADOW GRAY,TRIM1#

 1
88904-20260B0

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ),SHADOW GRAY,TRIM1#

 1
88904-20270E0

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ),ANTELOPE,TRIM4#

 1
88904-20270B0

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ),SHADOW GRAY,TRIM1#

 1
88904-20260E0

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ),ANTELOPE,TRIM4#

 1
88904-20270B1

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ),DK. CHARCOAL,TRIM17

 1
88904-20260B1

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ),DK. CHARCOAL,TRIM17

 1
88904-20270B0

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ),SHADOW GRAY,TRIM11

 1
88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2
88905-20260

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88905-20270

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88912 - FAN, AIR PURIFIER
88912-12050

AT21#,CT21#,ST21#

 1
88920A - PURIFIER ASSY, AIR
88920-20260

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88920-20270

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88926 - FILTER, AIR PURIFIER
88926-12050

AT21#,CT21#,ST21#

 1
88928A - CASE, AIR PURIFIER FILTER
88928-12050

AT21#,CT21#,ST21#

 1
88930A - SWITCH ASSY, AIR PURIFIER
88930-20190

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88930-20200

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88931 - SENSOR, SMOKE
88931-24050

AT21#,CT21#,ST21#

 1
88950 - AMPLIFIER ASSY, AIR PURIFIER
88950-20270

AT21#,CT21#,ST21#

ｱﾘ(ｵ-ﾄ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88950-20260

AT21#,CT21#,ST21#

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱﾋﾟﾕﾘﾌｱｲｱ)

 1
88960A - GRILLE ASSY, AIR PURIFIER
88960-12050E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
88960-12050B1

AT21#,CT21#,ST21#

DK. CHARCOAL,TRIM17

 1
88960-12050B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 1
88960-12050B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 1
88960-12050B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
Common parts
90464-00537
91661-40616
93560-15010
93567-55016
94525-00600
