AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9601- )

Click highlighted areas on diagram

ｴｱ ﾀﾞｸﾄ

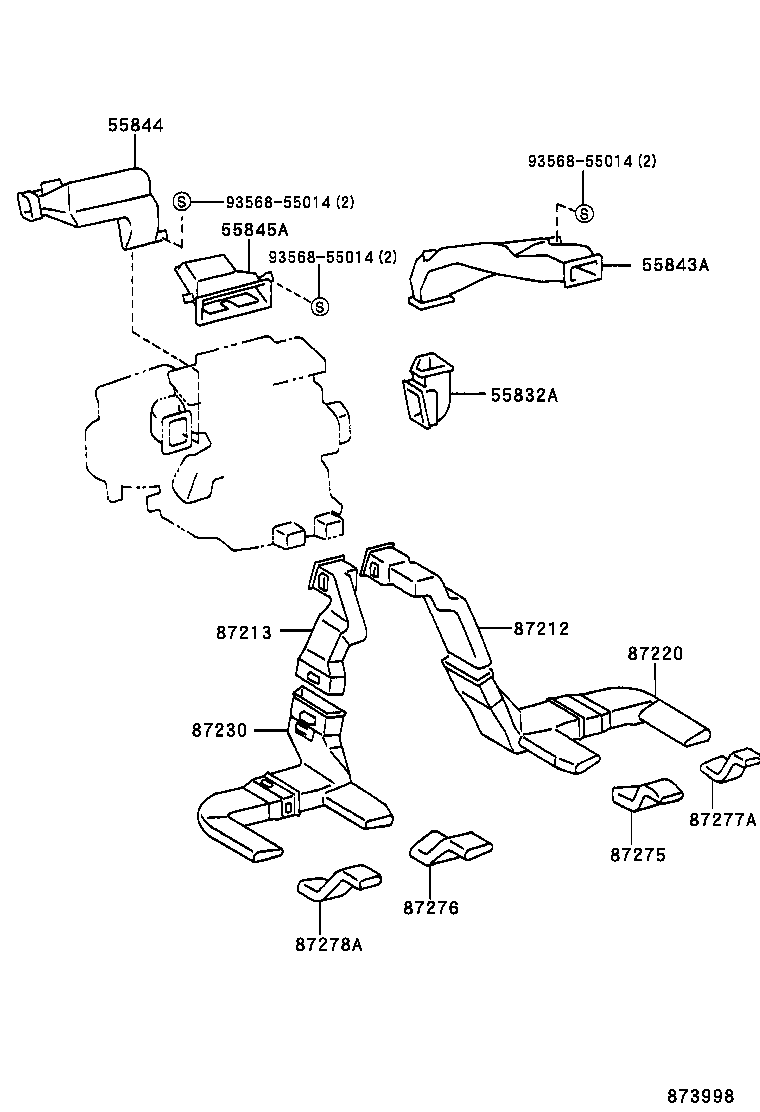

diagram 55832A 55843A 55844 55845A 87212 87213 87220 87230 87275 87276 87277A 87278A 9356855014 9356855014 9356855014
Part # Description Qty Price
55832A - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2
55832-20110

AT21#,CT21#,ST21#

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-20270

AT21#,CT21#,ST21#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-20250

AT21#,CT21#,ST21#

 1
55844-20350

AT21#,CT21#,ST21#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-20290

AT21#,CT21#,ST21#

 1
87212 - DUCT, AIR, REAR NO.1
87212-20100

AT21#,CT21#,ST21#

 1
87213 - DUCT, AIR, REAR NO.2
87213-20100

AT21#,CT21#,ST21#

 1
87220 - DUCT ASSY, AIR
87220-20100

AT21#,CT21#,ST21#

 1
87230 - DUCT ASSY, AIR, HEATER
87230-20070

AT21#,CT21#,ST21#

 1
87275 - DUCT, FLOOR HEATER AIR, NO.1 RH
87275-20010

AT21#,CT21#,ST21#

 1
87276 - DUCT, FLOOR HEATER AIR, NO.1 LH
87276-20010

AT21#,CT21#,ST21#

 1
87277A - DUCT, FLOOR HEATER AIR, NO.2 RH
87277-20010

AT21#,CT21#,ST21#

 1
87278A - DUCT, FLOOR HEATER AIR, NO.2 LH
87278-20010

AT21#,CT21#,ST21#

 1
Common parts
93568-55014

ILLUST NO. 3 OF 3(9601- )

Click highlighted areas on diagram

ｾﾝｻ-

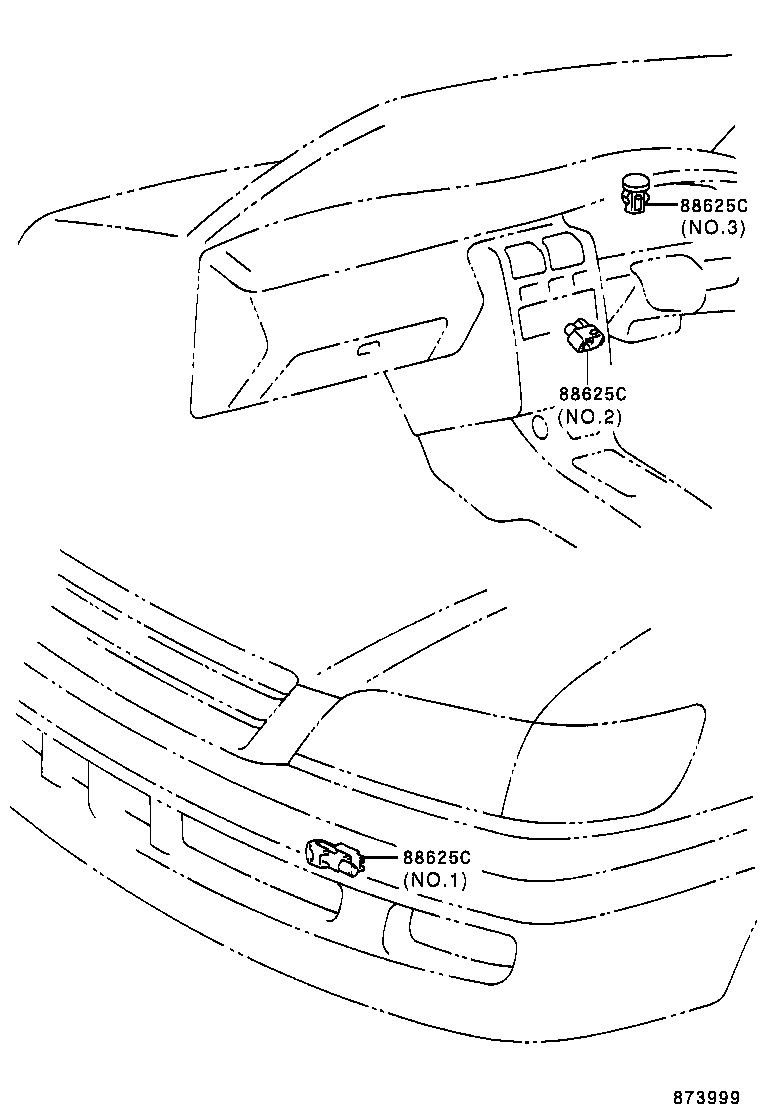

diagram 88625C 88625C 88625C
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-20490

AT21#,CT21#,ST21#

NO.2

 1
88625-32170

AT21#,CT21#,ST21#

NO.1

 1
88625-32160

AT21#,CT21#,ST21#

NO.3

 1
88625-32171

AT21#,CT21#,ST21#

NO.1

 1
88625C - THERMISTOR, COOLER
88625-20490

AT21#,CT21#,ST21#

NO.2

 1
88625-32170

AT21#,CT21#,ST21#

NO.1

 1
88625-32160

AT21#,CT21#,ST21#

NO.3

 1
88625-32171

AT21#,CT21#,ST21#

NO.1

 1
88625C - THERMISTOR, COOLER
88625-20490

AT21#,CT21#,ST21#

NO.2

 1
88625-32170

AT21#,CT21#,ST21#

NO.1

 1
88625-32160

AT21#,CT21#,ST21#

NO.3

 1
88625-32171

AT21#,CT21#,ST21#

NO.1

 1

ILLUST NO. 1 OF 3(9601-9712)

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙ

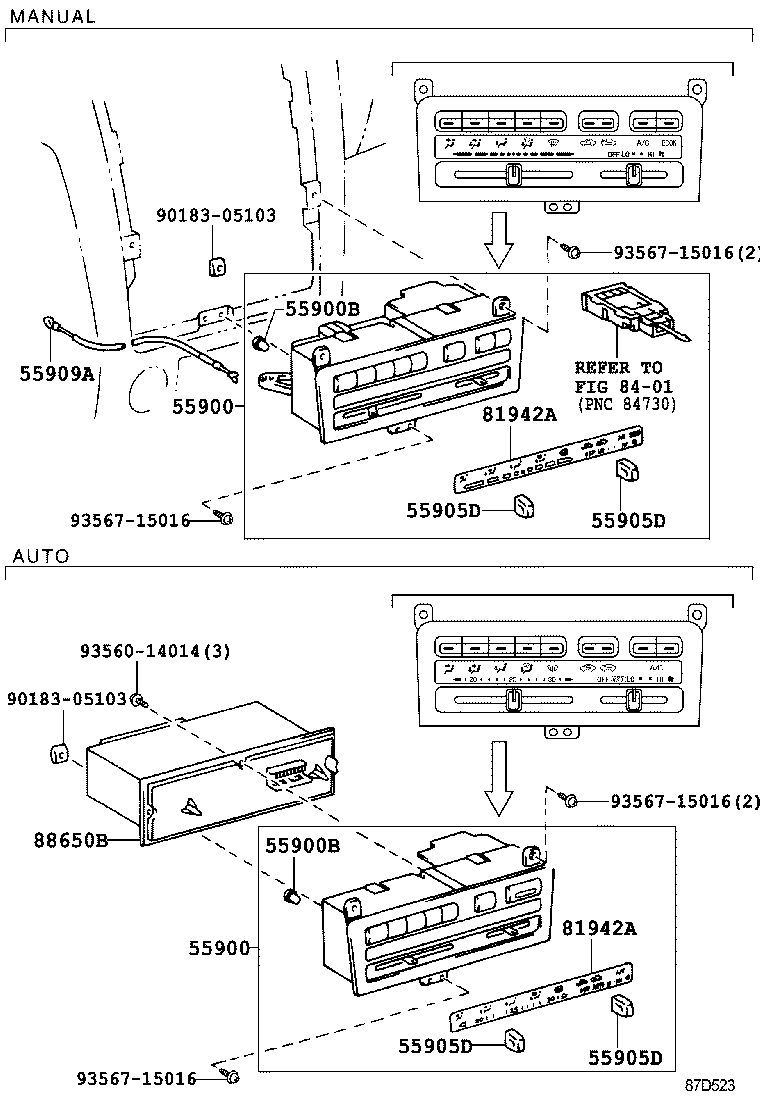

diagram 55900 55900 55900B 55900B 55905D 55905D 55905D 55905D 55909A 81942A 81942A 8401 88650B 9018305103 9018305103 9356014014 9356715016 9356715016 9356715016 9356715016
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-2B350

AT21#,CT21#,ST215

 1
55900-2B120

AT21#

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-2B350

AT21#,CT21#,ST215

 1
55900-2B120

AT21#

 1
55900B - BULB, AIR CONDITIONER CONTROL
84999-70018

AT21#,CT21#,ST21#

14V 1.4W,ｷｬｯﾌﾟ付き

 2
84999-70012

AT21#,CT21#,ST21#

14V 1.4W,ｷｬｯﾌﾟ付き

 2
90010-05101

AT21#,CT21#,ST21#

14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き

 6
55900B - BULB, AIR CONDITIONER CONTROL
84999-70018

AT21#,CT21#,ST21#

14V 1.4W,ｷｬｯﾌﾟ付き

 2
84999-70012

AT21#,CT21#,ST21#

14V 1.4W,ｷｬｯﾌﾟ付き

 2
90010-05101

AT21#,CT21#,ST21#

14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き

 6
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST21#

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST21#

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST21#

 2
55905D - KNOB SUB-ASSY, CONTROL
55905-20380

AT21#,CT21#,ST21#

 2
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20190

AT21#,CT21#,ST215

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-20470

AT21#,CT21#,ST215

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-20470

AT21#,CT21#,ST215

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-21070

AT21#

 1
Common parts
90183-05103
93560-14014
93567-15016
Linked diagrams
8401

ILLUST NO. 1 OF 3(9712- )

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙ

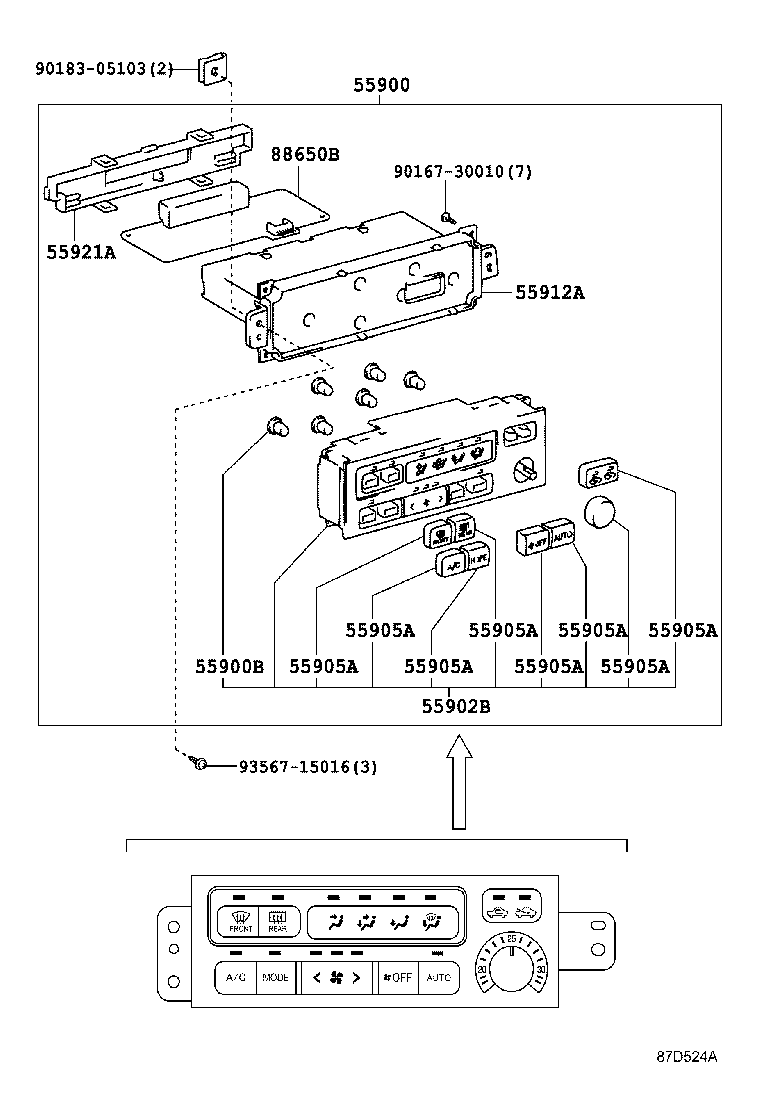

diagram 55900 55900B 55902B 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55912A 55921A 88650B 9016730010 9018305103 9356715016
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-2B350

AT21#,CT21#,ST215

 1
55900-2B120

AT21#

 1
55900B - BULB, AIR CONDITIONER CONTROL
84999-70018

AT21#,CT21#,ST21#

14V 1.4W,ｷｬｯﾌﾟ付き

 2
84999-70012

AT21#,CT21#,ST21#

14V 1.4W,ｷｬｯﾌﾟ付き

 2
90010-05101

AT21#,CT21#,ST21#

14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き

 6
55902B - CONTROL SUB-ASSY, HEATER
55902-22120

AT21#,CT21#,ST21#

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55905A - KNOB, HEATER CONTROL
55905-60210

AT21#,CT21#,ST21#

ﾓｰﾄﾞ

 1
55905-60190

AT21#,CT21#,ST21#

ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ

 1
55905-60200

AT21#,CT21#,ST21#

ﾘﾔ ﾃﾞﾌｫｶﾞ

 1
55905-60230

AT21#,CT21#,ST21#

内気/外気

 1
55905-60220

AT21#,CT21#,ST21#

OFF

 1
55905-60170

AT21#,CT21#,ST21#

TEMP

 1
55905-60180

AT21#,CT21#,ST21#

A/C

 1
55905-60240

AT21#,CT21#,ST21#

ｵｰﾄ

 1
55912A - HOUSING, HEATER CONTROL
55912-20110

AT21#,CT21#,ST21#

 1
55921A - RETAINER, HEATER CONTROL
55921-22070

AT21#,CT21#,ST21#

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-21070

AT21#

 1
Common parts
90167-30010
90183-05103
93567-15016
