AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

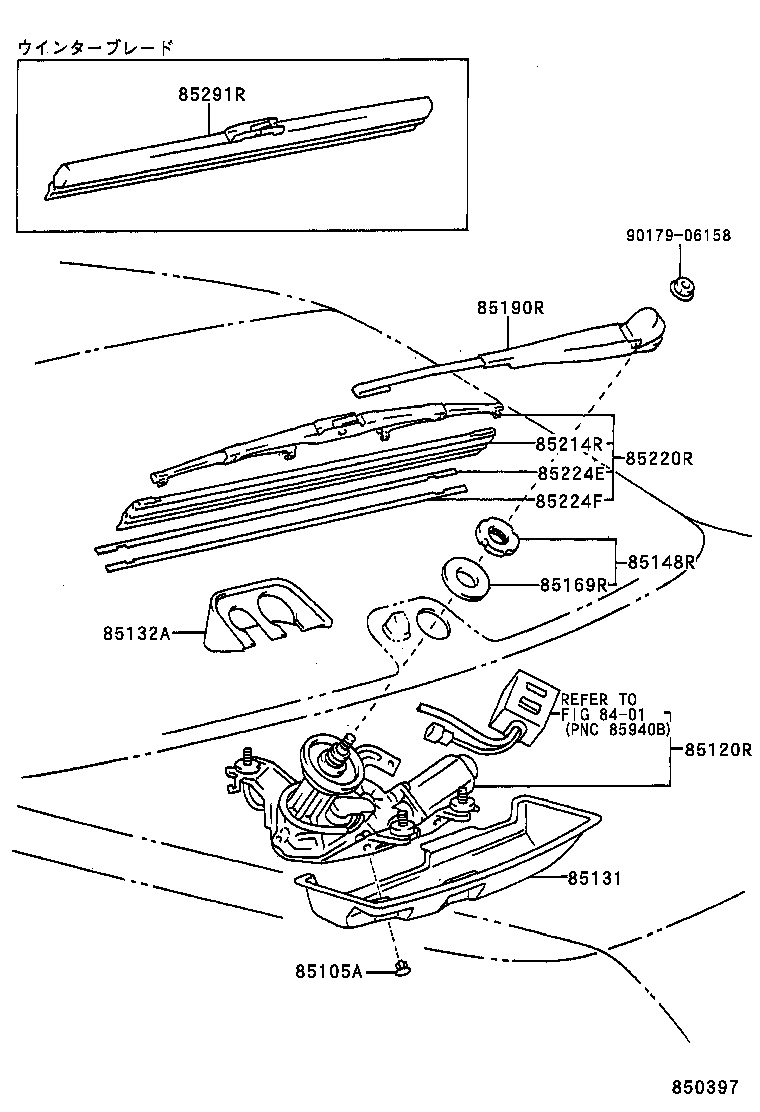

Click highlighted areas on diagram

diagram 8401 85105A 85120R 85131 85132A 85148R 85169R 85190R 85214R 85220R 85224E 85224F 85291R 9017906158
Part # Description Qty Price
85105A - CLIP, REAR WIPER PROTECTOR
90467-07059E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 2
90467-0707222

AT21#,CT21#,ST21#

BLACK,TRIM11,17

 2
90467-0707222

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#

 2
90467-0707222

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#

 2
90467-07059B2

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 2
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85130-20760

AT21#,CT21#,ST21#

 1
85131 - COVER, REAR WIPER MOTOR
85131-20710

AT21#,CT21#,ST21#

 1
85132A - COVER, REAR WIPER SHAFT
85132-20730B1

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 1
85132-20730B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 1
85132-20730B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 1
85132-20730B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
85132-20730E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85133-12770

AT21#,CT21#,ST21#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90210-28002

AT21#,CT21#,ST21#

 1
85190R - ARM ASSY, REAR WIPER
85241-20100

AT21#,CT21#,ST21#

 1
85214R - RUBBER, REAR WIPER
85214-10100

AT21#,CT21#,ST21#

 1
85220R - BLADE ASSY, REAR WIPER
85242-20070

AT21#,CT21#,ST21#

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-10200

AT21#,CT21#,ST21#

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-10200

AT21#,CT21#,ST21#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60060

AT21#,CT21#,ST21#

 1
85291-13020

AT21#,CT21#,ST21#

 1
Common parts
90179-06158
Linked diagrams
8401
