AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

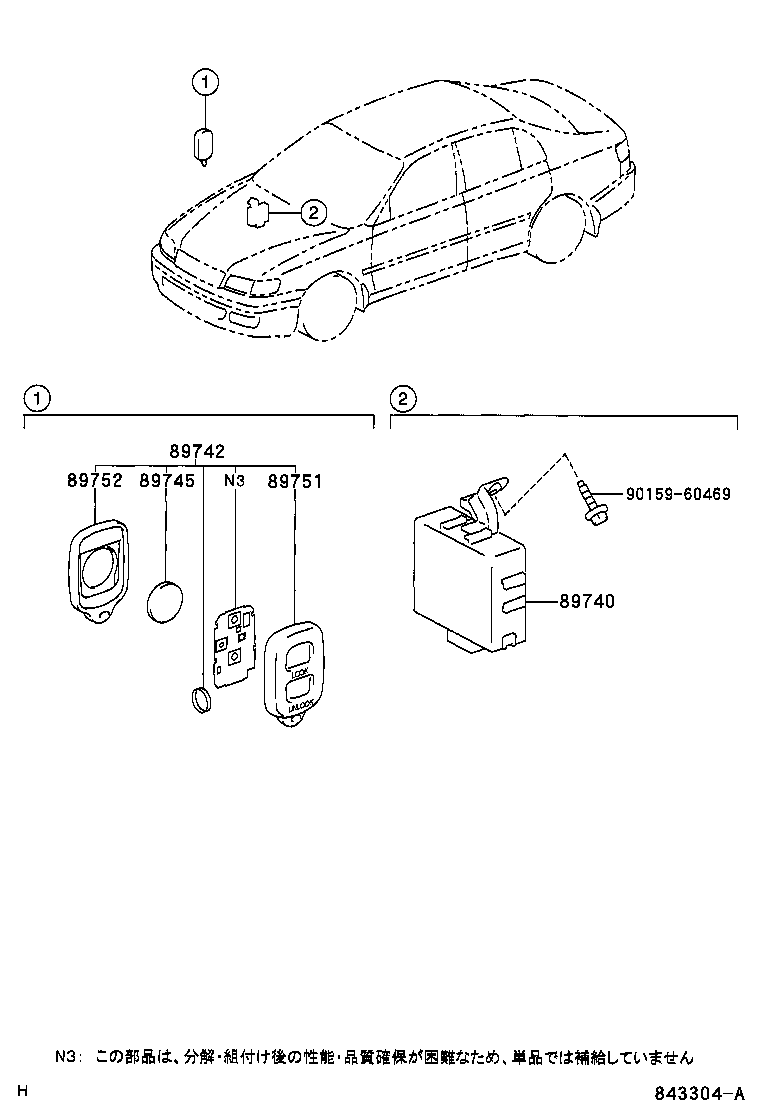

Click highlighted areas on diagram

diagram 89740 89742 89745 89751 89752 9015960469
Part # Description Qty Price
89740 - COMPUTER ASSY, DOOR CONTROL W/RECEIVER
89740-20010

AT21#,CT21#,ST21#

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-20190

AT21#,CT21#,ST21#

 1
89742-20190

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z)

 2
89745 - BATTERY, TRANSMITTER
89745-50010

AT21#,CT21#,ST21#

 1
89745-50010

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z)

 2
89751 - COVER, TRANSMITTER HOUSING
F1672-20010

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z)

 2
F1672-20010

AT21#,CT21#,ST21#

 1
89752 - CASE, TRANSMITTER HOUSING
F1673-20010

AT21#,CT21#,ST21#

 1
F1673-20010

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z)

 2
Common parts
90159-60469
