AT210-AEPMK (1996)
Toyota Corona
Production
Jan 1996
-
Dec 2001
Engine
4AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )AT21#..ATM ; (9612- )D4

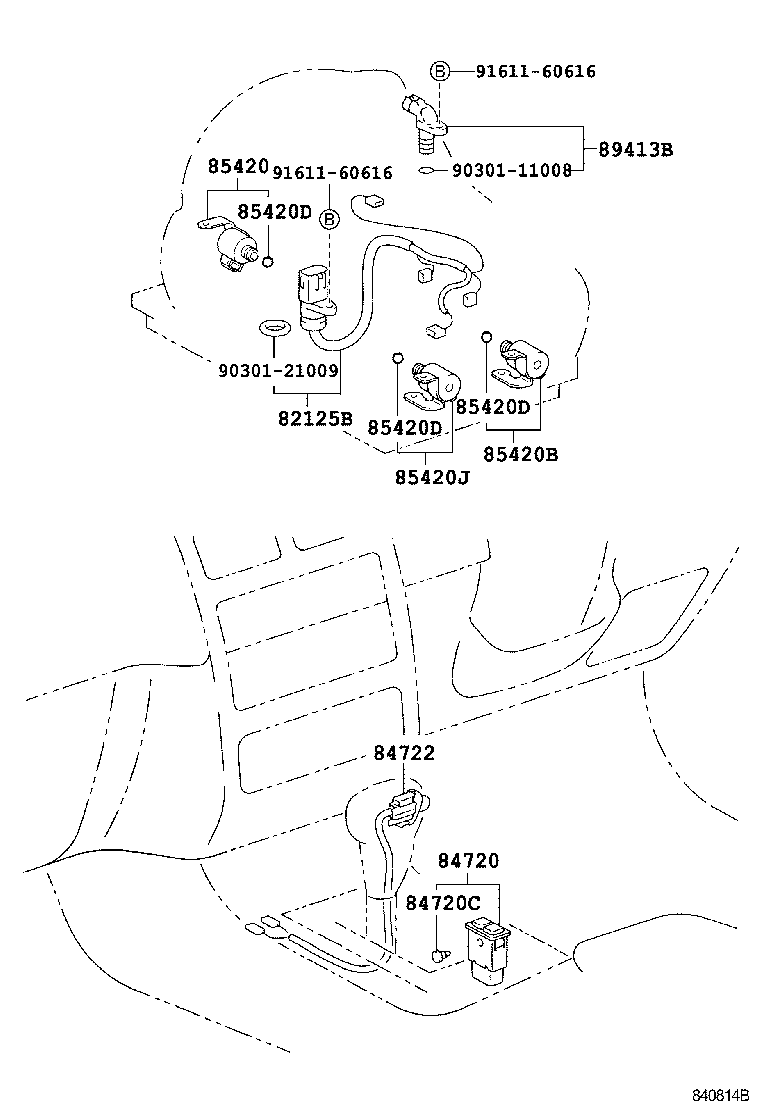

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-20230 |
ST210..D4;AT21#..ATM |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-20170 |
AT21#,ST21#..ATM |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-20110 |
AT21#,ST21#..ATM |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-20170C0 |
AT21#,CT210,ST21#..ATM..(EFI,TD) BLACK,TRIM1#,4# |
1 | ||
| 84722-20170C0 |
AT21#,CT210,ST21#..ATM BLACK,TRIM1#,4# |
1 | ||
| 84722-20170C0 |
AT21#,CT21#,ST21#..ATM BLACK,TRIM11,17 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-20160 |
ST210..D4;AT21#..ATM |
1 | ||
| 85420-21110 |
AT21#,ST210..ATM AISIN |
1 | ||
| 85420-21120 |
AT21#,ST210..ATM DENSO |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12100 |
ST210..D4;AT21#..ATM |
1 | ||
| 85420-21010 |
AT21#,ST210..ATM DENSO |
1 | ||
| 85420-21020 |
AT21#,ST210..ATM AISIN |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST210..D4;AT21#,CT211,216,ST215..ATM |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST210..D4;AT21#,CT211,216,ST215..ATM |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ST210..D4;AT21#,CT211,216,ST215..ATM |
3 | ||
| 85420J - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-21030 |
AT21#,ST210..ATM DENSO |
1 | ||
| 85420-12120 |
ST210..D4;AT21#..ATM |
1 | ||
| 85420-21040 |
AT21#,ST210..ATM AISIN |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-20010 |
AT21#,ST210..ATM |
1 | ||
| 89413-32010 |
ST210..D4;AT21#..ATM |
1 | ||
| Common parts | ||||
| 90301-11008 | ||||
| 90301-21009 | ||||
| 91611-60616 | ||||
