AT210-AEPMK (1996)
Toyota Corona

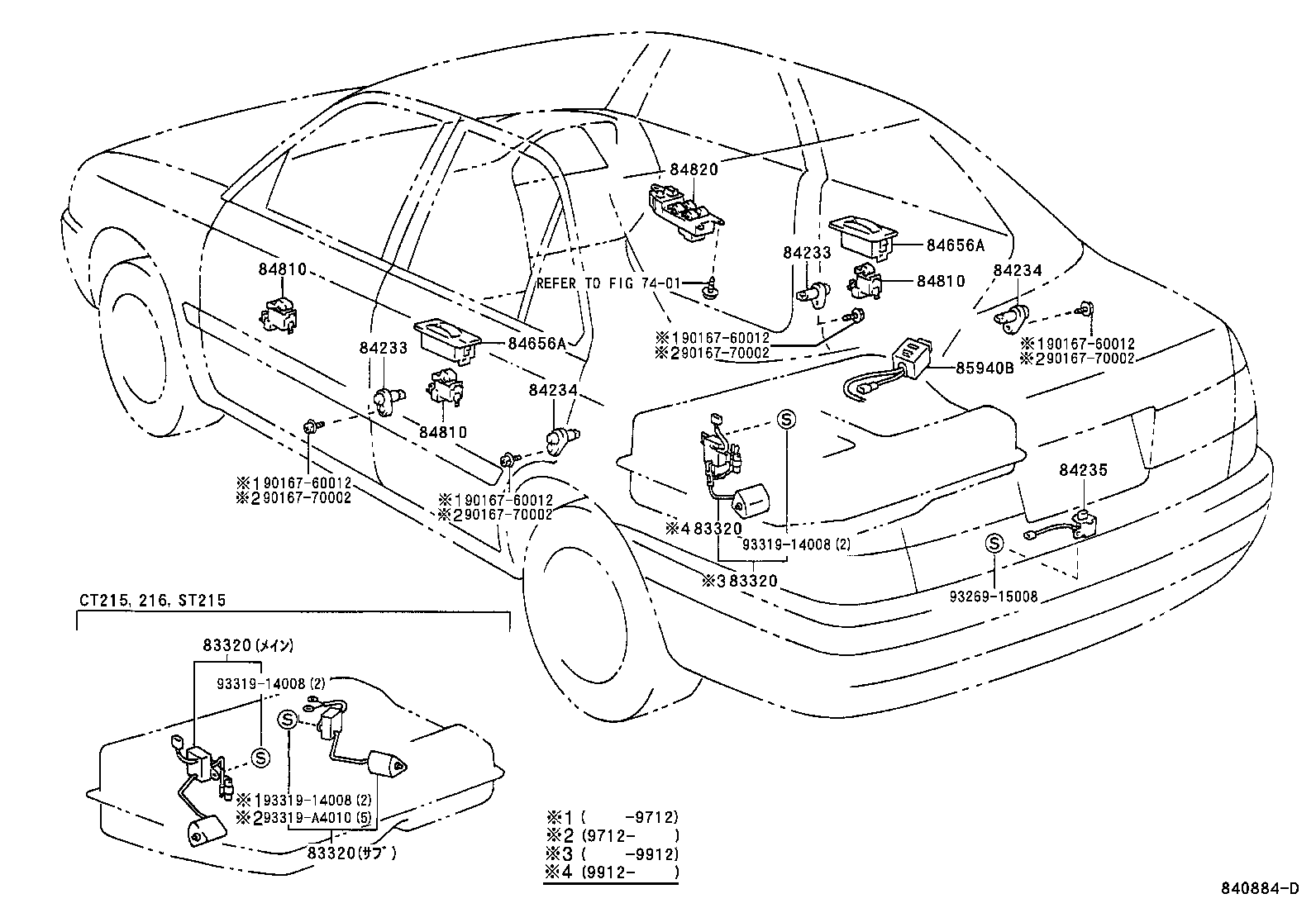

ILLUST NO. 6 OF 6(9601- )
ﾙ-ﾌ,ﾄﾞｱ,ｼ-ﾄ & ﾗﾂｹ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
AT21#,ST210 ﾏｰｸ=20490 |
1 | ||
| 83320-21140 |
AT21#,ST210 ﾏｰｸ=21140 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
AT21#,ST210 ﾏｰｸ=20490 |
1 | ||
| 83320-21140 |
AT21#,ST210 ﾏｰｸ=21140 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
AT21#,ST210 ﾏｰｸ=20490 |
1 | ||
| 83320-21140 |
AT21#,ST210 ﾏｰｸ=21140 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
AT21#,ST210 ﾏｰｸ=20490 |
1 | ||
| 83320-21140 |
AT21#,ST210 ﾏｰｸ=21140 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST21# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST21# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST21# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12160 |
AT21#,CT21#,ST21# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20380 |
AT21#,CT21#,ST21# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20040E1 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
2 | ||
| 84656-20040B1 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
2 | ||
| 84656-20040B1 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
2 | ||
| 84656-20040B1 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
2 | ||
| 84656-20040B2 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20040E1 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
2 | ||
| 84656-20040B1 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
2 | ||
| 84656-20040B1 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
2 | ||
| 84656-20040B1 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
2 | ||
| 84656-20040B2 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AT21#,CT21#,ST21# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AT21#,CT21#,ST21# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AT21#,CT21#,ST21# |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20510 |
AT21#,CT21#,ST21# |
1 | ||
| 84820-21020 |
AT21#,CT21#,ST21# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-20200 |
AT21#,CT21#,ST21# |
1 | ||
| Common parts | ||||
| 90167-60012 | ||||
| 90167-70002 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 7401 | ||||

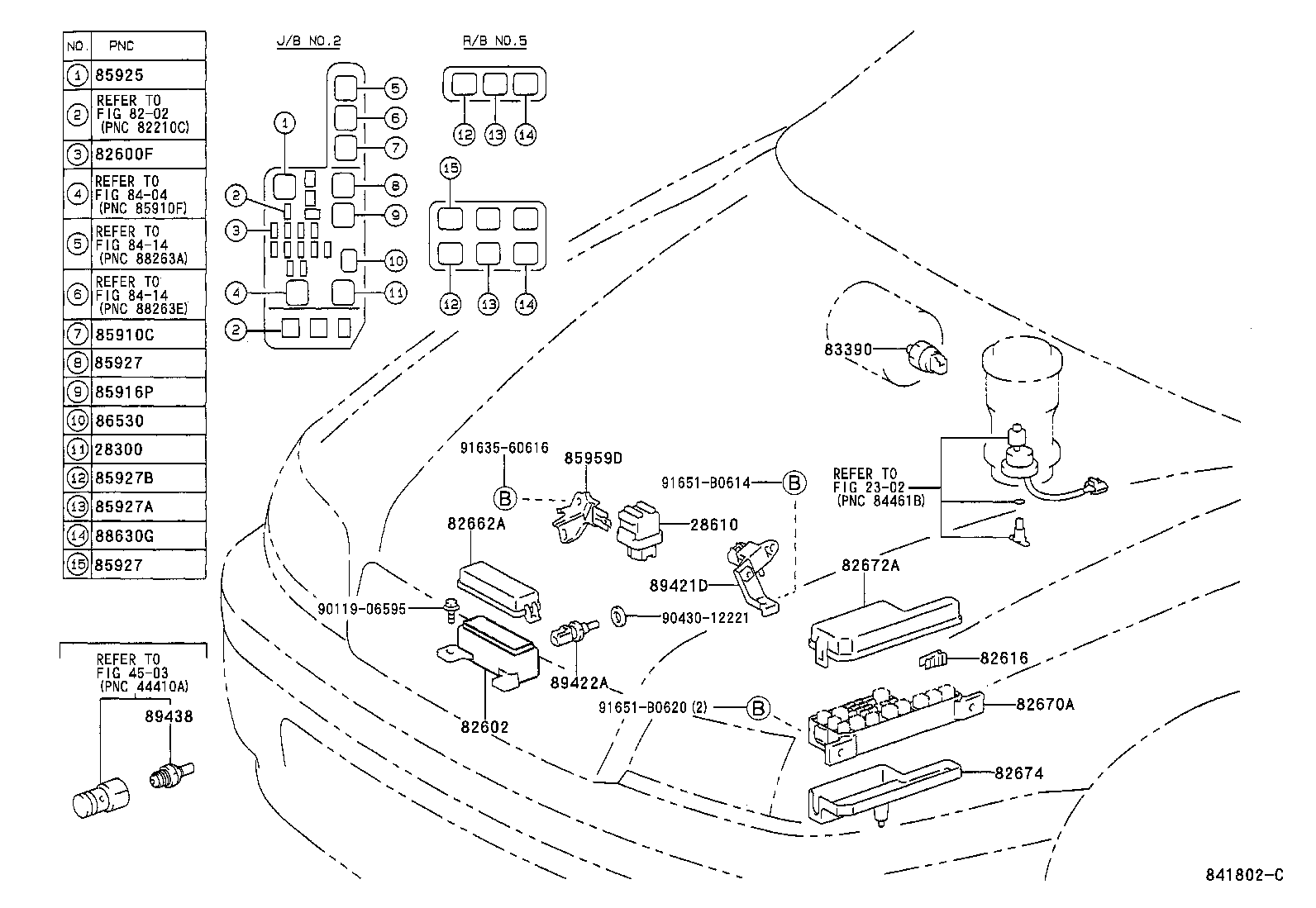

ILLUST NO. 2 OF 6(9601-9712)
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
AT21#,CT21#,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AT21#,ST210..EFI 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 90982-09010 |
AT21#,CT21#,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
5 | ||
| 90982-09013 |
AT21#,CT21#,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09008 |
AT21#,CT21#,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
4 | ||
| 90982-09009 |
AT21#,CT21#,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
4 | ||
| 90982-09007 |
AT21#,CT21#,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
AT21#,CT21#,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
AT21#,CT21#,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AT21#,CT21#,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AT21#,CT21#,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
AT21#,CT21#,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
2 | ||
| 90982-09011 |
AT21#,CT21#,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82742-20020 |
AT21#,ST21# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AT21#,CT21#,ST21# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-20180 |
AT21#,ST21# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-20010 |
CT210..MTM;AT21#,ST21#..EFI |
1 | ||
| 82720-21010 |
AT21#,ST215 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-2B030 |
CT210..MTM;AT21#,ST21#..EFI |
1 | ||
| 82672-2B160 |
AT21#,ST21# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-21020 |
AT21#,CT21#,ST21# |
1 | ||
| 82674-20040 |
AT21#,CT21#,ST21# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT21#,CT21#,ST21# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT21#,CT21#,ST21# |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-17010 |
CT210..MTM;AT21#,ST21# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
CT210..MTM;AT21#,ST21# |
1 | ||
| 90987-02009 |
AT21#,CT21#,ST21# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
CT210..MTM;AT21#,ST21# |
1 | ||
| 90987-02009 |
AT21#,CT21#,ST21# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02015 |
AT21#,ST21# ｸﾞﾘｰﾝ |
1 | ||
| 90987-02012 |
AT21#,ST21# ﾌﾞﾗｯｸ |
1 | ||
| 90987-02012 |
AT21#,ST21# |
1 | ||
| 90987-02012 |
AT21#,ST21# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04004 |
AT21#,ST21# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 90080-87010 |
AT21#,CT21#,ST21# ｸﾞﾚｰ |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
AT21#,CT211,216,ST21# |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# ﾌﾞﾗｯｸ |
1 | ||
| 90987-02015 |
AT21#,CT21#,ST21# ｸﾞﾘｰﾝ |
1 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90430-12221 | ||||
| 91635-60616 | ||||
| 91651-B0614 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 4503 | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

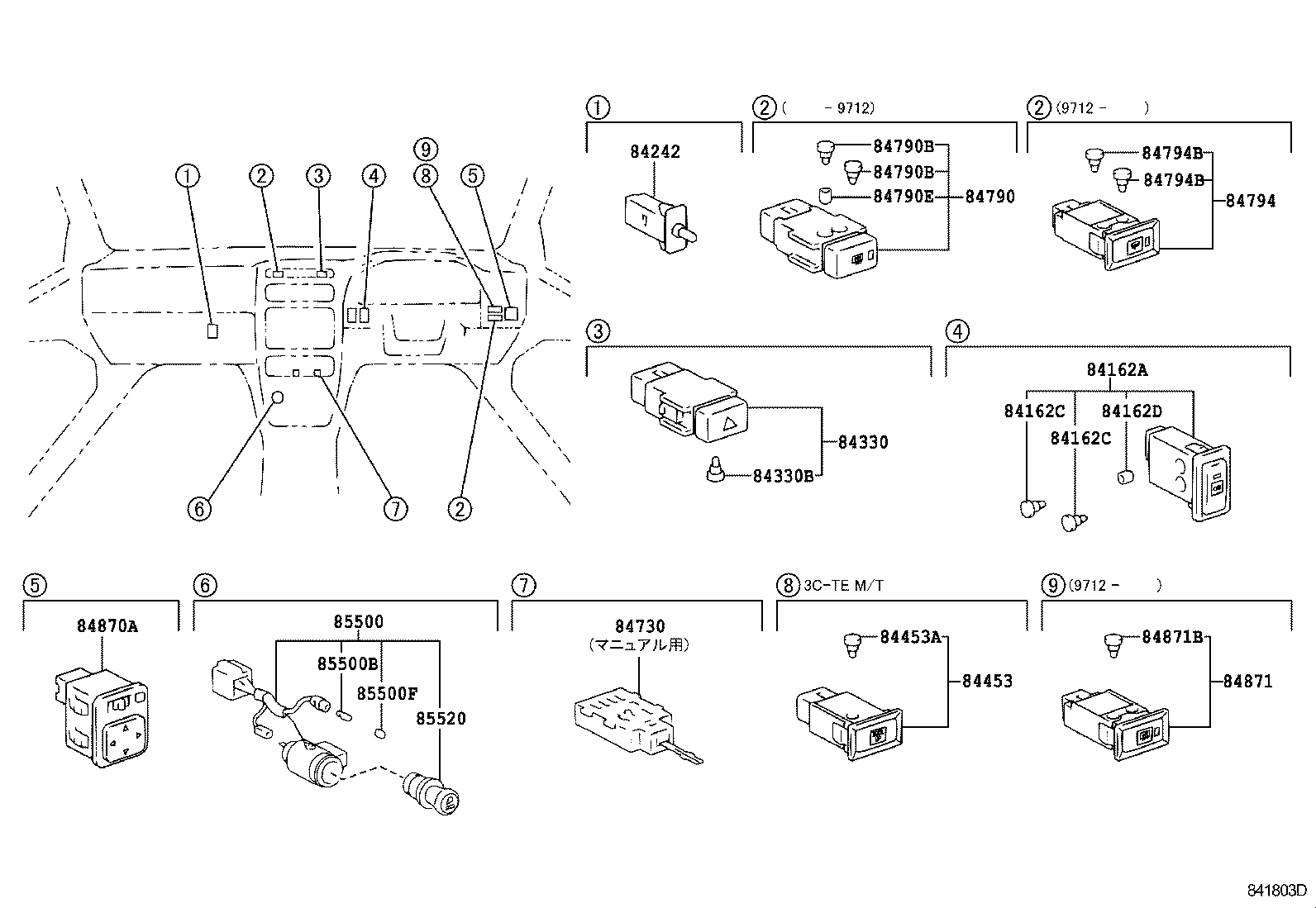

ILLUST NO. 4 OF 6(9601- )
ｲﾝｽﾄﾙﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT21#,CT21#,ST21# 14V 0.7W |
2 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10780 |
AT21#,CT21#,ST21# 14V 0.7W |
2 | ||
| 84162D - CAP, REAR FOG LAMP BULB | ||||
| 84998-10640 |
AT21#,CT21#,ST21# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20370 |
AT21#,CT21#,ST21# |
1 | ||
| 84332-20350 |
AT21#,CT21#,ST21# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
AT21#,CT21#,ST21# 14V 0.91W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20270 |
AT21#,CT21#,ST215 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20480 |
AT21#,CT21#,ST21# |
1 | ||
| 84790-20420 |
AT21#,CT21#,ST21# ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
AT21#,CT21#,ST21# 14V 0.91W |
2 | ||
| 84999-10560 |
AT21#,CT21#,ST21# 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
AT21#,CT21#,ST21# 14V 0.91W |
2 | ||
| 84999-10560 |
AT21#,CT21#,ST21# 12V 0.7W,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10760 |
AT21#,CT21#,ST21# |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84790-21010 |
AT21#,CT21#,ST21# |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
AT21#,CT21#,ST21# 14V 0.91W |
2 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
AT21#,CT21#,ST21# 14V 0.91W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16040 |
AT21#,CT21#,ST21# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20280 |
AT21#,CT21#,ST21# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT21#,CT21#,ST21# 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT21#,CT21#,ST21# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AT21#,CT21#,ST21# |
1 | ||
ILLUST NO. 2 OF 6(9712- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
AT21#,CT21#,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AT21#,ST210..EFI 15A,ﾐﾆ ﾋｭｰｽﾞ,青,ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 90982-09010 |
AT21#,CT21#,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
5 | ||
| 90982-09013 |
AT21#,CT21#,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
2 | ||
| 90982-09008 |
AT21#,CT21#,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
4 | ||
| 90982-09009 |
AT21#,CT21#,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
4 | ||
| 90982-09007 |
AT21#,CT21#,ST21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09008 |
AT21#,CT21#,ST21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
AT21#,CT21#,ST21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AT21#,CT21#,ST21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AT21#,CT21#,ST21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
AT21#,CT21#,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
2 | ||
| 90982-09011 |
AT21#,CT21#,ST21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AT21#,CT21#,ST21# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-20010 |
CT210..MTM;AT21#,ST21#..EFI |
1 | ||
| 82720-21010 |
AT21#,ST215 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-2B030 |
CT210..MTM;AT21#,ST21#..EFI |
1 | ||
| 82672-2B160 |
AT21#,ST21# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-21020 |
AT21#,CT21#,ST21# |
1 | ||
| 82674-20040 |
AT21#,CT21#,ST21# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AT21#,CT21#,ST21# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT21#,CT21#,ST21# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
CT210..MTM;AT21#,ST21# |
1 | ||
| 90987-02009 |
AT21#,CT21#,ST21# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02015 |
AT21#,ST21# ｸﾞﾘｰﾝ |
1 | ||
| 90987-02012 |
AT21#,ST21# ﾌﾞﾗｯｸ |
1 | ||
| 90987-02012 |
AT21#,ST21# |
1 | ||
| 90987-02012 |
AT21#,ST21# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04004 |
AT21#,ST21# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT21#,CT21#,ST21# |
1 | ||
| 90080-87010 |
AT21#,CT21#,ST21# ｸﾞﾚｰ |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
AT21#,CT211,216,ST21# |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# ﾌﾞﾗｯｸ |
1 | ||
| 90987-02015 |
AT21#,CT21#,ST21# ｸﾞﾘｰﾝ |
1 | ||
| Common parts | ||||
| 91635-60616 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 4503 | ||||
| 8202 | ||||
| 8404 | ||||

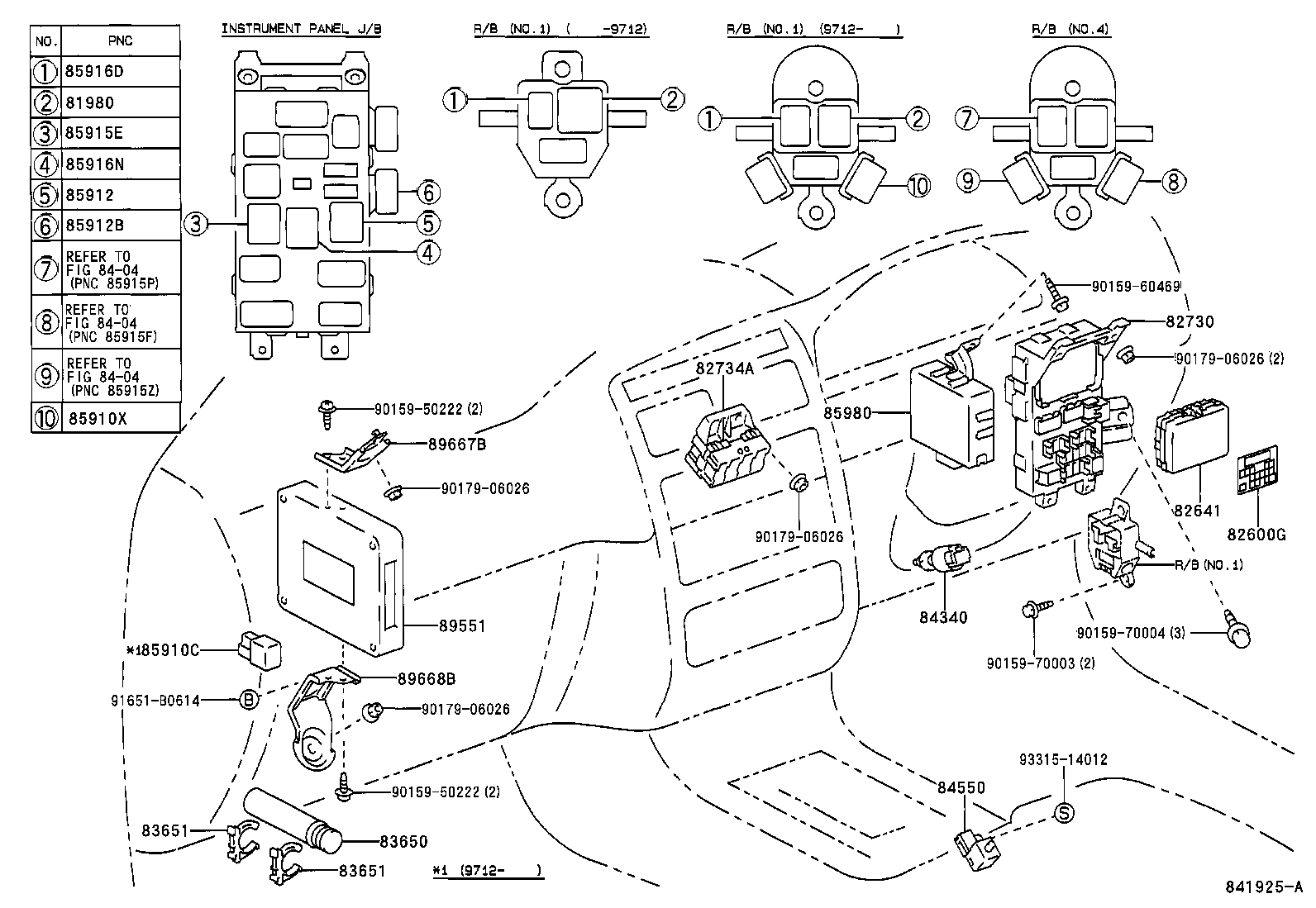

ILLUST NO. 3 OF 6(9601- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT21#,CT21#,ST21# |
1 | ||
| 81980-12110 |
AT21#,CT21#,ST21# |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-20100 |
AT21#,CT21#,ST21# |
1 | ||
| 82685-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20200 |
AT210,CT21# |
1 | ||
| 82641-21010 |
AT210,CT21# ﾅｼ(ｷ- ｼﾖｳﾒｲ) |
1 | ||
| 82641-32052 |
AT210,CT21# |
1 | ||
| 82641-20200 |
AT210,CT21#,ST215 |
1 | ||
| 82641-21030 |
AT21#,CT21#,ST215 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82641-21030 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-20060 |
AT21#,CT21#,ST21# |
1 | ||
| 82730-20040 |
AT21#,CT21#,ST21# |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-20030 |
AT21#,CT21#,ST21# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT21#,CT21#,ST21# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT21#,CT21#,ST21# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT21#,CT21#,ST21# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AT21#,CT21#,ST21# |
1 | ||
| 84340-35020 |
AT21#,CT21#,ST21# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT21#,CT21#,ST21# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT21#,CT21#,ST21# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87010 |
AT21#,CT21#,ST21# |
1 | ||
| 90080-87011 |
AT21#,CT21#,ST21# |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90080-87010 |
AT21#,CT21#,ST21# |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# |
1 | ||
| 90080-87011 |
AT21#,CT21#,ST21# |
1 | ||
| 85915E - RELAY | ||||
| 90080-87011 |
AT21#,CT21#,ST21# |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# |
1 | ||
| 90080-87010 |
AT21#,CT21#,ST21# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02015 |
AT21#,CT21#,ST21# ｸﾞﾘｰﾝ |
1 | ||
| 90987-02012 |
AT21#,CT21#,ST21# ﾌﾞﾗｯｸ |
1 | ||
| 90080-87010 |
AT21#,CT21#,ST21# ｸﾞﾚｰ |
1 | ||
| 90080-87011 |
AT21#,CT21#,ST21# ｸﾞﾚｰ |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20400 |
AT210,CT21#,ST215 |
1 | ||
| 85980-20400 |
AT210,CT21# |
1 | ||
| Common parts | ||||
| 90159-50222 | ||||
| 90159-60469 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90179-06026 | ||||
| 91651-B0614 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8404 | ||||

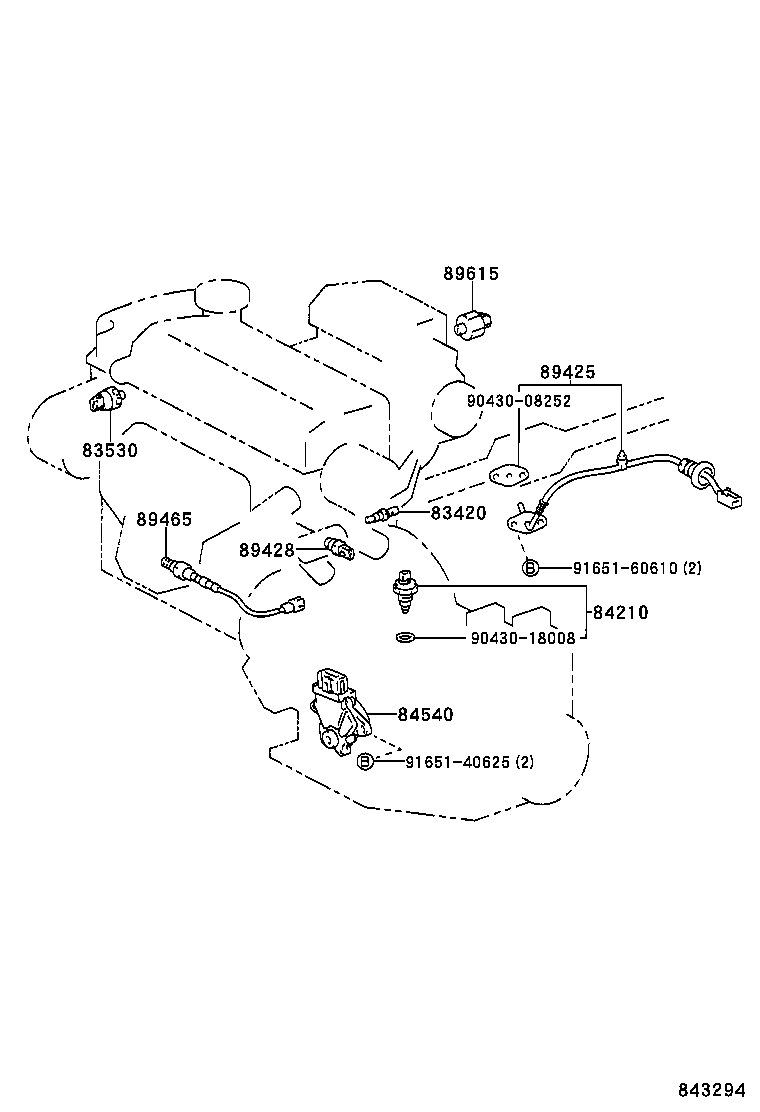

ILLUST NO. 1 OF 6(9601- )AT21#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
AT21# |
1 | ||
| 83420-20040 |
AT21#,ST21# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83420-AA010 |
AT21#,ST21# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AT21#,ST21# |
1 | ||
| 83530-60020 |
AT21# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12200 |
ST210..D4;AT21#..ATM 東海理化 |
1 | ||
| 84540-12210 |
ST210..D4;AT21#..ATM MATSUSHITA |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-80035 |
AT21#,ST210..EFI |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AT21# |
1 | ||
| 89428-10120 |
AT21# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12400 |
AT21# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12030 |
AT21# TOYOTA |
1 | ||
| 89615-22040 |
AT21# NIPPONDENSO |
1 | ||
| 89615-22030 |
AT21# MATSUSHITA |
1 | ||
| 89615-22050 |
AT21# TOYOTA |
1 | ||
| 89615-52010 |
AT21# MATSUSHITA |
1 | ||
| Common parts | ||||
| 90430-08252 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
| 91651-60610 | ||||

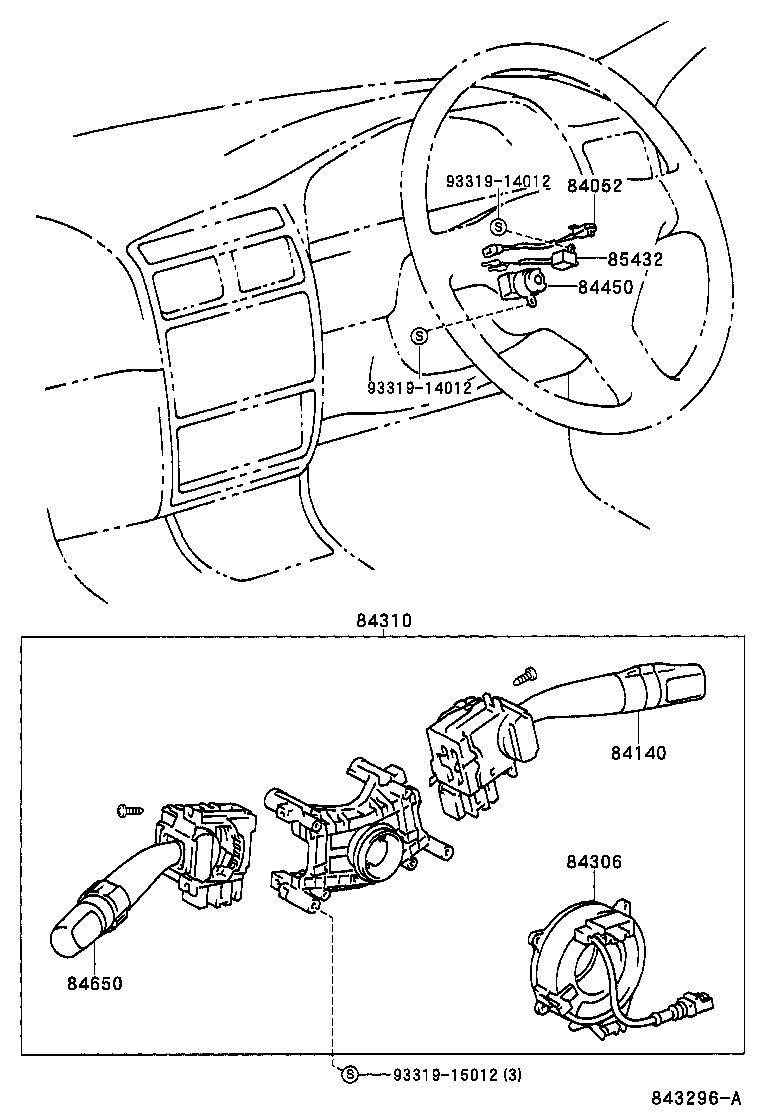

ILLUST NO. 5 OF 6(9601- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AT21#,CT21#,ST21# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12380 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84140-20570 |
AT21#,CT21#,ST215 |
1 | ||
| 84140-12380 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84140-20570 |
AT21#,CT21#,ST21# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-20080 |
AT21#,CT21#,ST21# MATSUSHITA |
1 | ||
| 84306-20090 |
AT21#,CT21#,ST215 |
1 | ||
| 84306-35010 |
AT21#,CT21#,ST21# 東海理化 |
1 | ||
| 84306-20050 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84306-12080 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84306-12070 |
AT21#,CT21#,ST21# |
1 | ||
| 84306-35010 |
AT21#,CT21#,ST215 東海理化 |
1 | ||
| 84306-20090 |
ST210..D4;AT21#,CT21#,ST215 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2L440 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-2L740 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-2L430 |
AT21#,CT21#,ST215 |
1 | ||
| 84310-2L740 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-2L590 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-2L730 |
AT21#,CT21#,ST215 |
1 | ||
| 84310-2L730 |
AT21#,CT21#,ST21# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AT21#,CT21#,ST21# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G440 |
AT21#,CT21#,ST21# ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-2G360 |
AT21#,CT21#,ST215 |
1 | ||
| 84652-2G380 |
AT21#,CT21#,ST215 ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12020 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
