AT210-AEPMK (1996)
Toyota Corona
ILLUST NO. 1 OF 2(9601-9712)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83147-20060 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83101-20070 |
AT21#,CT21#,ST21# 12V 3.4W W/GREEN CAP |
3 | ||
| 83101-14040 |
AT21#,ST215..ATM 12V 1.4W |
23 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83147-20060 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83101-20070 |
AT21#,CT21#,ST21# 12V 3.4W W/GREEN CAP |
3 | ||
| 83101-14040 |
AT21#,ST215..ATM 12V 1.4W |
23 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20030 |
AT21#,CT21#,ST21# |
1 | ||
| 83220-20160 |
AT21#,CT21#,ST215 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20560 |
AT21#,CT21#,ST215 |
1 | ||
| 83841-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 83821-20140 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83831-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
AT21#,ST21# |
1 | ||
| 83832-20130 |
AT21#,ST215 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-20140 |
AT21#..ATM |
1 | ||
| 83831-20140 |
AT21#,ST210..ATM |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 83832-20140 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 83887-20140 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-20140 |
AT21#,CT210,ST210..ATM |
1 | ||
| 83861-20570 |
AT21#..ATM |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-20130 |
AT21# |
1 | ||
| 83881-20560 |
AT21# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20560 |
AT21#,CT211 |
1 | ||
| 83882-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83883-20560 |
AT21#,CT21#,ST215 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83970-12020 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
AT21#,CT21#,ST21# |
1 | ||
| Common parts | ||||
| 83161-26060 | ||||
| 83161-26080 | ||||
| 83162-20140 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||

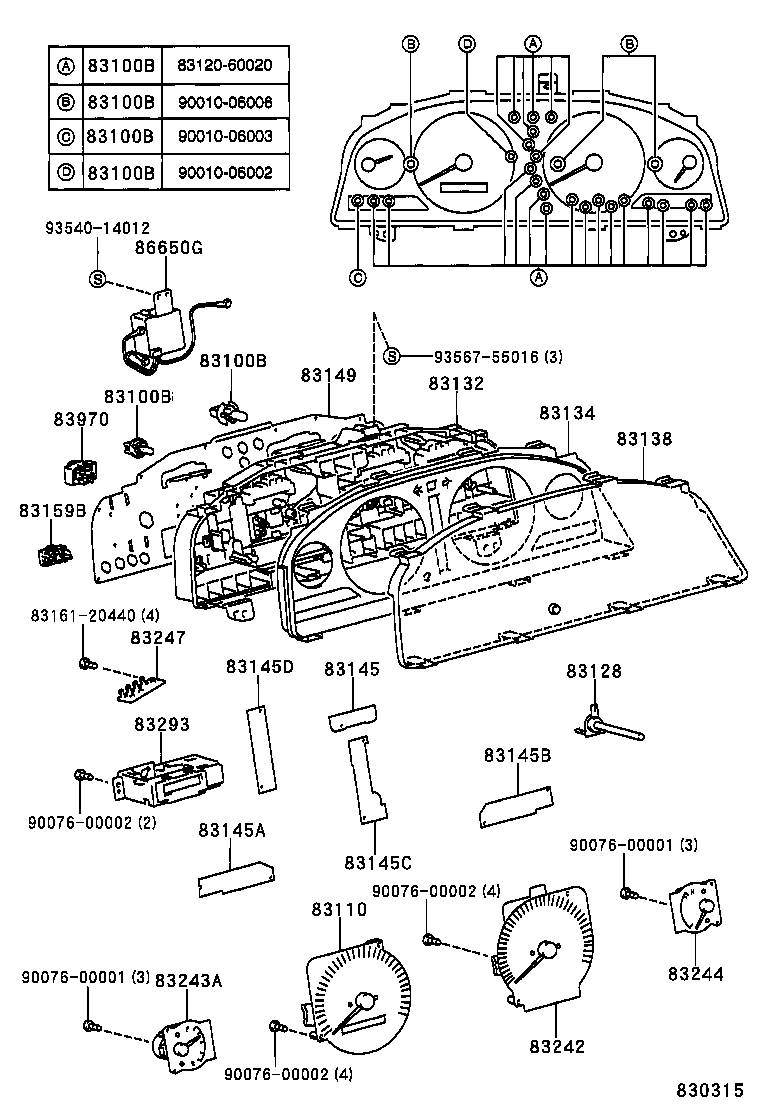

ILLUST NO. 1 OF 2(9712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20030 |
AT21#,CT21#,ST21# |
1 | ||
| 83220-20160 |
AT21#,CT21#,ST215 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-44010 |
AT21#,CT21#,ST215 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20560 |
AT21#,CT21#,ST215 |
1 | ||
| 83841-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 83821-20140 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83831-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
AT21#,ST21# |
1 | ||
| 83832-20130 |
AT21#,ST215 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-20140 |
AT21#..ATM |
1 | ||
| 83831-20140 |
AT21#,ST210..ATM |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 83832-20140 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 83887-20140 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-20140 |
AT21#,CT210,ST210..ATM |
1 | ||
| 83861-20570 |
AT21#..ATM |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
AT21#,CT21#,ST215 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-20130 |
AT21# |
1 | ||
| 83881-20560 |
AT21# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20560 |
AT21#,CT211 |
1 | ||
| 83882-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83883-20560 |
AT21#,CT21#,ST215 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-44010 |
AT21#,ST215 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83970-12020 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
AT21#,CT21#,ST21# |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||

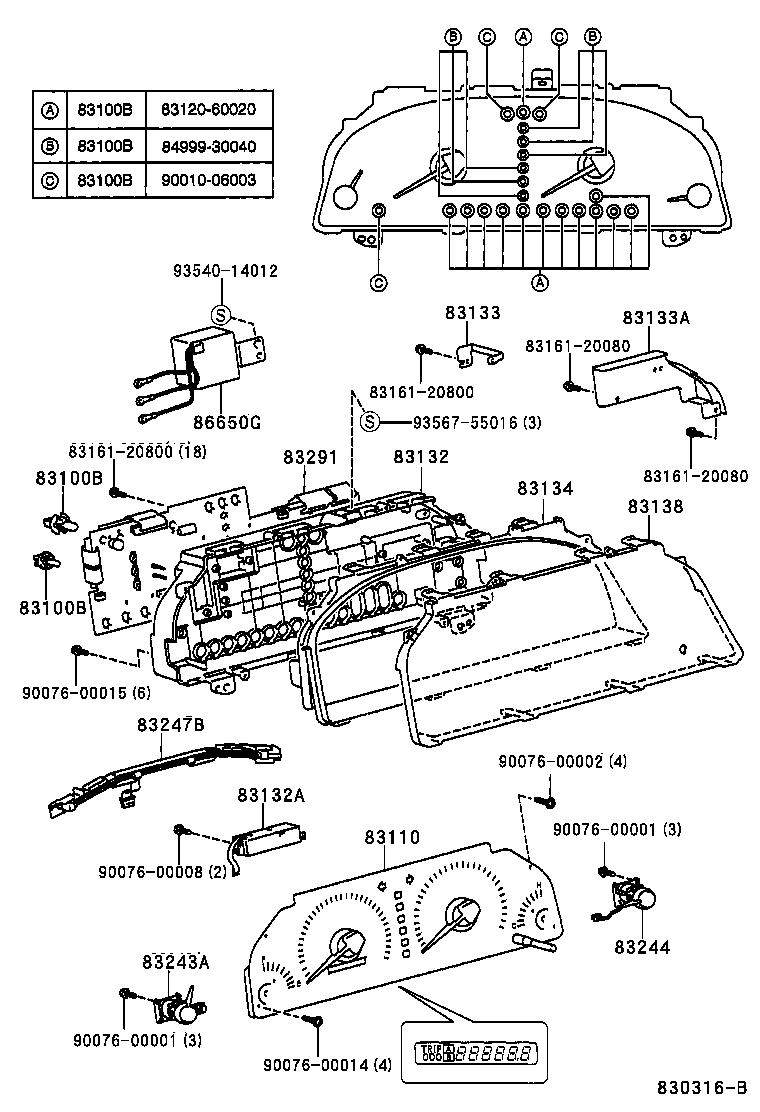

ILLUST NO. 1 OF 2(9712- )
ｵﾌﾟﾃｲﾄﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90076-04004 |
AT21#,CT21#,ST21# 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-24030 |
AT21#,CT21#,ST21# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 83119-20040 |
AT21#,CT21#,ST21# 12V 3.0W |
1 | ||
| 83120-60020 |
AT21#,CT211,ST215..ATM 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90981-11018 |
AT21#,ST215..ATM 12V 1.2W ｿｹｯﾄ無し |
22 | ||
| 90010-06006 |
AT21#,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 90010-06003 |
ST215..ATM;AT21#,CT21# 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20030 |
AT21#,CT21#,ST21# |
1 | ||
| 83220-20160 |
AT21#,CT21#,ST215 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20560 |
AT21#,CT21#,ST215 |
1 | ||
| 83841-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 83821-20140 |
AT21#,CT210,ST21#..ATM |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20560 |
AT21#,CT211 |
1 | ||
| 83882-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20130 |
AT21#,CT21#,ST21# |
1 | ||
| 83883-20560 |
AT21#,CT21#,ST215 |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
AT21#,CT21#,ST21# |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90076-00008 | ||||
| 90076-00014 | ||||
| 90076-00015 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST21# |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST21# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST21# |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST21# |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
AT21#,CT21#,ST21# 14V 1.12W |
1 | ||
| Common parts | ||||
| 93567-15016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
