AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

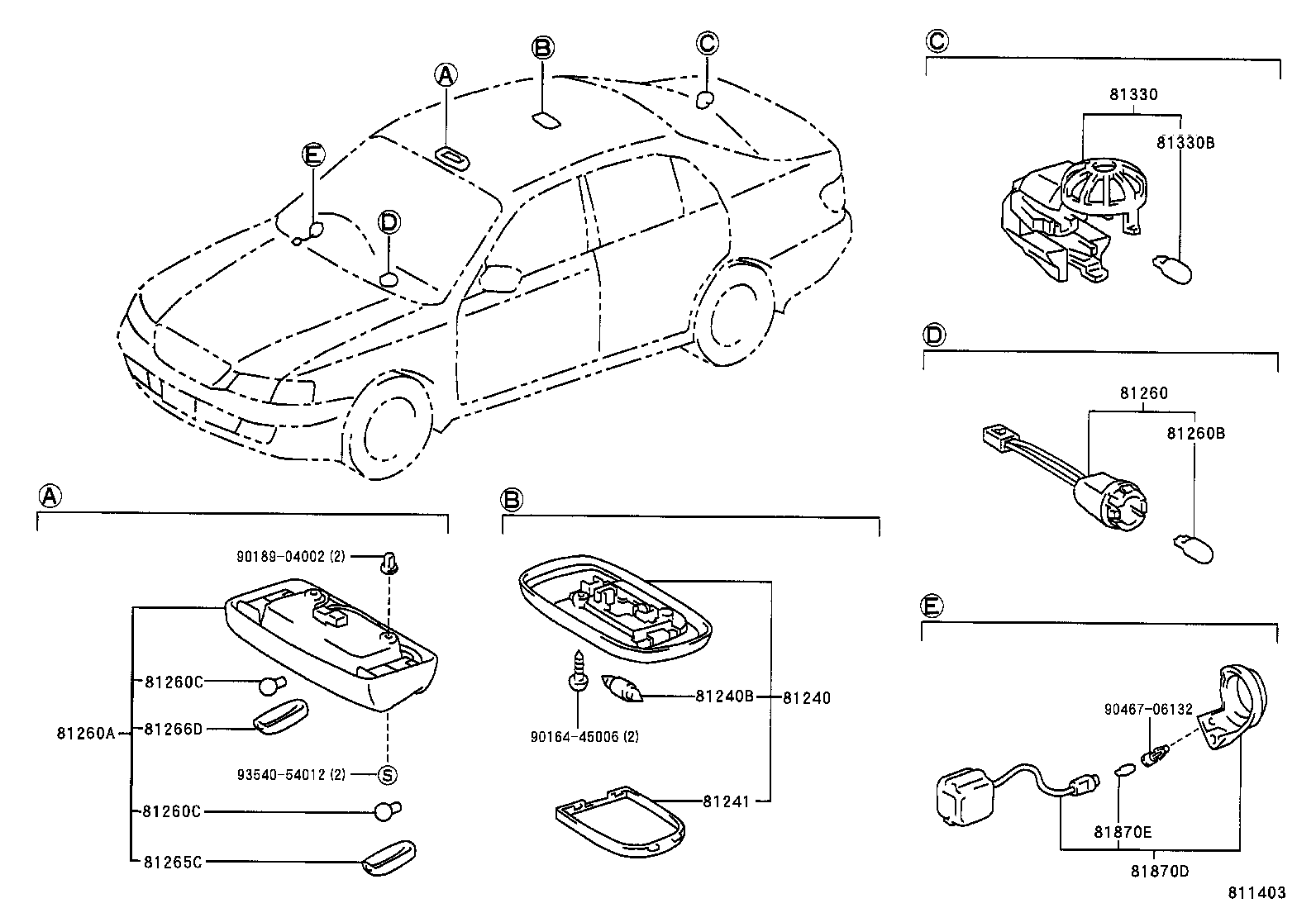

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260 81260A 81260B 81260C 81260C 81265C 81266D 81330 81330B 81870D 81870E 9016445006 9018904002 9046706132 9354054012
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12060E1

AT21#,CT21#,ST21#

LT.ANTELOPE,TRIM4#

 1
81240-12060B3

AT21#,CT21#,ST21#

LT.GRAY,TRIM1#

 1
81240-12060B3

AT21#,CT21#,ST21#..EFI,TD

LT.GRAY,TRIM1#

 1
81240-12060B6

AT21#,CT21#,ST21#

MD.CHARCOAL,TRIM17

 1
81240-12060B3

AT21#,CT21#,ST21#

LT.GRAY,TRIM11

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AT21#,CT21#,ST21#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AT21#,CT21#,ST21#

 1
81260A - LAMP ASSY, MAP
81260-20260B4

AT210

MD.CHARCOAL,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12020

AT21#,ST21#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12020

AT21#,ST21#

12V 8W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

AT21#,CT21#,ST21#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AT21#,CT21#,ST21#

12V 3.8W

 1
Common parts
90164-45006
90189-04002
90467-06132
93540-54012
